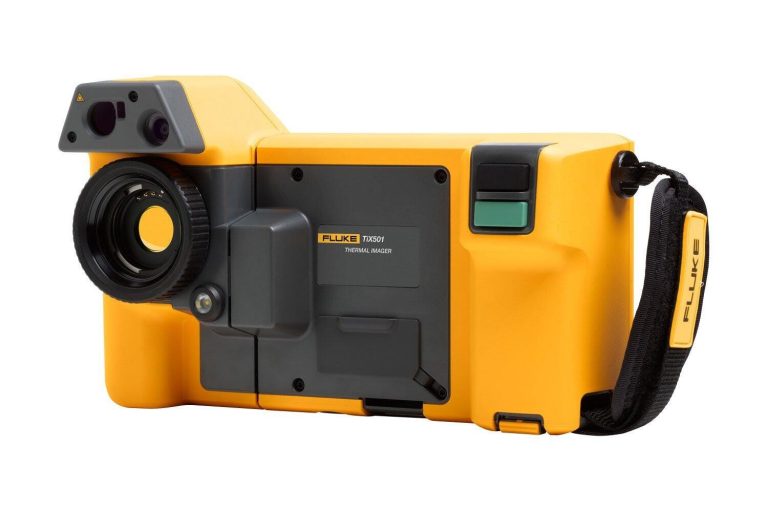

Fluke TiX501 Thermal Camera

The Fluke TiX501 Thermal Camera is a powerful tool for technicians and engineers, offering advanced thermal imaging capabilities and a range of features to enhance image quality and measurement accuracy.

With its high-resolution 640 x 480 infrared sensor and SuperResolution technology, the Fluke TiX501 provides detailed thermal images with a spatial resolution of 0.93 mRad and a D:S ratio of 1065:1.

Fluke TiX501 Key Features

The Fluke TiX501 features a range of advanced technologies, including LaserSharp Auto Focus, Laser distance meter, and IR-Fusion technology, which adds the context of visible details to infrared images.

• Infrared resolution: 640 x 480 (307,200 pixels)
• SuperResolution: No
• IFOV with standard lens (spatial resolution): 0.93 mRad, D:S 1065:1
• Field of view: 34 °H x 24 °V
• Minimum focus distance: 15 cm (approx. 6 in)
• LaserSharp Auto Focus: Yes, for consistently in-focus images. Every. Single. Time.
• Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen
• Advanced manual focus: Yes
• Wireless connectivity: Yes, to PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi to LAN (where available)
• Fluke Connect app compatible: Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
• Fluke Connect Assets: Future**, Automatically assign images to assets, easily compare measurement types in one location and create reports through a cloud-based system.
• Fluke Connect instant cloud upload: Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
• Fluke Connect instant server upload: Yes**
• IR-Fusion technology: Yes, adds the context of the visible details to your infrared image

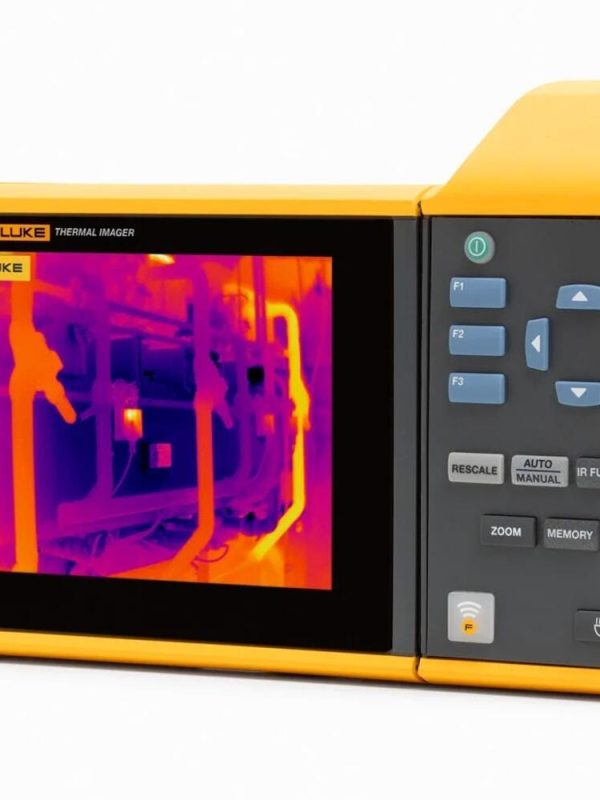

• Ruggedized touchscreen display: 5.7 inch (14.4 cm) landscape, 640 x 480 LCD
• Ergonomic design: 240° rotatable (articulating) lens
• Thermal sensitivity (NETD): ≤0.075 °C at 30 °C target temp (75 mK)
• Level and span: Smooth auto and manual scaling
• Touchscreen adjustable level/span: Yes. Span and level can be easily and quickly set by simply touching the screen
• Fast auto toggle between manual and auto modes: Yes
• Fast auto-rescale in manual mode: Yes
• Minimum span (in manual mode): 2.0 °C (3.6 °F)
• Minimum span (in auto mode): 3.0 °C (5.4 °F)
• Built-in digital camera (visible light): 5 MP
• Frame rate: 60 Hz or 9 Hz versions
• Laser pointer: Yes
• LED light (torch): Yes
• Digital zoom: 2x

Who Needs the Fluke TiX501?

The Fluke TiX501 is designed for technicians and engineers who require advanced thermal imaging capabilities and a range of features to enhance image quality and measurement accuracy.

Whether you’re working in a manufacturing environment, a power plant, or a building services setting, the Fluke TiX501 is the perfect tool for identifying and troubleshooting thermal issues.

Fluke TiX501 Applications

• Building diagnostics: Identify thermal issues in buildings and diagnose problems with heating and cooling systems.
• Electrical testing: Use the Fluke TiX501 to detect electrical faults and identify overheating components.
• Industrial maintenance: Perform routine maintenance tasks and identify potential issues before they become major problems.
• Power plant maintenance: Use the Fluke TiX501 to detect thermal issues in power plant equipment and identify potential problems.
• Thermal imaging surveys: Conduct thermal imaging surveys to identify thermal issues in buildings and diagnose problems with heating and cooling systems.

Why Buy Fluke TiX501 from MME?

At MME, we offer the Fluke TiX501 Thermal Camera at competitive prices, with fast shipping and excellent customer service.

Our team of experts is always available to provide technical support and answer any questions you may have about the Fluke TiX501.

Fluke TiX501 Specifications
