Description

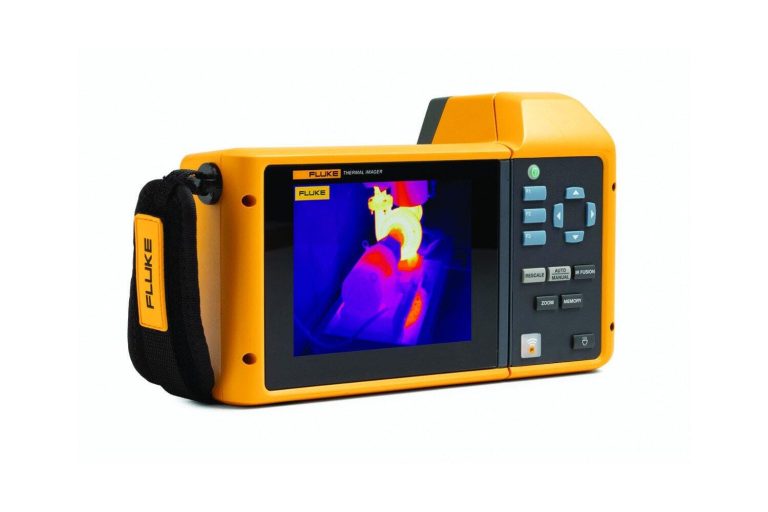

The Fluke TiX580 Infrared Camera is a powerful diagnostic tool designed for technicians and engineers who require accurate temperature measurements in various applications.

With its high-resolution camera and advanced features, the Fluke TiX580 enables users to detect temperature anomalies, identify hotspots, and optimize system performance.

Fluke TiX580 Key Features

The Fluke TiX580 Infrared Camera boasts a range of advanced features, including a 60 Hz or 9 Hz frame rate, laser pointer, and LED light for enhanced visibility.

Frame rate: 60 Hz or 9 Hz
Laser pointer: Yes
LED light: Yes
Color alarms: High temperature, low temperature, and isotherms
Center-point temperature measurement: Yes
Spot temperature: Hot and cold spot markers
User-definable spot markers: 3 user-definable spot markers
Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band: 7.5 μm to 14 μm (long wave)

Who Needs the Fluke TiX580?

The Fluke TiX580 Infrared Camera is designed for technicians and engineers who require accurate temperature measurements in various applications, including industrial, commercial, and residential settings.

With its advanced features and user-friendly interface, the Fluke TiX580 enables users to detect temperature anomalies, identify hotspots, and optimize system performance.

Fluke TiX580 Applications

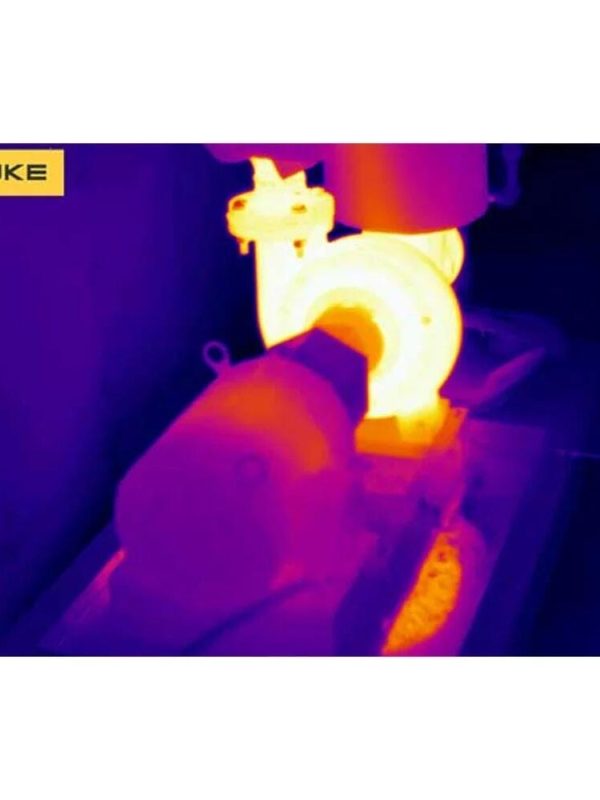

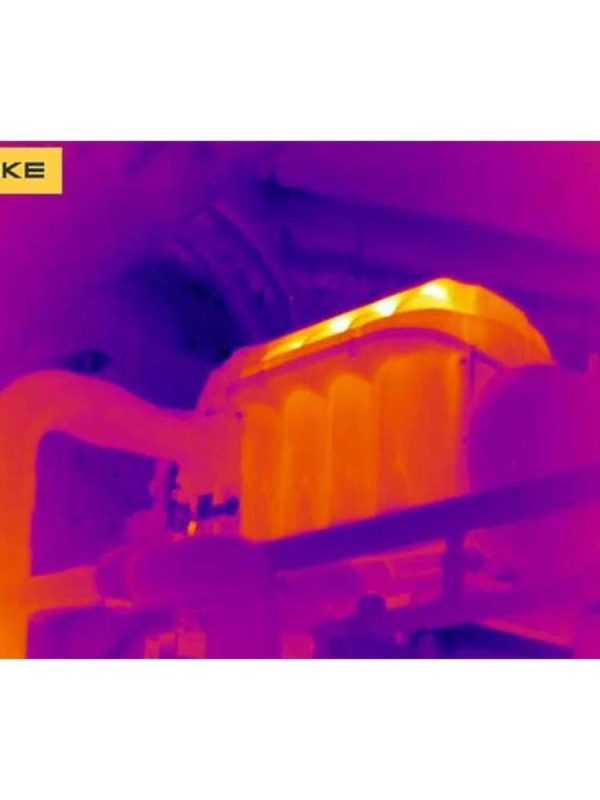

Industrial applications: Detect temperature anomalies in machinery and equipment
Commercial applications: Identify hotspots in buildings and optimize HVAC system performance
Residential applications: Detect temperature anomalies in homes and optimize heating and cooling system performance
Electrical applications: Detect temperature anomalies in electrical panels and optimize system performance
Mechanical applications: Detect temperature anomalies in mechanical systems and optimize performance

Why Buy Fluke TiX580 from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke TiX580 Infrared Camera at competitive prices, along with exceptional customer service and support.

Our team of experts is dedicated to providing you with the best possible solution for your temperature measurement needs.

Fluke TiX580 Specifications

General specifications
Frame rate	60 Hz or 9 Hz versions
Laser pointer	Yes
LED light (torch)	Yes
Color alarms (temperature alarms)	High temperature, low temperature, and isotherms (within range)
Center-point temperature measurement	Yes
Spot temperature	Hot and cold spot markers
User-definable spot markers	3 user-definable spot markers
Center box	Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band	7.5 μm to 14 μm (long wave)
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity	10% to 95% non-condensing
Safety	IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility	IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM	IEC 61326-1
US FCC	CFR 47, Part 15 Subpart B
Vibration	0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
Shock	25 g, IEC 60068-2-29
Drop	25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens
Size (H x W x L)	27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)
Weight (battery included)	1.54 kg (3.4 lb)
Enclosure rating	IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
