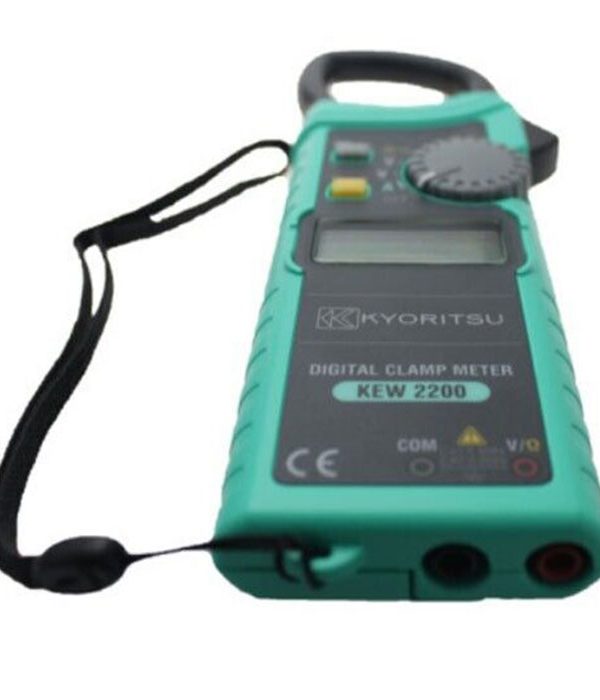

Kyoritsu 2200 Digital Clamp Meter

kyoritsu clamp meter 2200

The Kyoritsu 2200 digital clamp meter is an average-sensing, auto-ranging multimeter used in electrical testing applications to measure current, voltage, and resistance. Alternating current (AC) is measured with a clamp that can handle up to 1,000A (amperes). To monitor current without touching or breaking the circuit, the clamp includes two jaws that can close around an electrical conductor up to 33mm (1.3 inches) in diameter.

The jaws are 10mm thick (or 0.39 inches thick) to provide for a tight fit between conductors. A set of test leads is provided for measuring resistance to 40M (megohms) and AC and DC (direct current) voltage up to 600V. The meter contains a 4,199-count LCD and a rotary switch for choosing the property to measure.

The data hold function preserves the most recent reading on the display after the circuit is disconnected to help with the documentation of readings and catch readings in small places. Electricity is conducted by the circuit, as shown by a continuity buzzer. Two 1.5V AAA batteries are required for operation, and the device automatically shuts off after 10 minutes of inactivity to preserve battery life. When the battery has to be replaced, it has a low-battery indicator.

Kyoritsu 2200 Digital Clamp Meter Specifications :

• AC A: 40.00/400.0/1000A (Auto-ranging)
  ±1.4%rdg±6dgt (50/60Hz)
  ±1.6%rdg±6dgt (45 – 65Hz)
• AC V: 4.000/40.00/400.0/600V (Auto-ranging)
  ±1.8%rdg±7dgt (45 – 65Hz)
  ±2.3%rdg±8dgt (65 – 500Hz)
• DC V : 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
  ±1.0%rdg±3dgt (*1)
• Ω : 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
  ±2.0%rdg±4dgt (0 – 400kΩ)
  ±4.0%rdg±4dgt (4MΩ)
  ±8.0%rdg±4dgt (40MΩ)
• Conductor size: Ø33mm max
• Power source : R03/LR03 (AAA) (1.5V) × 2
  *continuous measuring time:
  approx. 350 hours (Auto power off: approx. 10 minutes)
• Dimensions : 190(L) × 68(W) × 20(D)mm
• Weight: Approx. 120g (including batteries)
