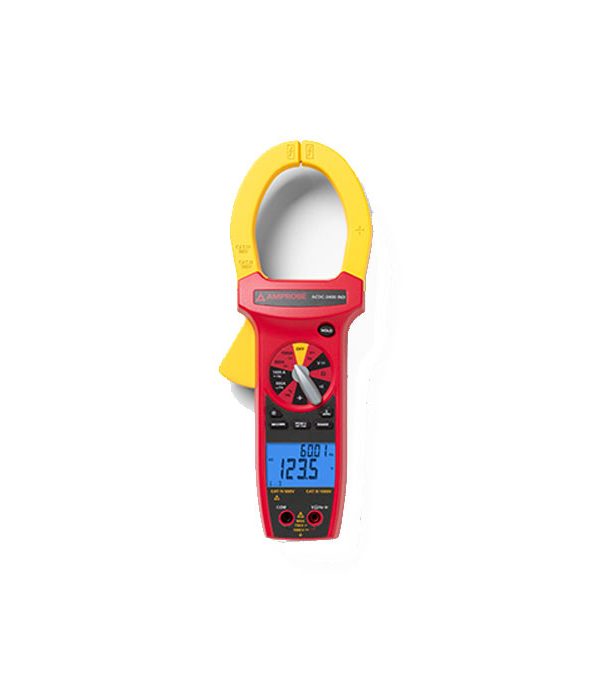

Amprobe ACDC 3400 IND

The Amprobe ACDC-3400 IND AC/DC CAT IV TRMS Clamp Meter is a sophisticated and reliable tool designed for professionals in various electrical fields, particularly in industrial and utility applications. This clamp meter is notable for its True RMS capability, which ensures accurate measurements even in complex electrical environments with non-sinusoidal waveforms.

Design and Build Quality

The Amprobe ACDC-3400 IND features a robust construction that meets the CAT IV safety rating, allowing it to be used in high-voltage scenarios. Its extra-large jaws can accommodate conductors up to 2 inches (51 mm) in diameter, making it versatile for various wire sizes. The ergonomic design enhances user comfort, especially during prolonged use, and the meter’s durable casing is built to withstand the rigors of everyday professional use.

Measurement Capabilities

This clamp meter is designed to measure both AC and DC currents, providing a comprehensive solution for electrical testing. It can handle high current measurements, making it suitable for heavy-duty applications. The inclusion of True RMS technology means that users can rely on accurate readings regardless of the waveform shape, which is crucial in modern electrical systems where loads may not always be purely sinusoidal.

Applications

The Amprobe ACDC-3400 IND is particularly beneficial for industrial electricians, HVAC technicians, and utility workers who require a dependable tool for monitoring electrical systems. Its ability to measure a wide range of electrical parameters makes it a valuable asset for troubleshooting, maintenance, and installation tasks.

Datasheet

Specifications

DC Volts	Ranges	Accuracy
	660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V	± (0.5% rdg + 2 dgts)
Input impedance	660 mV: >100 MΩ; 6.6 V:10 MΩ; 66 V to 1000 V: 9.1 MΩ
Overload protection	1000 VDC or 750 VAC rms
AC Volts True RMS	Ranges	Frequency
	660.0 mV	50 to 100 Hz
	6.600V, 66.00V	50 to 500 Hz
	660.0V, 750V	50 to 500 Hz
	Frequency*	50 to 1 kHz
	* Frequency: 10% to 100% of voltage range
Peak Hold	Ranges	Frequency
	66.00V, 660.0V, 750V	50 to 500 Hz
AC coupled TRMS	5% to 100% of range
Crest factor	≤ 3
Input impedance	660 mV: >100 MΩ; 6.6 V:10 MΩ; 66 V to 750 V: 9.1 MΩ
Overload protection	1000 VDC or 750 VAC rms
AC Current True RMS	Ranges	Frequency
	660.0A	50 to 60 Hz
	660.0A	61 to 400 Hz
	1000 A	50 to 60 Hz
	1000 A	61 to 400 Hz
	Frequency*	50 to 1kHz
	* Frequency: 10% to 100% of current range
Peak Hold	Ranges	Frequency
	660.0A, 1000	50 to 400 Hz
AC coupled TRMS	5% to 100% of range
Crest factor	≤ 3
Overload protection	1000A AC
DC Current	Range	Accuracy
	660.0A	± (2.0% rdg + 5 dgts)
	1000A	± (3.0% rdg + 5 dgts)
Overload protection	1000A DC
Resistance	Range	Accuracy
	660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ	± (1.0% rdg + 5 dgts)
	6.600MΩ	± (2.0% rdg + 5 dgts)
	66.00MΩ	± (3.5% rdg + 5 dgts)
Open circuit volts	-0.8 Vdc typical , (-1.2 Vdc on 660 Ω range)
Overload protection	1000 VDC or 750 VAC rms
Capacitance	Range	Accuracy
	6.600nF, 66.00nF	±(3.0% rdg + 20 dgts)
	660.0nF, 6.600µF, 66.00µF,660.0µF	±(3.0% rdg + 10 dgts)
	6.6 mF	±(5.0% rdg + 10 dgts)
Overload protection	1000 VDC or 750 VAC rms
Diode Test
Test current	1.0 mA (approximate)
Accuracy	± (1.5% rdg + 5 dgts)
Open circuit volts	3.2 Vdc typical
Audible indication	< 0.25 V
Overload protection	1000 VDC or 750 VAC rms
Continuity
Ranges	660.0 Ω
Audible indication	≤ 30 Ω
Response time	500 ms
Overload protection	1000 VDC or 750 VAC rms
Frequency (Auto ranging)	Range	Accuracy
	66.00 Hz, 660.0 Hz, 6.600k Hz, 66.00 kHz, 660.0 kHz, 1.000 MHz	± (0.1% rdg + 3 dgts)
Sensitivity	10 Hz to 1 MHz: > 3.5 V rms
Minimum pulse Width	>1 us
% Duty Cycle
Range	5.0 % to 95.0 %
Resolution:	0.10%
Minimum Pulse Width	>10 us
Frequency range	40 Hz to 20 kHz
Accuracy ( 5V logic )	± (2% rdg + 10 dgts)
Overload protection	1000 VDC or 750 VAC rms

Display	3¾ digit liquid crystal display (LCD) (6600 counts) with a 66-segment analog bar-graph
Polarity	Automatic, positive implied, negative polarity indication
Over range	(OL) or (-OL) is displayed
Zero	Automatic
Low battery indication	“?” is displayed when the battery voltage drops below the operating level
Auto power off	Approx. 30 minutes
Backlight	Backlight auto-off approx. 60 sec.
Measurement rate	2.8 times per second, nominal
Analog bar-graph	28 times per second
Operating environment	0°C to 50°C (32°F to 122°F) at < 70% R.H.
Storage temperature	-20°C to 60°C (-4°F to 140°F) at < 80% R.H. with battery removed from meter
Temperature Coefficient	0.1 × (specified accuracy) per °C. (0°C to 18°C, 28°C to 50°C)
Environmental	2000m (6561.7 Feet), Indoor use
Jaw opening capability	57 mm (2.0 in) conductor
Power	Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery life	Typically 75 hours with carbon-zinc; 150 hour with alkaline
Dimensions	283 x 105 x 50 mm (11.1 x 4 x 2.1 in.)
Weight	559 gm (1.23 lb.)
Safety	LVD Meets EN61010-1:2001 and EN61010-2-032:2002, CAT III 1000V, CAT IV 600V, class II and pollution degree 2
EMC	EN 61326-1:2006 This product complies with requirements of the following European Community Directives: 2004/108/EC (Electromagnetic Compatibility) and 2006/95/EC (Low Voltage) as amended by 93/68/EEC (CE Marking). However, electrical noise or intense electromagnetic fields in the vicinity of the equipment may disturb the measurement circuit. Measuring instruments will also respond to unwanted signals that may be present within the measurement circuit. Users should exercise care and take appropriate precautions to avoid misleading results when making measurements in the presence of electronic interference.

Amprobe ACDC-3400 IND AC/DC CAT IV TRMS Clamp Meter
