Pressure Gauge

Pressure gauges are indispensable tools across various industries, ensuring equipment operates safely and efficiently by monitoring fluid pressure. Understanding how these devices work, their types and proper maintenance can significantly impact system performance and safety. Here’s everything you need to know about pressure gauges.

What is a Pressure Gauge?

A pressure gauge is an instrument used to measure the pressure of a fluid (liquid or gas) within an enclosed system. It typically features a dial, a pointer, and a scale that displays the pressure in units like psi (pounds per square inch), bar, or Pascal.

Historical Development

Pressure gauges have evolved significantly since their invention in the 19th century, with the Bourdon tube pressure gauge being one of the first and most influential designs introduced by Eugene Bourdon in 1849.

Types of Pressure Gauges

Bourdon Tube Pressure Gauges

Bourdon tube pressure gauges are mechanical instruments used to measure pressure in various applications. They operate based on the deformation of a curved tube when exposed to pressure, which is then translated into a readable value on a dial. Here’s a detailed look at Bourdon tube pressure gauges:

Components and Working Principles

1. Bourdon Tube: The core component, typically made of brass, bronze, or stainless steel, is a curved, hollow tube that is closed at one end and connected to the pressure source at the other end. The tube can be C-shaped, helical, or spiral.
2. Movement Mechanism: Converts the deformation of the Bourdon tube into a rotational movement. This mechanism typically involves a linkage and a gear train.
3. Pointer and Dial: The rotational movement is transferred to a pointer that moves across a calibrated dial, indicating the pressure reading.

Digital Pressure Gauges

Digital pressure gauges are instruments used to measure and display pressure in a variety of systems. They convert the physical pressure measurement into an electronic signal, which is then displayed on a digital readout.

Components and Working Principles

1. Sensor: The core of a digital pressure gauge is the pressure sensor, which can be based on different technologies:
   • Piezoelectric: Measures changes in resistance caused by pressure.
   • Capacitive: Measures changes in capacitance.
   • Strain Gauge: Measures the deformation (strain) of a material under pressure.
2. Microprocessor: Processes the electronic signal from the sensor. It may also compensate for temperature changes and other variables to ensure accurate readings.
3. Display: Typically an LCD or LED screen that shows the pressure reading in units such as PSI, bar, kPa, etc.
4. Power Source: Can be battery-powered or connected to an external power source.
5. Housing: Protects the internal components and is often rugged to withstand harsh environments.

Diaphragm Pressure Gauges

Diaphragm pressure gauges are mechanical instruments used to measure pressure, particularly in applications where measuring corrosive, viscous, or heterogeneous fluids is necessary. These gauges use a diaphragm, a flexible membrane, to sense pressure changes. Here’s an in-depth overview of diaphragm pressure gauges:

Components and Working Principles

1. Diaphragm: The core component, typically made of materials like stainless steel, rubber, or other elastomers, is a flexible membrane that deflects in response to pressure changes.
2. Housing: Encloses the diaphragm and protects the internal components. It is often made of materials compatible with the fluid being measured.
3. Transmission Mechanism: Transfers the deflection of the diaphragm to the pointer. This often involves a mechanical linkage or a hydraulic fluid-filled chamber.
4. Pointer and Dial: The movement is displayed on a calibrated dial through a pointer, showing the pressure reading.

Manometer

A manometer is an instrument used to measure the pressure of a gas or liquid. It typically consists of a U-shaped tube filled with a liquid (often mercury or water), where the difference in the liquid levels in the two arms of the tube indicates the pressure.

How Pressure Gauges Work

Pressure gauges are crucial tools for monitoring the pressure levels of fluids (liquids or gases) within an enclosed system. Understanding how these devices work can help you appreciate their importance in various applications, from industrial machinery to household systems. Here’s a detailed look at the workings of a pressure gauge:

Mechanical Operation

Most mechanical pressure gauges operate based on a simple principle: they convert the physical pressure of a fluid into a mechanical movement, which is then displayed as a reading on a scale. Here are the common components and their functions:

1. Sensing Element: This is the part of the gauge that first comes into contact with the pressure of the fluid. Common types of sensing elements include:
   • Bourdon Tube: A curved tube that straightens when pressure is applied. This is the most common mechanism used in mechanical gauges.
   • Diaphragm or Capsule: A flexible membrane that expands or contracts with pressure changes. This type is suitable for lower pressure ranges.
2. Linkage and Movement: The movement of the sensing element (such as the straightening of a Bourdon tube) is transferred to a linkage mechanism. This linkage magnifies the movement and transfers it to a pointer, which moves over a calibrated scale to indicate the pressure.
3. Dial and Pointer: The dial is marked with units of pressure measurement (like psi, bar, or Pascal). The pointer moves across this dial to show the pressure level based on the movement transmitted from the sensing element.

Digital Operation

Digital pressure gauges, on the other hand, use electronic components to measure and display pressure:

1. Pressure Sensor: A pressure-sensitive element like a strain gauge, piezoelectric sensor, or capacitive sensor detects the pressure. The physical pressure changes are converted into electrical signals.
2. Processor and Display: The electrical signal from the sensor is processed by a microprocessor that calculates the pressure. The pressure reading is then digitally displayed on an LCD or LED screen.

Factors Influencing Accuracy

Several external factors can influence the accuracy of pressure gauges, including:

• Temperature: Temperature changes can affect the elasticity of the sensing element and the viscosity of the fluid.
• Vibration: Mechanical gauges, in particular, are susceptible to inaccuracies in environments with high vibration unless specially designed to handle such conditions.
• Altitude: The atmospheric pressure at different altitudes can impact the readings, especially in sensitive applications.

Calibration

To ensure accuracy, pressure gauges need to be calibrated regularly. Calibration involves comparing the readings of the gauge with a standard pressure gauge that has known accuracy. This process helps identify any discrepancies and adjust the gauge to return it to its correct reading.

Understanding how pressure gauges work not only helps in selecting the right gauge for specific applications but also in maintaining them properly to ensure they provide accurate and reliable readings over time.

Fluke Pressure Gauges: Unrivaled Accuracy and Durability

A Fluke pressure gauge is the epitome of precision and reliability, designed to meet the rigorous demands of industrial and laboratory applications. Focusing on the Fluke 700G series, these tools stand out for their accuracy, rugged construction, and ease of use. Fluke offers a range of digital pressure gauges and calibrators to suit every need, whether you need a straightforward pressure measurement or a comprehensive calibration solution.

Fluke Digital Pressure Gauge Excellence

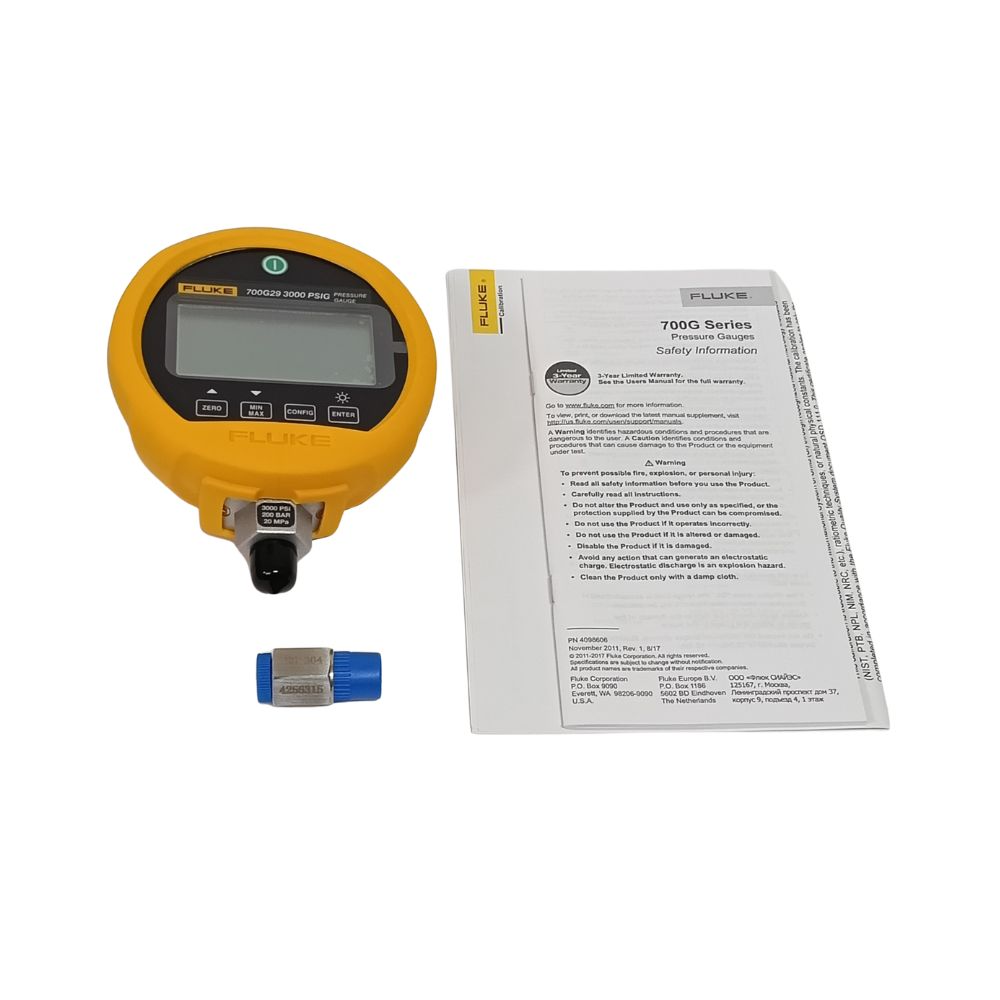

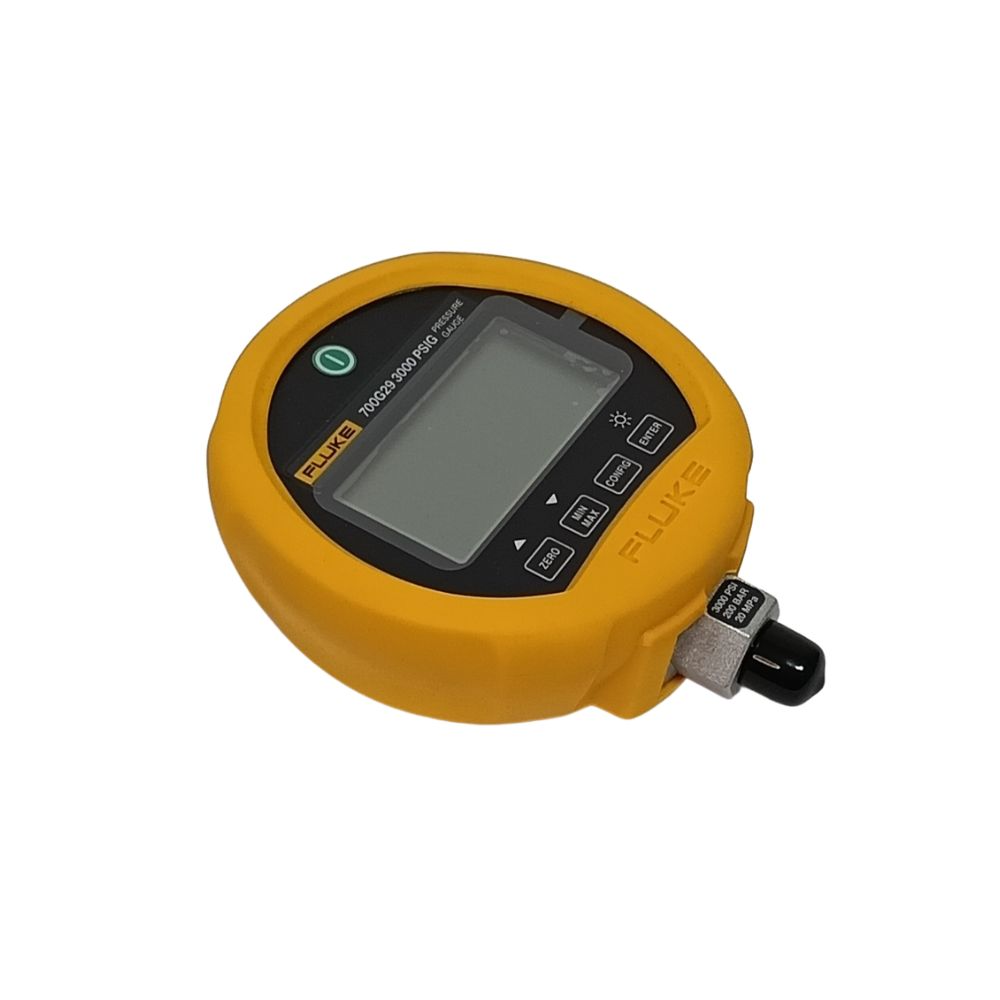

The Fluke pressure gauge lineup, including the acclaimed 700G series, is engineered for performance. These gauges, like Fluke 700 G 30, are known for their high accuracy and ability to withstand tough industrial environments. The digital interface provides precise, immediate readings, reducing the chance of errors and enhancing efficiency in pressure testing and calibration tasks.

Innovative Features of Fluke Pressure Gauges

• High Accuracy: Fluke pressure gauges are synonymous with precision. Instruments like the Fluke 700 G31 series offer accuracy levels that ensure reliable measurements for critical processes, making them the go-to choice for professionals who cannot afford discrepancies.
• Rugged Design: Fluke gauges have robust casings that protect the instrument from dust, water, and impact, ensuring longevity and consistent performance even in challenging conditions.
• Ease of Use: The Fluke pressure gauge is user-friendly, with intuitive interfaces and clear displays. Features like backlit screens and simple navigation menus make these instruments accessible to seasoned technicians and field newcomers.
• Versatility: The 700G series offers a broad range of models, including Fluke 700 G 10 and Fluke 700 G 29, each tailored to specific pressure ranges and applications. From low-pressure vacuum measurements with the Fluke 700 G08 to high-pressure applications with the Fluke 700 G31, there’s a Fluke gauge for virtually every requirement.
• Connectivity and Data Logging: Some models, like the Fluke 700 G 30 in the Fluke range, offer advanced connectivity options, including data logging capabilities that allow for the recording and analyzing of measurements over time. This feature is invaluable for maintaining compliance and optimizing processes.

Fluke Vacuum Gauge Precision

Understanding the importance of vacuum measurements in specific applications, Fluke also offers vacuum gauges designed with the same attention to detail and quality as their pressure counterparts. These gauges provide accurate vacuum readings, essential for industries where vacuum conditions must be precisely monitored and maintained.

The Fluke 700G Series: A Closer Look

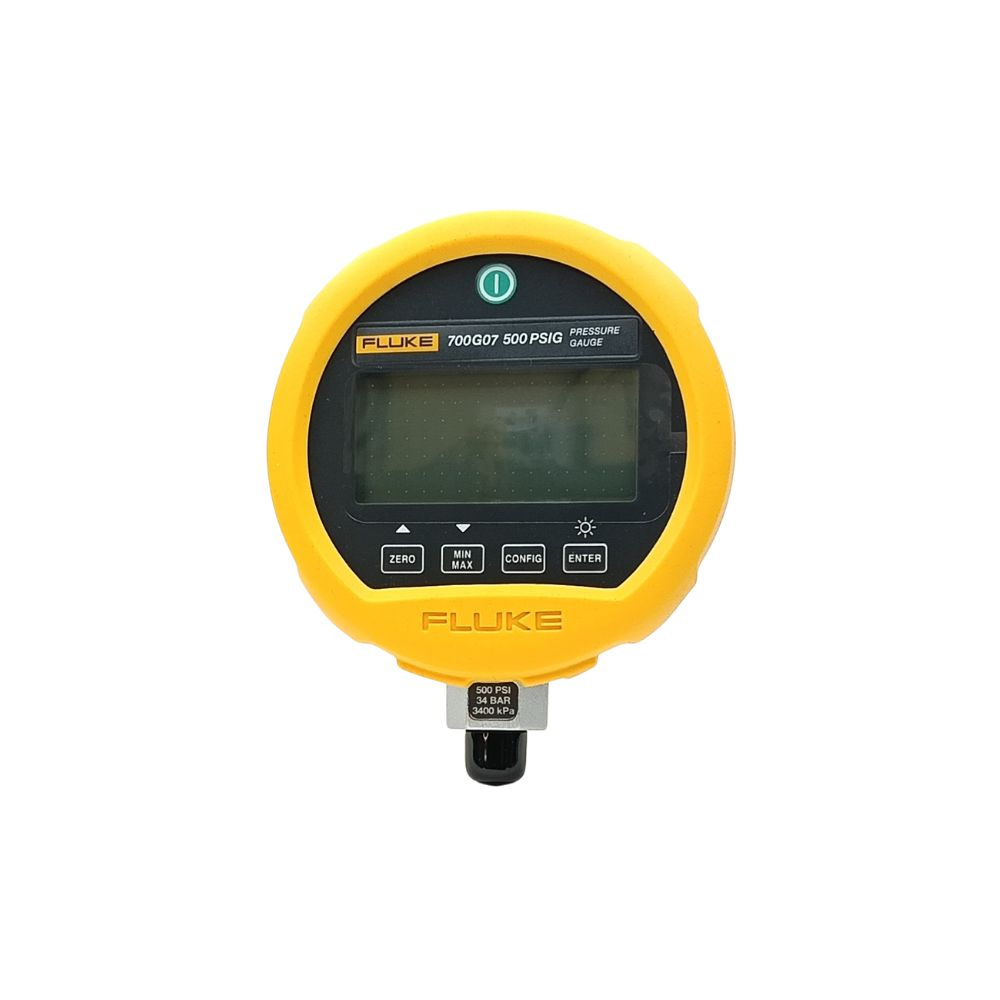

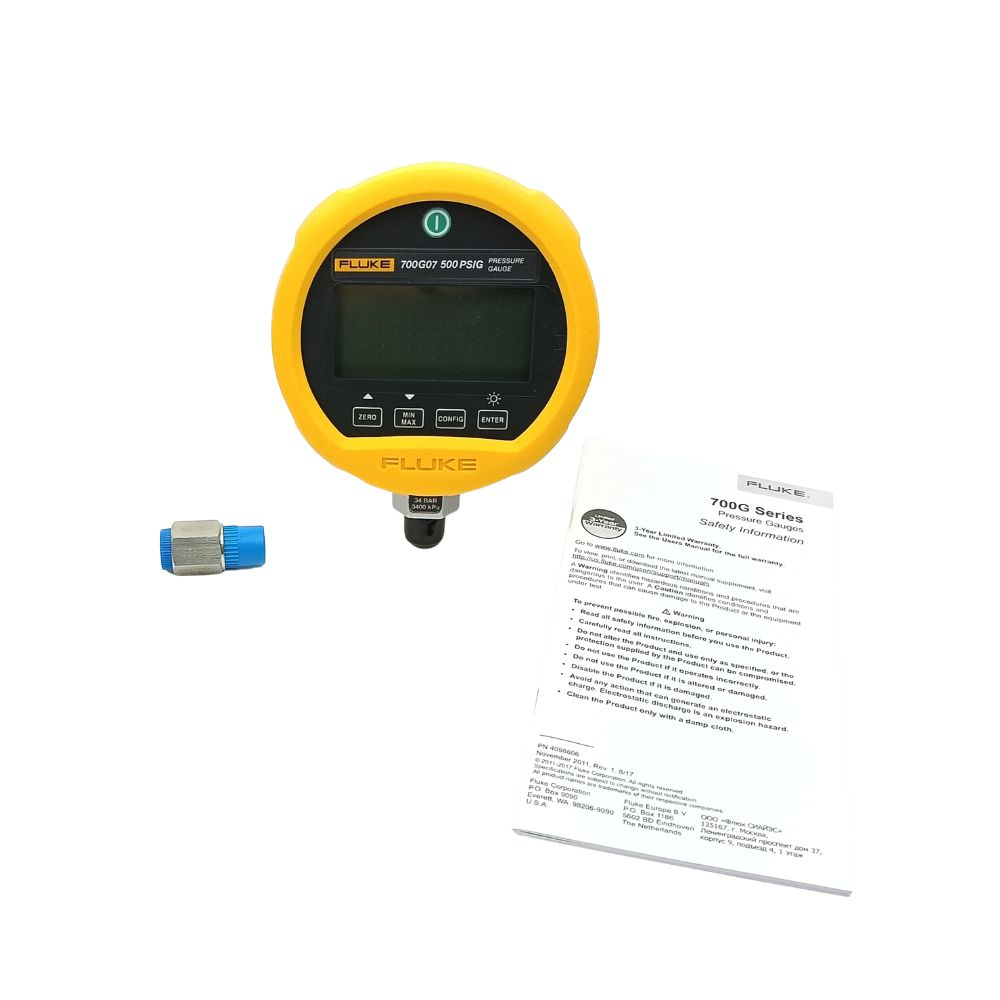

• Fluke 700 G: The cornerstone of the series, offering a wide range of pressure measurements with robust construction, making it suitable for field and laboratory use.
• Fluke 700 G31: This model is tailored for high-pressure applications, delivering precise measurements even in the most demanding environments.

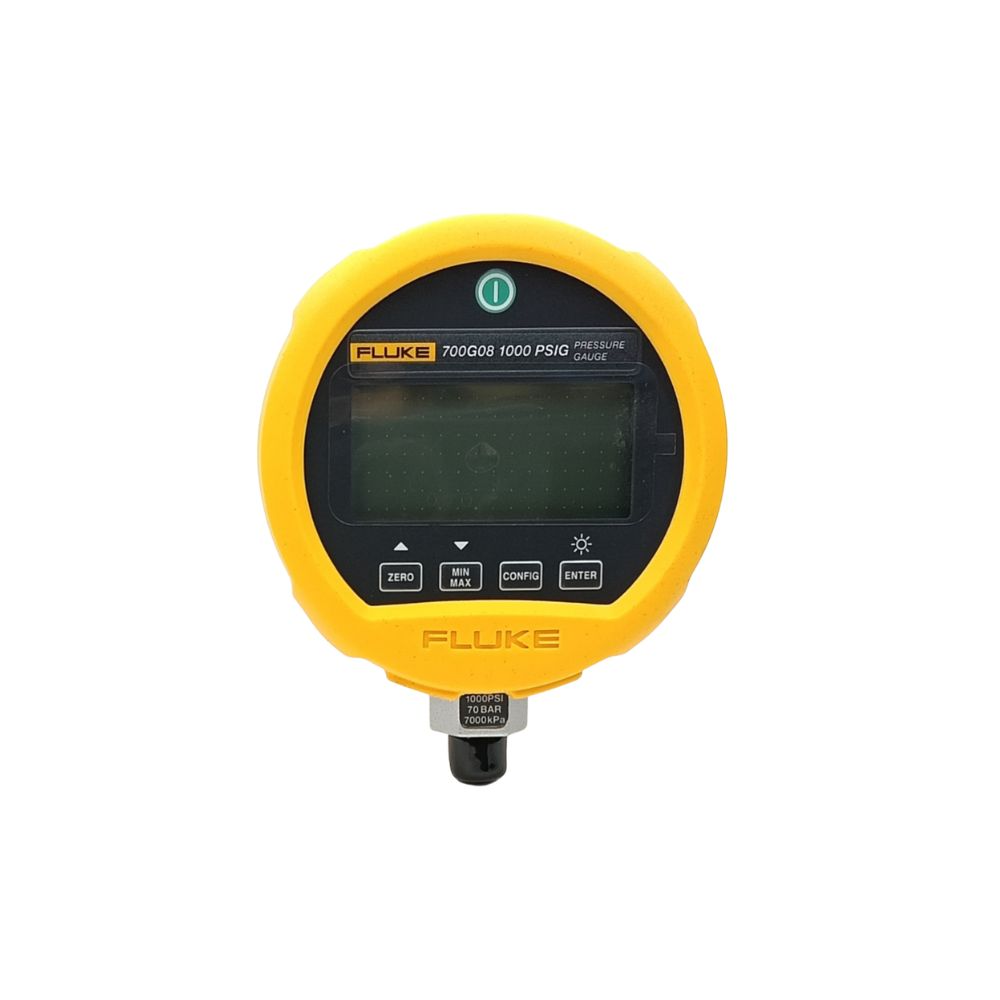

• Fluke 700 G08: Ideal for lower-pressure applications, the 700 G08 provides the same level of accuracy and reliability as its high-pressure counterparts.
• 700G27 Fluke: A mid-range model that balances performance with versatility, suitable for a variety of industrial applications.

Fluke 700 G Pressure Gauge Calibrator

The Fluke 700G Pressure Gauge Calibrator models offer an all-in-one solution for professionals requiring both a pressure gauge and a calibrator. These devices accurately measure pressure and calibrate pressure instruments, ensuring they meet all industry standards and regulations.

Why Choose Fluke Pressure Gauges?

Choosing a Fluke pressure gauge means opting for a tool that delivers accurate readings and stands the test of time. The 700 G series, in particular, is designed with the user in mind, featuring easy-to-navigate menus, robust casings, and compatibility with a wide range of Fluke accessories and software for data logging and analysis.
