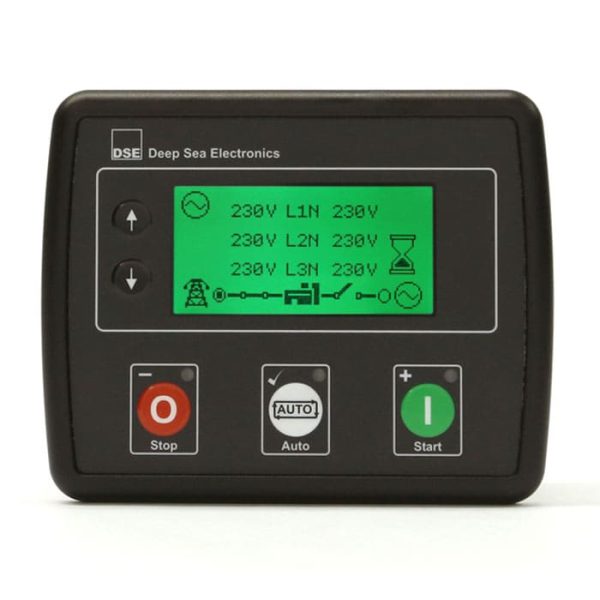

DEEPSEA DSE4620 Auto Mains Failure Control Modules

DEEPSEA DSE4620 Auto Mains Failure Control Modules

The DSE4620 is a compact automatic power failure monitoring module that has been developed to provide an exceptional range of features in a compact package.

DEEPSEA DSE4620 Auto Mains Failure Control Modules Specifications:

• CONTINUOUS VOLTAGE RATING:8 V to 35 V Continuous
• MAXIMUM OPERATING CURRENT:85 mA at 12 V, 96 mA at 24 V
• FREQUENCY RANGE:3.5 Hz to 75 Hz
• AUXILIARY OUTPUTS C & D:2 A DC at supply voltage
• AUXILIARY OUTPUTS E & F DSE4620:2 A DC at supply voltage
• VOLTAGE RANGE:15 V to 415 V AC
• FREQUENCY RANGE:3.5 Hz to 75 Hz
• VOLTAGE RANGE:+/- 0.5 V to 70 V
• FREQUENCY RANGE:10,000 Hz (max)
• MAXIMUM STANDBY CURRENT: 51 mA at 12 V, 47 mA at 24 V
• MAXIMUM SLEEP CURRENT: 35 mA at 12 V, 32 mA at 24 V
• MAXIMUM DEEP SLEEP CURRENT:<10 uA at 12 V, <10 uA at 24 V
• KEY BENEFITS: Provides global flexibility
