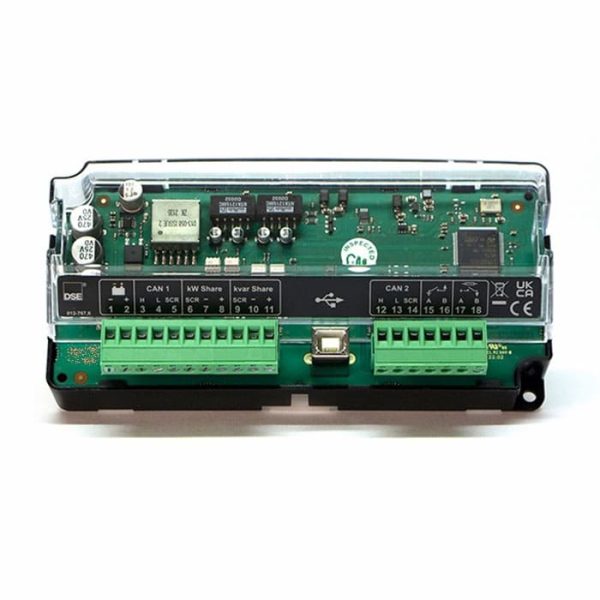

DEEPSEA DSEG0123 High Accuracy Control Module!

The DSEG0123 Analogue Load Share Lines Interface converts DSE AMSC / MSC digital load share communications to universal analogue load share
lines, allowing DSE paralleling controllers to seamlessly deliver kW and kvar load sharing with third party manufactured products.
The DSEG0123 also allows the DSEG8600, DSEG8900, DSE8610 MKII, DSE8610, DSE7510 and DSE5510 controllers to be added to an existing DSE
load sharing application and deliver kW and kvar load sharing across all DSE controllers within the system

DEEPSEA DSEG0123 Control Module specifications:

• CONTINUOUS VOLTAGE RATING 8 V to 35 V DC Continuous
• MAXIMUM OPERATING CURRENT 150 mA at 12 V, 80 mA at 24 V
• MAXIMUM STANDBY CURRENT 150 mA at 12 V, 80 mA at 24 V
• OVERALL SIZE: 164.5 mm x 76.4 mm x 48.9 mm (6.48” x 3.0” x 1.93”)
• WEIGHT: 0.2kg
• PRODUCT VARIANTS: G0123-01 – Analogue Loadshare Lines Interface
• CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
• KEY BENEFIT: Allows controllers to communicate with controllers of a different type or manufacturer
• KEY BENEFIT:Intuitive user programming using the standard DSE software platform
