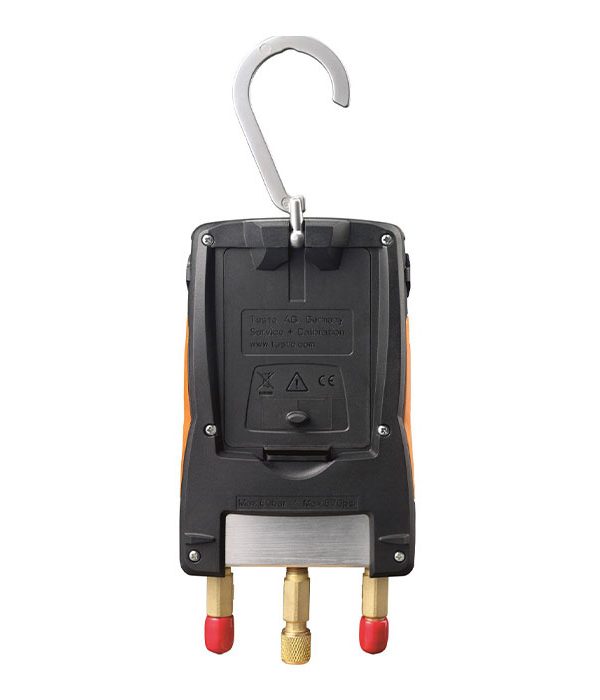

TESTO 550 digital manifold kit with Bluetooth and set of 3 filling tubes

TESTO 550 digital manifold kit with Bluetooth and set of 3 filling tubes

Order-Nr.  0563 2550

Do you work on air conditioning and refrigeration systems as well as heat pumps on a daily basis? If so, the testo 550 digital manifold kit is your perfect companion. See all the advantages at a glance:

• Quick, accurate measurement of high and low pressure with two temperature-compensated pressure sensors; automatic determination of the evaporation and condensation temperature
• Two temperature inputs for attachable temperature probes for the simultaneous calculation of superheating and subcooling: this means you can do without any error-prone manual calculations and get a reliable result straight away
• Including 3 filling tubes (blue, red, yellow), each 1.5 m long, 7/16‘‘ UNF (straight and 45° angle) and 55/275 bar, suitable for all common refrigerants
• Two clamp temperature probes included in the scope of delivery: when clamped directly onto the pipes, these enable reliable measurement of the surface temperature
• No need to switch over refrigerant hoses: thanks to automatic heat pump mode
• 60 refrigerants stored in the instrument: just one instrument covers all the most important refrigerants and, depending on the refrigerant, there is no need for different manifolds (refrigerant update possible via App)

TESTO 550 digital manifold kit with Bluetooth and set of 3 filling tubes specifications:

• Measuring range : -50 to +150 °C
• Accuracy : ±0.5 °C
• Resolution : 0.1 °C
• Probe connection : 2 x Plug-in (NTC)
• Measuring range : -1 to 60 bar
