Testo 770-2 True-RMS Clamp Meter – 600 A AC/DC, 1000 V, μA + Type-K Adapte
3 Comments
Get accurate readings with the Testo 770-2 True-RMS Clamp Meter, perfect for high-voltage tasks and electrical diagnostics.
Terms of sending goods ›
AED 710 (excl.VAT)
Order Via phone number
Order Via Online Form
In Stock
Description

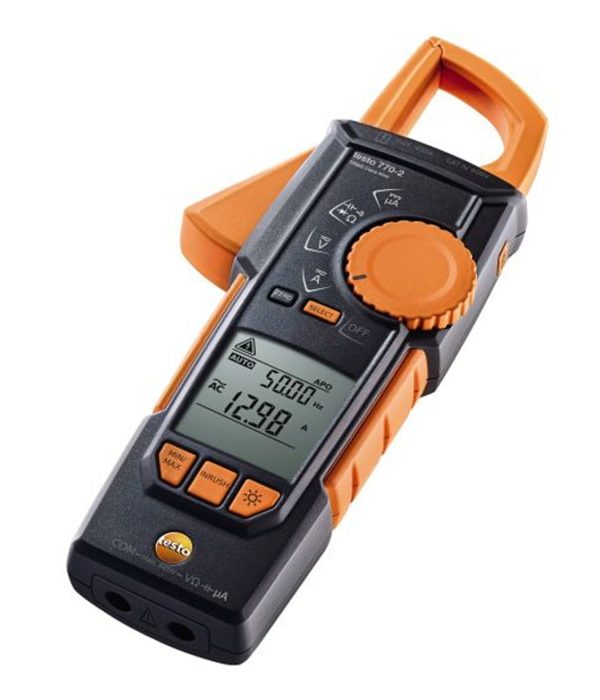

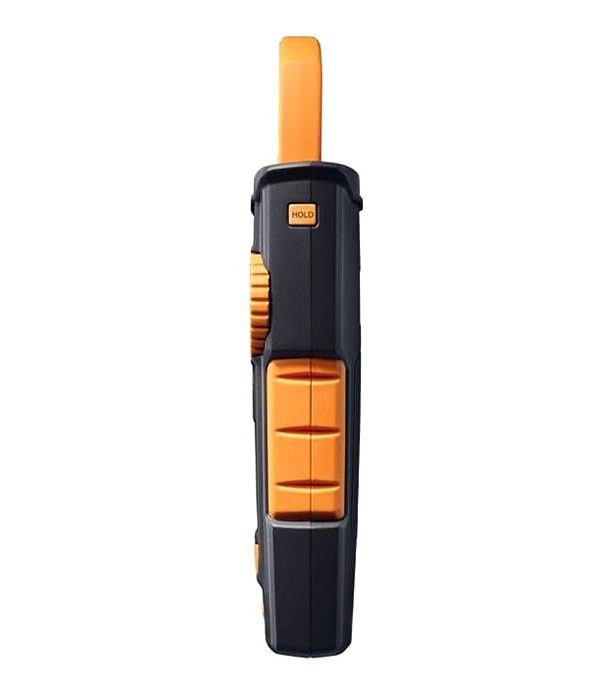

Testo 770-2 Clamp meter overview
Order-Nr. 0590 7702
It is significantly simpler to operate on small measuring points, such as switching cabinets, with the Testo 770-2 clamp meter. The retractable pincer arm of the clamp meter has a full range of motion. This enables you to precisely grab densely packed conductors, like wires, and inspect them for flaws.
It also makes it possible to evaluate ionization current in the A range and monitor the beginning current on electric motors. Electrical parameters can also be measured using the included temperature adapter for thermocouple probes.
Automatic detection and selection of various electrical parameters including resistance, continuity, diode, and capacitance are also offered by the clamp meter. Operation is now simpler and more dependable than before. Your readings are presented on the two-line display in a clear and distinct manner.
Testo 770-2 Clamp Meter Key features
- Measure more in one trip: 600 A AC/DC clamp, up to 1000 V AC/DC, auto AC/DC for faster setup.
- HVAC-ready precision: μA range (to 400 μA) for flame rods and controls, plus Type-K adapter for temp probes.
- Fewer mistakes in tight panels: patented slide/hook jaw isolates a single conductor quickly and safely.
- See transients clearly: inrush, TRMS, dual-line 6000-count display.

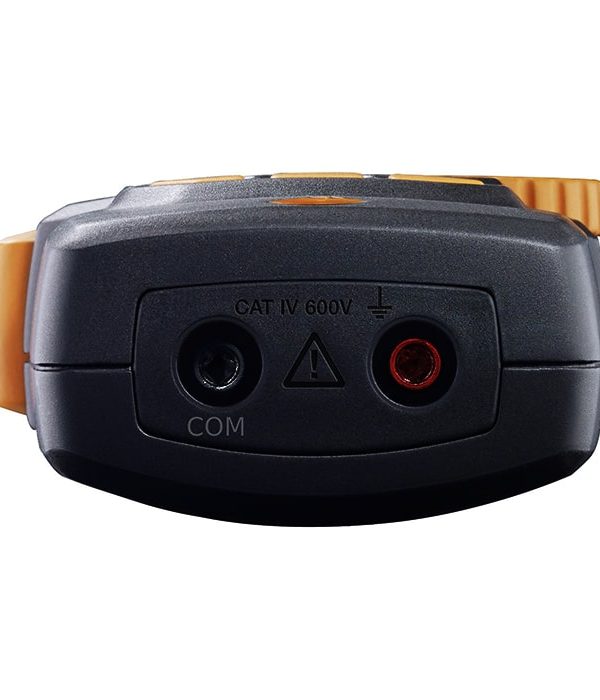

- Pro-grade safety: CAT IV 600 V / CAT III 1000 V with robust build.
Contents of the Testo 770-2 Clamp Meter box
770-2 clamp meter, measuring leads (1 set), batteries, and Type-K thermocouple adapter (probe optional).
Additional information
| clamp__meter__type |
AC/DC |
|---|---|
| max__current__ac (clamp meter) |
0-400 |
| max__current__dc (clamp meter) |
0-400 |
| max__voltage__ac (clamp meter) |
401-600 |
| max__voltage__dc (clamp meter) |
401-600 |
Datasheet
Datasheet
Technical data
Technical data
| Specification | Value |
|---|---|
| Operating humidity | 0 to 80 %RH |
| Weight | 378 g |
| Dimensions | 249 x 96 x 43 mm |
| Operating temperature | -10 to +50 °C |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Battery type | 3 AAA micro batteries |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Measuring range Capacitance | 10 nF to 100.0 μF |
| Resolution Capacitance | max. 0.01 nF |
| Accuracy Capacitance | ± (1.5 % of mv + 5 Digit) |
| Measuring range Resistance | 0.1 to 40.00 MOhm |
| Resolution Resistance | max. 0.1 Ohm |
| Accuracy Resistance | ± (1.5 % of mv + 3 Digit) |
| Measuring range AC current | 0.1 to 400.0 A (clamp), 0.1 to 400 μA (measuring cables) |
| Resolution AC current | 0.1 A (clamp), 0.1 μA (measuring cables) |
| Accuracy AC current | ± (2 % of mv + 5 Digit) (clamp), ± (1.5 % of mv + 5 Digit) (measuring cables) |
| Measuring range DC current | 0.1 to 400.0 A (clamp), 0.1 to 400.0 μA (measuring cables) |
| Resolution DC current | 0.1 (clamp), 0.1 (measuring cables) |
| Accuracy DC current | ± (2 % of mv + 5 Digit) (clamp), ± (1.5 % of mv + 5 ) (measuring cables) |
| Measuring range AC voltage | 1.0 mV to 600.0 V |
| Resolution AC voltage | max. 1 mV |
| Accuracy AC voltage | ± (1.0 % of mv + 3 Digit) |
| Measuring range DC voltage | 1.0 to 600.0 V |
| Resolution DC voltage | max. 1 mV |
| Accuracy DC voltage | ± (0.8 % of mv + 3 Digit) |
| Measuring range Temperature | -20 to +500 °C |
| Accuracy Temperature | ±1 °C (0 to +100 °C) |
| Resolution Temperature | 0.2 °C |
