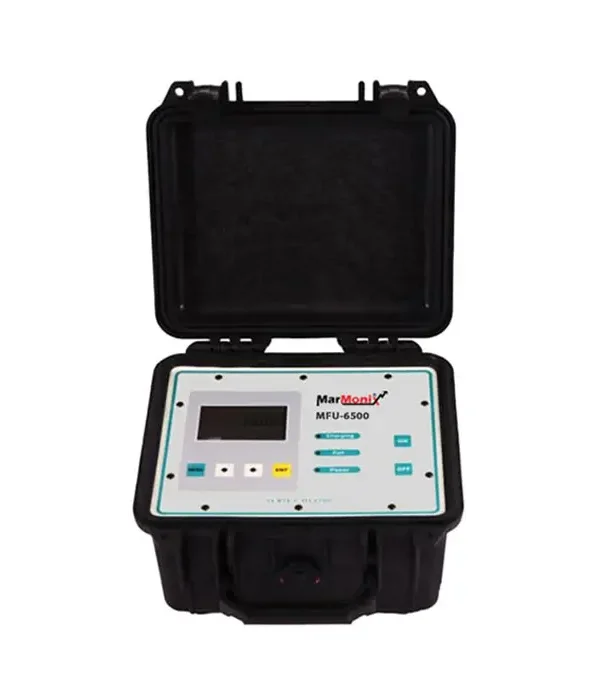

MARMONIX MFU-6500 pro Portable Ultrasonic Flow meter
(No Reviews)
Buy the MARMONIX MFU-6500 Pro Doppler Portable Ultrasonic Flow Meter, a versatile and reliable instrument for accurate flow measurement across various industries. Its advanced features and practical design make it an excellent investment for professionals looking for precision and efficiency.
- Resolution: 0.25mm/s
- Accuracy: 0.5% – 2.0% F.S.
- Response Time: 2-60s for optional
- Flow Velocity Range: 0.05 – 12 m/s
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
Buy MARMONIX MFU-6500 Pro
The MARMONIX MFU-6500 Pro Doppler Portable Ultrasonic Flow Meter is a state-of-the-art device designed to measure volumetric flow within closed conduits precisely. Its portability and advanced Doppler technology make it indispensable for professionals in various industries.
MARMONIX MFU-6500 Pro Key Features
The MARMONIX MFU-6500 Pro offers a range of features that enhance its functionality:
- Wide Pipe Size Compatibility: It is suitable for pipe sizes ranging from 40 to 4000 mm, accommodating a broad spectrum of applications.
- Adaptability to Liquid Conditions: Designed for dirty liquids containing air bubbles or suspended solids, ensuring accurate measurements in challenging environments.
- Low Flow Rate Measurement: Capable of measuring flow rates as low as 0.05 m/s, providing precision in low-flow scenarios.
- High Flow Rate Capacity: Handles flow rates up to 12 m/s, demonstrating versatility across different flow conditions.
- High-Temperature Transducer: It operates effectively with liquids between -35°C and 200°C and is suitable for various industrial processes.
- Non-Intrusive Installation: Transducers can be installed without shutting down the pipe flow, minimizing operational disruptions.
- User-Friendly Configuration: Intuitive interface allows for easy setup and operation, enhancing user experience.
- Output Options: Equipped with 4-20mA and OCT outputs, facilitating integration with existing systems.
- Rechargeable Battery: Provides up to 50 hours of operation, ensuring extended use in the field.
Applications
The versatility of the MARMONIX MFU-6500 Pro makes it suitable for various applications:
- Water and Wastewater Management: Ideal for monitoring flow in treatment plants and distribution systems.
- Industrial Process Control: Managing flow rates in manufacturing and processing facilities.
- HVAC Systems: Useful for assessing flow in heating, ventilation, and air conditioning systems.
- Energy Sector: Applicable in monitoring flow in oil and gas pipelines.
MARMONIX MFU-6500 Pro Specifications
The MARMONIX MFU-6500 Pro ultrasonic flow meter provides a high resolution of 0.25 mm/s and an accuracy range of 0.5% to 2.0% full scale. It features an adjustable response time of 2 to 60 seconds and can measure flow velocities ranging from 0.05 to 12 m/s. This makes it a precise and versatile solution for various fluid measurement applications.
| Measurement Principle | Doppler ultrasonic |
| Resolution | 0.25mm/s |
| Accuracy | 0.5% – 2.0% F.S. |
| Response Time | 2-60s for optional |
| Flow Velocity Range | 0.05 – 12 m/s |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 microns. |
| Power Supply | AC: 85-265V |
| Enclosure Type | Portable |
| Degree of Protection | IP65, according to EN60529 |
| Operating Temperature | -20°C to +60°C |
| Housing Material | ABS |
| Measurement Channels | 1 |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³, kg |
| Communication | 4-20mA, OCT output |
| Keypad | 6pcs buttons |
| Size | Transmitter: 270×125×175mm |
| Weight | 3kg |
| Transducers Type | Clamp-on |
| Degree of Protection | IP65, IP67, or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35°C85°C for short periods up to 120°C <br> High Temp.: -35°C200°C for short periods up to 250°C |
| Pipe Diameter Range | 40-4000 mm |
| Transducer Size | 60(h)×34(w)×33(d)mm |
| Material of Transducer | Aluminum for standard temp. Sensor, PEEK for high temp. sensor |
| Cable Length | Std: 5m |
The MARMONIX MFU-6500 Pro Doppler Portable Ultrasonic Flow Meter Meter is a versatile and reliable tool for accurate flow measurement across multiple industries. Its advanced features and practical design make it an excellent investment for professionals seeking precision and efficiency.
Specifications
Specifications
| Measurement Principle | Doppler ultrasonic |
| Resolution | 0.25mm/s |
| Accuracy | 0.5% – 2.0% F.S. |
| Response Time | 2-60s for optional |
| Flow Velocity Range | 0.05 – 12 m/s |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 microns. |
| Power Supply | AC: 85-265V |
| Enclosure Type | Portable |
| Degree of Protection | IP65 according to EN60529 |
| Operating Temperature | -20°C to +60°C |
| Housing Material | ABS |
| Measurement Channels | 1 |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³, kg |
| Communication | 4-20mA, OCT output |
| Keypad | 6pcs buttons |
| Size | Transmitter: 270×125×175mm |
| Weight | 3kg |
| Transducers Type | Clamp-on |
| Degree of Protection | IP65, IP67, or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35°C85°C for short periods up to 120°C <br> High Temp.: -35°C200°C for short periods up to 250°C |
| Pipe Diameter Range | 40-4000 mm |
| Transducer Size | 60(h)×34(w)×33(d)mm |
| Material of Transducer | Aluminum for standard temp. Sensor, PEEK for high temp. sensor |
| Cable Length | Std: 5m |
