Milwaukee MA888 Digital Ethylene Glycol Refractometer | Antifreeze Concentration & Freezing Point Tester
(No Reviews)
The Milwaukee MA888 Digital Ethylene Glycol Refractometer is a crucial tool for accurately measuring ethylene glycol concentrations and freezing points. Its wide measurement range, automatic temperature compensation, and user-friendly design ensure effective monitoring of coolant and antifreeze solutions, supporting optimal system performance.
-
Range: 0 to 100% Volume | Freezing Point 0 to -50°C (32 to -58°F) | Temperature 0 to 80°C / 32 to 176°F
- Yellow LED light source
- IP65 Rating
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
Buy Milwaukee MA888
The Milwaukee MA888 Digital Ethylene Glycol Refractometer is a precision instrument designed to measure the concentration and freezing point of ethylene glycol-based coolants or antifreeze solutions. Utilizing refractive index measurements provides accurate and rapid assessments, essential for professionals managing cooling systems in various industries.
Key Features of Milwaukee MA888 Digital Ethylene Glycol Refractometer
The Milwaukee MA888 Digital Ethylene Glycol Refractometer offers several notable features that enhance its functionality:
- Comprehensive Measurement Range: The MA888 measures ethylene glycol concentrations from 0 to 100% by volume and determines freezing points from 0 to -50°C (32 to -58°F). Additionally, it monitors temperatures ranging from 0 to 80°C (32 to 176°F), providing a broad spectrum of data for thorough analysis.
- Automatic Temperature Compensation (ATC): Equipped with ATC, the device adjusts readings for temperature variations between 0 and 40°C (32 to 104°F), ensuring accuracy under fluctuating environmental conditions.
- High Precision and Resolution: The MA888 delivers reliable and detailed measurements critical for quality control.
- Rapid Measurement Time: The instrument provides quick results, displaying readings in approximately 1.5 seconds, thereby enhancing efficiency during testing.
- Minimal Sample Volume: It requires only 100 µL (about 2 metric drops) to cover the prism, minimizing sample waste while ensuring accurate readings.

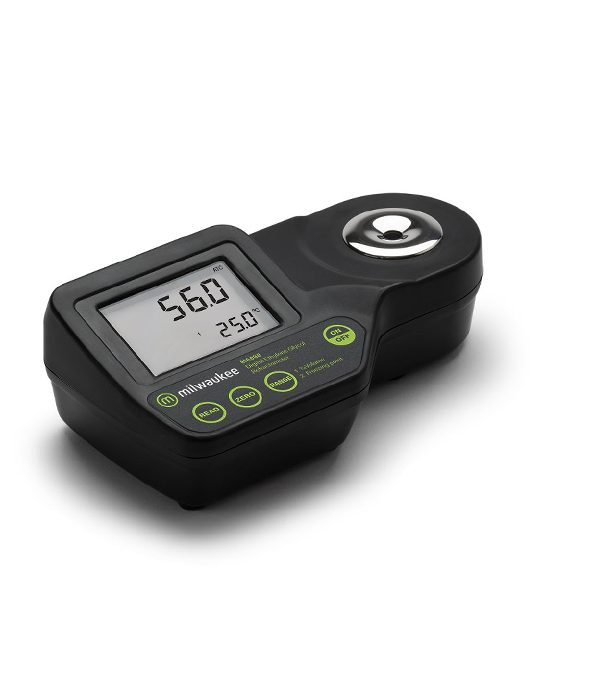

- User-Friendly Interface: The MA888 features a dual-level LCD that displays ethylene glycol concentration and temperature readings simultaneously, facilitating easy data interpretation.
- Durable Construction: The stainless steel sample well and flint glass prism are easy to clean, and the device’s IP65 rating ensures it is dust-tight and protected against water jets, enhancing its durability in various environments.
Additional Specifications

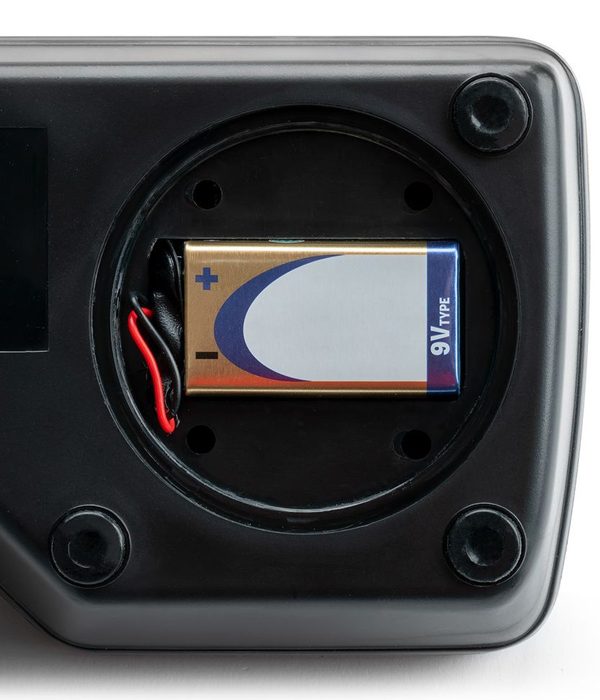

The Milwaukee MA888 operates on a single 9V battery, providing approximately 5,000 hours of continuous use. To conserve power, it features an automatic shut-off function after 3 minutes of inactivity. Its compact dimensions (192 x 102 x 67 mm) and lightweight design (0.42 kg) make it portable and convenient for both field and laboratory settings.
Milwaukee MA888 Specifications
The Milwaukee MA888 Digital Ethylene Glycol Refractometer measures 0 to 100% volume of Ethylene Glycol with an accuracy of ±0.2%.
| Range | 0 to 100% Volume | Freezing Point 0 to -50°C (32 to -58°F) | Temperature 0 to 80°C / 32 to 176°F |
| Resolution | 0.1% Volume | Freezing Point 0.1°C (0.1°F) | Temperature 0.1°C / 0.1°F |
| Accuracy | ±0.2% Volume | Freezing Point ±0.5°C (±1°F) | Temperature ±0.3°C / ±0.5°F |
| Light Source | Yellow LED |
| Measurement Time | Approximately 1.5 seconds |
| Minimum Sample | Volume 100 µL or 2 metrics drops (cover prism totally) |
| Sample Cell | Stainless steel ring and flint glass prism |
| Temperature Compensation | Automatic between 10 and 40°C / 50 to 104°F |
| Enclosure rating | IP65 |
| Case Material | ABS |
| Battery Type | 1 x 9V AA (included) |
| Battery Life | 5000 hours reading with auto-shut off after 3 minutes of non-use |
| Dimensions Meter | 7.6 x 4 x 2.64 inches (192 x 102 x 67 mm) |
| Weight Meter | 0.93 lbs. (0.42 kg) |
| Dimensions Package | 11 x 6.8 x 4.6 inches (268 x 172 x 118 mm) |
| Weight Package | 1.46 lbs. (0.66 kg) |
Buy the Milwaukee MA888 Digital Ethylene Glycol Refractometer for accurate measurements of ethylene glycol concentrations and freezing points. With its user-friendly design, wide measurement range, and automatic temperature compensation, it effectively monitors coolant and antifreeze solutions to ensure optimal system performance.
Datasheet
Datasheet
Manual
Specifications
Specifications
| Range | 0 to 100% Volume | Freezing Point 0 to -50°C (32 to -58°F) | Temperature 0 to 80°C / 32 to 176°F |
| Resolution | 0.1% Volume | Freezing Point 0.1°C (0.1°F) | Temperature 0.1°C / 0.1°F |
| Accuracy | ±0.2% Volume | Freezing Point ±0.5°C (±1°F) | Temperature ±0.3°C / ±0.5°F |
| Light Source | Yellow LED |
| Measurement Time | Approximately 1.5 seconds |
| Minimum Sample | Volume 100 µL or 2 metrics drops (cover prism totally) |
| Sample Cell | Stainless steel ring and flint glass prism |
| Temperature Compensation | Automatic between 10 and 40°C / 50 to 104°F |
| Enclosure rating | IP65 |
| Case Material | ABS |
| Battery Type | 1 x 9V AA (included) |
| Battery Life | 5000 hours reading with auto-shut off after 3 minutes of non-use |
| Dimensions Meter | 7.6 x 4 x 2.64 inches (192 x 102 x 67 mm) |
| Weight Meter | 0.93 lbs. (0.42 kg) |
| Dimensions Package | 11 x 6.8 x 4.6 inches (268 x 172 x 118 mm) |
| Weight Package | 1.46 lbs. (0.66 kg) |
