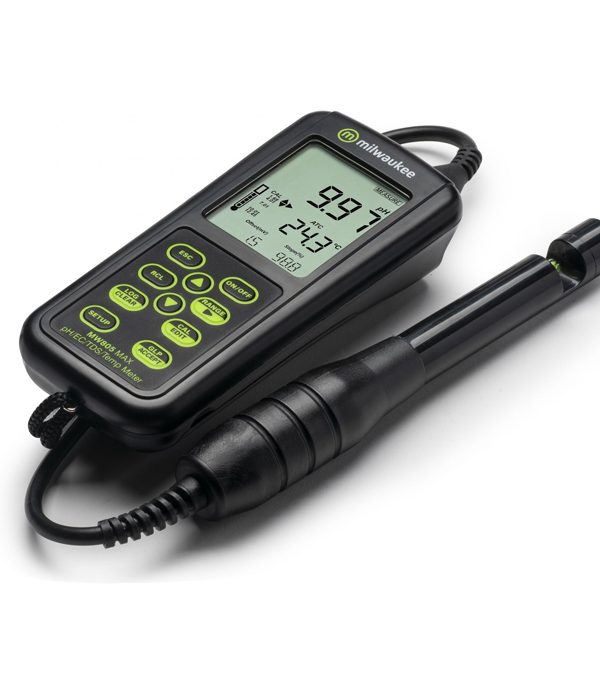

Milwaukee MW805 4-in-1 pH/EC/TDS/Temp. Combo Meter with ATC
(No Reviews)
The Milwaukee MW805 4-in-1 pH/EC/TDS/Temp Combo Meter with Automatic Temperature Compensation (ATC) is a versatile and durable tool for water quality management. Ideal for professional growers and educators, it measures multiple parameters efficiently, providing the precision needed for optimal results. Its robust design and advanced features make it suitable for various applications.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
Buy Milwaukee MW805
The Milwaukee MW805 4-in-1 pH/EC/TDS/Temp Combo Meter with Automatic Temperature Compensation (ATC) is a versatile and essential tool for anyone needing accurate measurements in various environments, such as hydroponics, aquaculture, and laboratory settings. This device allows users to monitor four critical parameters—pH, electrical conductivity (EC), total dissolved solids (TDS), and temperature—using a single meter and probe, making it an efficient choice for professionals and hobbyists alike.
Milwaukee MW805 Key Features
The Milwaukee MW805 is designed with user convenience and performance in mind. Here are some of its standout features:
- Multi-Parameter Measurement: This combo meter can measure pH, EC, TDS, and temperature simultaneously, eliminating the need for multiple devices. This functionality streamlines the testing process and saves time.
- Automatic Temperature Compensation: The ATC feature ensures that temperature variations do not affect the accuracy of pH readings, providing reliable results across a wide range of conditions.
- User-Friendly Interface: The large LCD display presents clear readings for all four parameters, making it easy to interpret results at a glance. The intuitive design allows for straightforward operation, even for those new to using such equipment.
- Durable and Portable Design: Built to withstand tough conditions, the MW805 is lightweight and portable, making it suitable for both fieldwork and laboratory use. Its rugged construction ensures longevity and reliability.
- Easy Calibration: The meter features simple calibration procedures for each parameter, allowing users to maintain accuracy with minimal effort. This is particularly beneficial for those who may not have extensive experience with calibration processes.
Applications of the Milwaukee MW805
The Milwaukee MW805 is suitable for a variety of applications:
- Hydroponics: Accurate measurement of pH and nutrient levels is critical in hydroponic systems. This meter helps growers optimize conditions for plant growth.
- Aquaculture: Monitoring water quality is essential in fish farming. The MW805 provides reliable data on pH and TDS levels to ensure a healthy aquatic environment.
- Laboratories: Precise measurements are crucial in research settings. The MW805 offers the accuracy needed for scientific experiments and analysis.
- Environmental Monitoring: This combo meter provides essential data for environmental scientists and field researchers, helping them inform studies on water quality.
Milwaukee MW805 Specifications
The Milwaukee MW805 4-in-1 pH/EC/TDS/Temperature Combo Meter measures pH from -2.00 to 20.00, EC from 0 to 4000 µS/cm, TDS from 0 to 2000 ppm (up to 3200 ppm with a TDS factor of 0.80), and temperature from -20.0 to 120.0°C (-4.0 to 248°F).
| pH Range | -2.00 to 20.00 pH |
| EC Range | 0 to 4000 µS/cm |
| TDS Range | 0 to 2000 ppm (mg/L) | up to 3200 ppm (mg/L) with TDS 0.80 factor |
| Temperature Range | -20.0 to 120.0°C / -4.0 to 248°F |
| pH Resolution | 0.01 pH |
| EC Resolution | 1 µS/cm |
| TDS Resolution | 1 ppm (mg/L) |
| Temperature Resolution | 0.1°C / 0.1°F |
| pH Accuracy | ±0.01 |
| EC/TDS Accuracy | ±2% Full Scale |
| Temperature accuracy | ±0.5°C / ±0.9°F |
| Calibration pH | Automatic up to 5 – point pH, 7 Standard Calibration Buffers pH1.68; 4.01; 6.86; 7.01; 9.18, 10.01; 12.45 and 2 Custom Buffers |
| Calibration EC/TDS | Single Cell Factor Calibration; 2 Standards 84 μS/cm; 1413 µS/cm / One- point Offset: 0.00 µS/cm |
| Temperature Calibration | Factory Calibrated |
| Temperature Compensation | Automatic (ATC) from -20 to 120°C (-4 to 248°F) | Manual (MTC) from -20 to 120°C (-4 to 248°F) |
| Conductivity temperature coefficient | 0.00 to 6.00 % /ºC (EC & TDS only) | Default value 1.9 %/ºC |
| TDS Factor | 0.40 to 0.80; default value 0.5 |
| Logging Memory | Up to 1,000 log records (stored in up to 100 lots) | On demand, up to 200 logs | on Stability, up to 200 logs | Interval logging, up to 1,000 logs | Parameter-Specific log storage location |
| PC connectivity | 1 micro USB port |
| Battery Type | 3 X 1.5V Alkaline AA batteries (included) | Approximately 200 hours of use |
| Environment | 0 to 50°C / 32 to 122°F; max RH 95% |
| Dimensions Meter | 7.9 x 3.3 x 2 inches (200 x 85 x 50 mm) |
| Auto-off | After 10 minutes of non-use |
| Casing | IP67 protection level |
| Weight Meter | 260 g (0.57 lb) |
| Dimensions Packaging | 12 x 11 x 4.5 inches (305 x 280 x 115 mm) |
| Weight Packaged | 3.2 lbs. (1.44 kg) |
| Probe Specifications | MA852D/1 Amplified pH/EC/TDS/Temp Probe (included) |
| Range | pH 0 to 13 | Temperature 0.0 to 60.0°C (32.0 to 140.0°F) |
| EC electrodes | 2 X graphite |
| Reference | Single, Ag/AgCl |
| Junction | Cloth |
| Electrolyte (pH) | Gel |
| Body | ABS |
| Connection | DIN |
| Cable | 1 m (3.3′) |
Buy the Milwaukee MW805 4-in-1 pH/EC/TDS/Temp Combo Meter with Automatic Temperature Compensation (ATC) for a versatile and durable solution to your water quality management needs. Perfect for professional growers and educators, this meter efficiently measures multiple parameters, ensuring the precision required for optimal results in various applications.
Manual
Manual
Manual
Specifications
Specifications
| pH Range | -2.00 to 20.00 pH |
| EC Range | 0 to 4000 µS/cm |
| TDS Range | 0 to 2000 ppm (mg/L) | up to 3200 ppm (mg/L) with TDS 0.80 factor |
| Temperature Range | -20.0 to 120.0°C / -4.0 to 248°F |
| pH Resolution | 0.01 pH |
| EC Resolution | 1 µS/cm |
| TDS Resolution | 1 ppm (mg/L) |
| Temperature Resolution | 0.1°C / 0.1°F |
| pH Accuracy | ±0.01 |
| EC/TDS Accuracy | ±2% Full Scale |
| Temperature accuracy | ±0.5°C / ±0.9°F |
| Calibration pH | Automatic up to 5 – 5-point pH, 7 Standard Calibration Buffers pH1.68; 4.01; 6.86; 7.01; 9.18, 10.01; 12.45 and 2 Custom Buffers |
| Calibration EC/TDS | Single Cell Factor Calibration; 2 Standards 84 μS/cm; 1413 µS/cm / One-point Offset: 0.00 µS/cm |
| Temperature Calibration | Factory Calibrated |
| Temperature Compensation | Automatic (ATC) from -20 to 120°C (-4 to 248°F) | Manual (MTC) from -20 to 120°C (-4 to 248°F) |
| Conductivity temperature coefficient | 0.00 to 6.00 % /ºC (EC & TDS only) | Default value 1.9 %/ºC |
| TDS Factor | 0.40 to 0.80; default value 0.5 |
| Logging Memory | Up to 1,000 log records (stored in up to 100 lots) | On demand, up to 200 logs | on Stability, up to 200 logs | Interval logging, up to 1,000 logs | Parameter-Specific log storage location |
| PC connectivity | 1 micro USB port |
| Battery Type | 3 X 1.5V Alkaline AA batteries (included) | Approximately 200 hours of use |
| Environment | 0 to 50°C / 32 to 122°F; max RH 95% |
| Dimensions Meter | 7.9 x 3.3 x 2 inches (200 x 85 x 50 mm) |
| Auto-off | After 10 minutes of non-use |
| Casing | IP67 protection level |
| Weight Meter | 260 g (0.57 lb) |
| Dimensions Packaging | 12 x 11 x 4.5 inches (305 x 280 x 115 mm) |
| Weight Packaged | 3.2 lbs. (1.44 kg) |
| Probe Specifications | MA852D/1 Amplified pH/EC/TDS/Temp Probe (included) |
| Range | pH 0 to 13 | Temperature 0.0 to 60.0°C (32.0 to 140.0°F) |
| EC electrodes | 2 X graphite |
| Reference | Single, Ag/AgCl |
| Junction | Cloth |
| Electrolyte (pH) | Gel |
| Body | ABS |
| Connection | DIN |
| Cable | 1 m (3.3′) |
