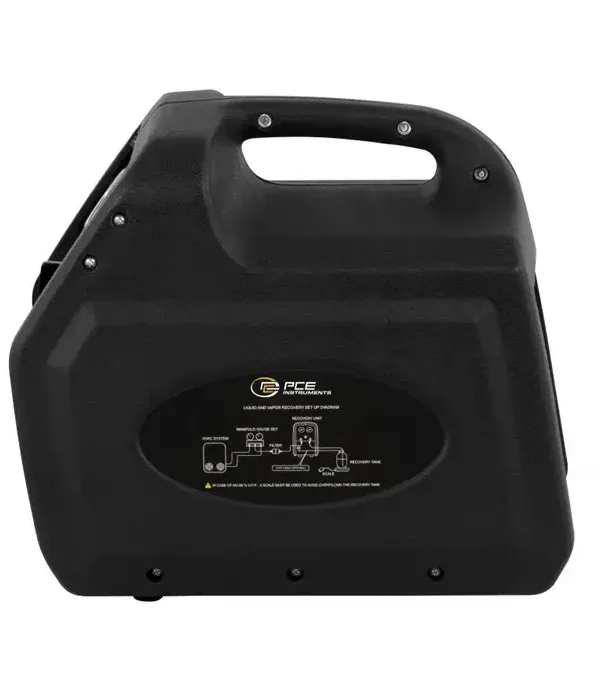

PCE-RRM 250 Refrigerant Recovery Device for HVAC
Short Description:
The PCE-RRM 250 Refrigerant Recovery Device is a vital tool for HVAC technicians focused on efficient refrigerant recovery. Its high recovery rate, user-friendly design, and robust safety features make it an ideal choice for enhancing service capabilities while ensuring compliance with environmental regulations.
- Measurement range: 0 to 38.5 bar, 0 to 558 psi
- Connections: 1/4 inch SAE
- Engine power: 0.75 hp
- Compressor: Oil-free, air-cooled, piston
Buy PCE-RRM 250
The PCE-RRM 250 Refrigerant Recovery Device is a powerful and efficient tool designed for HVAC professionals who need to recover refrigerants safely and effectively. This device is essential for maintaining compliance with environmental regulations while ensuring the efficient operation of refrigeration and air conditioning systems. With its robust design and advanced features, the PCE-RRM 250 streamlines the refrigerant recovery process, making it an invaluable asset for technicians in the field.
Equipped with a high-performance compressor, the PCE-RRM 250 can quickly recover refrigerants from various systems, including residential and commercial HVAC units. Its user-friendly interface allows technicians to easily operate the device, ensuring that they can focus on their work without being hindered by complicated controls. The device’s portability and lightweight construction make transporting it to different job sites easy, enhancing its practicality for everyday use.
Key Features
The PCE-RRM 250 has several features that make it an ideal tool for battery testing. These include:
- High Recovery Rate: The PCE-RRM 250 boasts an impressive recovery rate, allowing technicians to complete jobs more quickly and efficiently. This feature is particularly beneficial when working with large systems or during peak service periods.

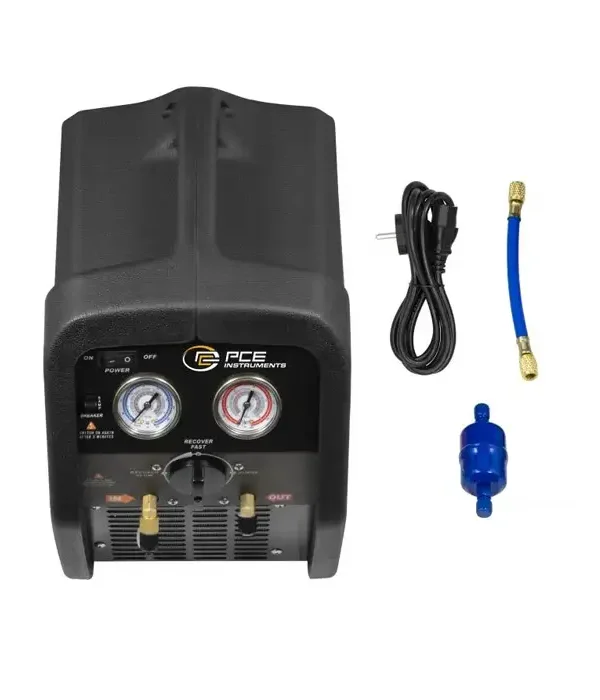

- Dual Pressure Gauges: The device is equipped with dual pressure gauges that provide real-time monitoring of the system’s low and high-pressure sides. This feature enhances accuracy during the recovery process and helps prevent potential issues.
- Compact and Lightweight Design: Weighing only a few kilograms, the PCE-RRM 250 is designed for easy handling and transport. Its compact size allows it to fit into tight spaces, making it suitable for various applications.
- Durable Construction: Built to withstand the rigors of daily use in demanding environments, this refrigerant recovery device features a sturdy casing that protects its internal components from damage.
- Integrated Safety Features: The PCE-RRM 250 includes multiple safety mechanisms to prevent overcharging and protect against refrigerant leaks. These features ensure safe operation while complying with environmental standards.
- Versatile Compatibility: This device is compatible with various refrigerants, including R-410A, R-22, and R-134A, making it suitable for various HVAC systems.
In summary, the PCE-RRM 250 Refrigerant Recovery Device is an essential tool for HVAC technicians focused on efficient refrigerant recovery practices. Its high recovery rate, user-friendly design, and robust safety features make it a reliable choice for professionals looking to enhance their service capabilities. By investing in the PCE-RRM 250, technicians can ensure compliance with environmental regulations while delivering exceptional service to their clients in the HVAC industry.
PCE-RRM 250 Specifications
The PCE-RRM 250 Refrigerant Recovery Device for HVAC features 1/4 inch SAE connections and a measuring range of 0 to 558 psi.
Measurement range | 0 … 38.5 bar |
Resolution | 0.5 |
Measurement range | 0 … 558 psi |
Resolution | 5 psi |
Suction rate liquid | |
Category 3 | 1.6 kg/min |
Category 4 | 1.8 kg/min |
Category 5 | 2.2 kg/min |
Suction rate push/pull | |
Category 3 | 4.6 kg/min |
Category 4 | 5.6 kg/min |
Category 5 | 6.3 kg/min |
Vapour extraction rate | |
Category 3 | 0.2 kg/min |
Category 4 | 0.25 kg/min |
Category 5 | 0.25 kg/min |
General technical data | |
Connections | 1/4 inch SAE |
Current consumption measuring device | 4 A |
Refrigerant | R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R502, R509, R402A, R404A, R407A, R407B, R410A, R507, R411A, R411B, R412A |
Engine power | 0.75 hp |
Compressor | Oil-free, air-cooled, piston |
Flow rate | 2.2 kg/m |
Overload protection | 8 A |
Overpressure | 38.5 bar |
Speed | 1450 RPM |
Protection class (device) | IP30 |
Power supply | 110 … 220V AC | 50/60 Hz |
Plug type | Protective contact plug |
Weight | 12.9 kg |
Operating conditions | 0 … 40 °C , 20 … 85 % r.H |
Storage conditions | 0 … 40 °C , 20 … 85 % r.H |
Dimensions ( L x W x H ) | 400 x 250 x 360 mm |
Invest in the PCE-RRM 250 Refrigerant Recovery Device designed specifically for HVAC applications. This advanced device will significantly improve your measurement accuracy and efficiency when handling refrigerants. Elevate your performance in the field and ensure precise readings every time with this reliable tool.
Specifications
Measurement range | 0 … 38.5 bar |
Resolution | 0.5 |
Measurement range | 0 … 558 psi |
Resolution | 5 psi |
Suction rate liquid | |
Category 3 | 1.6 kg/min |
Category 4 | 1.8 kg/min |
Category 5 | 2.2 kg/min |
Suction rate push/pull | |
Category 3 | 4.6 kg/min |
Category 4 | 5.6 kg/min |
Category 5 | 6.3 kg/min |
Vapor extraction rate | |
Category 3 | 0.2 kg/min |
Category 4 | 0.25 kg/min |
Category 5 | 0.25 kg/min |
General technical data | |
Connections | 1/4 inch SAE |
Current consumption measuring device | 4 A |
Refrigerant | R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R502, R509, R402A, R404A, R407A, R407B, R410A, R507, R411A, R411B, R412A |
Engine power | 0.75 hp |
Compressor | Oil-free, air-cooled, piston |
Flow rate | 2.2 kg/m |
Overload protection | 8:00 AM |
Overpressure | 38.5 bar |
Speed | 1450 RPM |
Protection class (device) | IP30 |
Power supply | 110 … 220V AC | 50/60 Hz |
Plug type | Protective contact plug |
Weight | 12.9 kg |
Operating conditions | 0 … 40 °C , 20 … 85 % r.H |
Storage conditions | 0 … 40 °C , 20 … 85 % r.H |
Dimensions ( L x W x H ) | 400 x 250 x 360 mm |
