SKF TKSA 41 Shaft Alignment Tool
4 Comments
- Wireless Bluetooth 4.0 LE communication
- Automatic measurement and report generation
- Live view for intuitive horizontal alignments
- Measuring distance: 0.07 to 4 meters
- Measuring errors: < 0.5% ±5 µm
- Shaft diameter: 20 to 150 mm
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
The SKF TKSA 41 is a sophisticated laser alignment tool designed for precise shaft alignment. It features two wireless measurement units, large detectors, and powerful lasers, allowing it to deliver accurate measurements even in difficult conditions. The ergonomic display unit with intuitive touchscreen navigation simplifies and speeds up the alignment process.
Innovative features, such as “free measurement,” enhance alignment efficiency. Designed to improve alignment practices, the SKF TKSA 41 Shaft Alignment Tool offers one of the best value solutions in the industry. Wireless communication enhances the ease of use and enables alignments on hard-to-reach applications from a safe distance, improving overall instrument handling. For more details on the SKF TKSA 41 price, explore options that provide top performance and efficiency.
skf laser alignment tksa 41 key features
Here are its key features of skf tksa 41 wireless laser shaft alignment system:
- Wireless communication improves instrument handling and allows alignments of difficult-to-reach applications from a safe
position. - Automatic measurement enables handsfree measurements by detecting the head position and taking a measurement when
the heads are rotated into the right position. - Automatic reports are generated after each alignment. The reports can be customized with notes and pictures from the built-in
camera for the most comprehensive overview. All reports can be exported as PDF files. - Live view supports intuitive measurements and facilitates horizontal and vertical alignments.
- The simplicity of the TKSA 41 provides greater confidence for the performance of alignment tasks on all types of horizontal
rotating machines. - QR codes can be used to further simplify machine identification and improve the alignment workflow.
skf alignment tool tksa 41 specs
Ensuring precise machinery alignment is effortless with the robust capabilities of the SKF TKSA 41. The bullet points below highlight the core system specifications and measurement tolerances of this advanced alignment tool. To explore the complete technical data, please click over to our Specifications tab, or navigate to the Datasheet tab to download the full PDF datasheet for offline reference.
-
Connectivity: Bluetooth 4.0 LE wireless communication or wired USB connection
-
Measuring Range (Distance): 0.07 to 4 m
-
Measurement Accuracy (Errors): < 0.5% ±5 µm
-
Primary Applications: Horizontal shaft alignment and Soft foot measurement
-
Supported Shaft Diameters: 20 to 150 mm (expandable up to 300 mm with optional extension chains)
-
Max Coupling Height: 195 mm (7.7 in) with standard V-brackets
-
Sensor Technology: Line laser with 29 mm CCD detector
-
User Interface: Intuitive 5.6-inch color touchscreen
-
Battery Life: High-capacity Li-Po battery providing up to 16 hours for measuring units
-
Environmental Protection: IP54 rating for durability in industrial environments
SKF TKSA 41 Applications
The SKF TKSA 41 is an advanced laser alignment tool designed to prevent premature machine failure by ensuring precise alignment of rotating equipment. Proper alignment reduces vibration, lowers energy consumption, and extends the lifespan of bearings and mechanical seals. With its wireless connectivity and user-friendly interface, it is an essential preventative maintenance tool for minimizing downtime across manufacturing, power generation, and facility management industries.
Horizontal Shaft Alignment: Perfectly align driving machines (motors) with driven machines (pumps, fans, gearboxes).
Soft Foot Correction: Detect and resolve unstable machine mounting (soft foot) prior to final alignment.
Vibration Reduction: Minimize mechanical stress, noise, and vibration caused by misaligned shafts.
Tight Clearance Environments: The “Free Measurement” mode allows for accurate readings with only a 90° shaft sweep, ideal for tight spaces.
Preventative Maintenance: Routine checks to protect critical mechanical seals, couplings, and bearings from premature wear.
specifications
specifications
| Parameter | Details |
| Designation | TKSA 41 |
| Sensors and Communication | 29 mm (1.1 in.) CCD with line laser Class 2, Inclinometer ±0.5°, Bluetooth 4.0 LE, USB cables |
| System Measuring Distance | 0.07 to 4 m (0.23 to 13.1 ft) |
| Measuring Errors | < 0.5% ±5 µm |
| Housing Material | 20% Glass filled Polycarbonate |
| Operating Time (Measuring Unit) | Up to 16 hours |
| Battery Type | Rechargeable LiPo battery |
| Measuring Unit Dimensions | 120 × 90 × 36 mm (4.7 × 3.5 × 1.4 in.) |
| Measuring Unit Weight | 220 g (0.5 lb) |
| Operating Device | 5.6″ color resistive touchscreen LCD display, High Impact PC/ABS with overmold |
| Software/App Updates | Via USB stick |
| Display Unit Operating Time | Up to 8 hours (100% backlight) |
| Display Unit Dimensions | 205 × 140 × 60 mm (8.1 × 5.5 × 2.4 in.) |
| Display Unit Weight | 640 g (1.4 lb) |
| Alignment Method | Horizontal shaft alignment, 3 position measurement (9-12-3), automatic measurement, soft foot |
| Live Correction Values | Vertical and horizontal |
| Extra Features | Machine library, QR code reading, screen orientation flip, automatic PDF report |
| Fixture | 2 × V-brackets with chains, width 21 mm (0.8 in.) |
| Shaft Diameters | 20 to 150 mm (0.8 to 5.9 in.), up to 300 mm (11.8 in.) with optional extension chains |
| Max Coupling Height | 105 mm (4.2 in.) with standard rods, 195 mm (7.7 in.) with extension rods (included) |
| Power Adapter | Input: 100V-240V 50/60Hz AC, Output: DC 12V 3A with EU, US, UK, AUS adapters |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| IP Rating | IP54 |
| Carrying Case Dimensions | 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.) |
| Total Weight (Incl. Case) | 4.75 kg (10.5 lb) |
| Calibration Certificate | Supplied with 2 years validity |

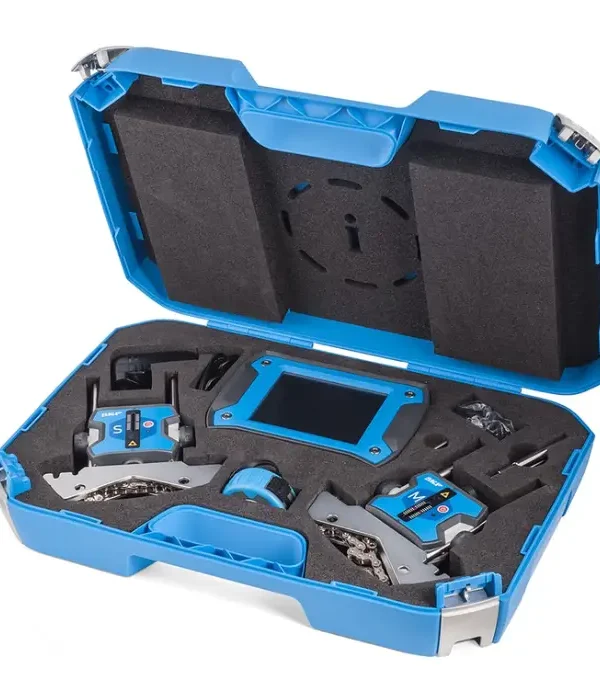

| Case Content | 2 measuring units, display unit, 2 shaft brackets with chains and rods, USB cables, calibration certificate, quick start guide, SKF carrying case, QR code stickers |
