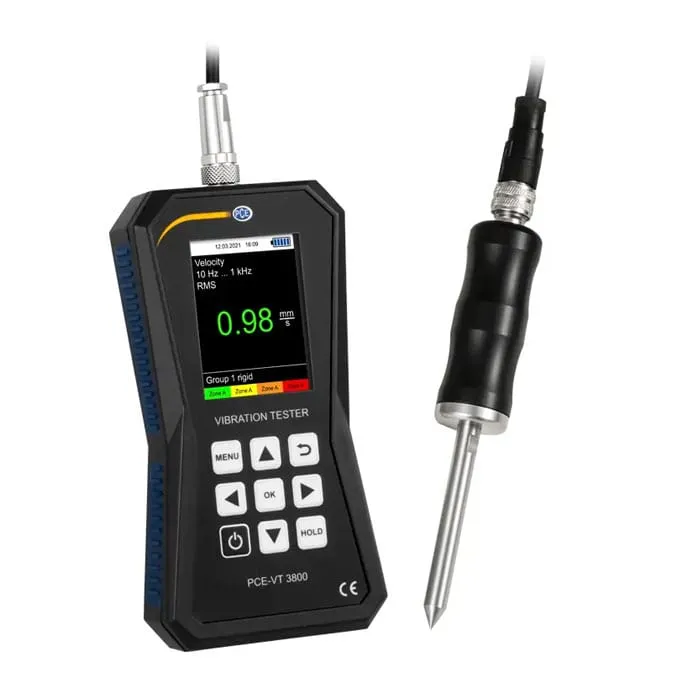

PCE-VT 3800S Accelerometer and Vibration Meter
Brand:
Pce
SKU:
13190
The Accelerometer and Vibration Meter PCE-VT 3800S is the ideal companion for checking vibrating parts, machines, and plants. With the outside vibration sensor of the PCE-VT 3800S, the vibration displacement of up to 3.9 mm, the vibration pace of up to 399.9 mm/s, and the vibration acceleration of up to 399.9 m/s² may be determined. RMS, peak, peak-to-peak, and crest elements are available as measurement parameters on the vibration meter.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Accelerometer and Vibration Meter PCE-VT 3800S
The Accelerometer and Vibration Meter PCE-VT 3800S is the ideal companion for checking vibrating parts, machines, and plants. With the outside vibration sensor of the PCE-VT 3800S, the vibration displacement of up to 3.9 mm, the vibration pace of up to 399.9 mm/s, and the vibration acceleration of up to 399.9 m/s² may be determined. RMS, peak, peak-to-peak, and crest elements are available as measurement parameters on the vibration meter.
Another characteristic of the vibration measuring tool is the automated assessment consistent with ISO 10816-3. Accordingly, the Accelerometer and Vibration Meter PCE-VT 3800S can decide the present-day vibration state of a gadget thru a good/terrible assessment. This way that the vibration meter is used, for example, for restoring and upkeep paintings on machines. The integrated LiPo battery with a capability of 2500 mAh permits a battery lifestyle of up to 20 hours. The LiPo battery may be recharged thru the micro-USB interface at the vibration measuring tool.
In order to process the measured values further, they can be saved directly on the PCE-VT 3800S. Internal memory is available for this. The measured values can be saved manually as well as automatically by the vibration measuring device. After a measurement, the recorded measured values can be read out on a PC. The software for the vibration meter can be used to analyze the measured data using the graphic display and tabular listing. The measurement data can be exported as a CSV file for further processing. If a firmware update is available for the Accelerometer and Vibration Meter PCE-VT 3800S, this can also be carried out directly via the software.
Features
- Data logger function
- Automatic ISO 10816-3 evaluation
- Measuring range up to 399.9 m/s² / 15744 in/s²
- Hand-held device for mobile vibration measurement
- Rechargeable battery
- 2.48″ LC display
datasheet
datasheet
specifications
specifications
| Vibration Meter Specifications | |
|---|---|
| Acceleration | 0.0 … 399.9 m/s² (0.0 – 15,744 in/s²) |
| Velocity | 0.00 … 399.9 mm/s (0.00 – 15.74 in/s) |
| Displacement | 0.000 … 3.9 mm (0.000 – 0.154 in) |
| Data Logger | Various start/stop triggers; measurement interval 1 s … 12 h; 50 memory locations with up to 43,200 measured values each |
| Power Supply | Internal: LiPo battery (3.7 V, 2500 mAh); External: USB 5 V DC, 500 mA |
| Dimensions | 165 × 85 × 32 mm (6.5 × 3.3 × 1.3″) |
| Weight | 239 g (8.4 oz) |
| Technical Data — Vibration Sensor | |
| Resonance Frequency | 24 kHz |
| Transverse Sensitivity | ≤ 5% |
| Destruction Limit | 5000 g (peak) |
| Operating / Storage Temperature | −55 °C … +150 °C (−67 °F … +302 °F) |
| Housing Material | Stainless steel |
| Mounting Thread | ¼–28″ |
| Sensor Dimensions | Ø 17 × 46 mm (0.67 × 1.8″) |
| Sensor Weight (without cable) | 52 g (1.8 oz) |
