Description

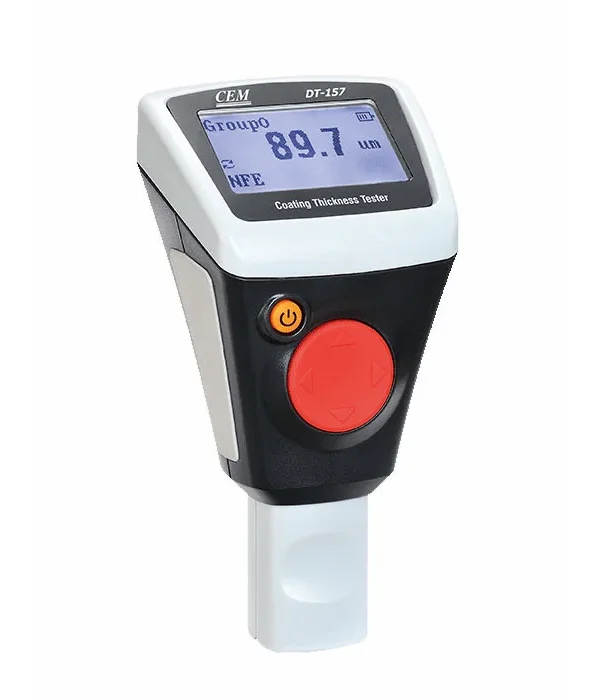

CEM DT-157 Coating Thickness Tester

The CEM DT-157 Coating Thickness Tester is specifically designed for accurately measuring the thickness of coatings on both ferrous and non-ferrous metals. This makes it highly versatile for use in various industrial applications where such measurements are critical.The DT-157 is commonly utilized in sectors like automotive, aerospace, manufacturing, and construction, where ensuring the proper application of coatings is essential for product durability and adherence to regulatory requirements.

CEM DT-157 Key Features

Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
Statistic Display: AVG, MAX, MIN, NO., S.DEV
One point calibration, two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
Memory for 2500 readings (50 GROUP readings)
4 levels of battery indication
Error indication
Bluetooth interface
Easily adapt to lighting conditions with 8 levels of backlight

CEM DT-157 Specifications

Specifications:
Sensor probe	F	N
Working principle	magnetic induction	Eddy current principle
Measuring range	0~2000um	0~2000um
Guaranteed tolerance (of reading)	(+/- 2%+2)um	(+/- 2%+2)um
Repeatability	(+/- 1%+1)um	(+/- 1%+1)um
Low range Precision	0.1um	0.1um
Minimum curvature radius	1.5mm	3mm
Diameter of the Minimum area	7mm	5mm
Basic critical thickness	0.5mm	0.3mm
