DEEPSEA DSE2548 Control Module Very Professional!

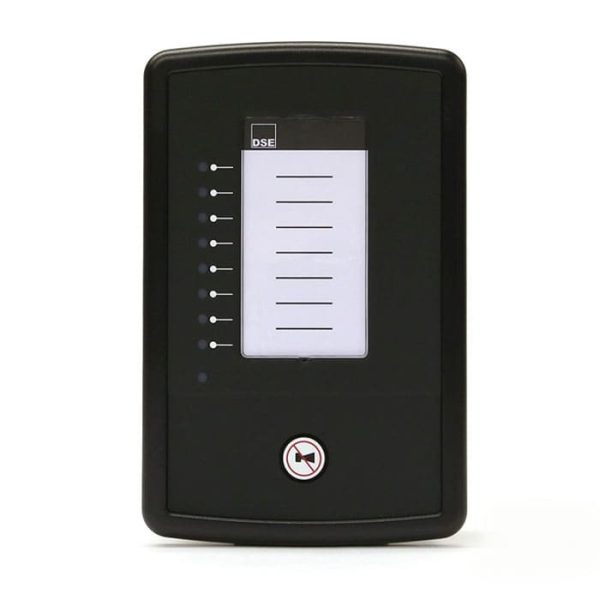

The DSE2548 is an LED expansion module that can be used with all DSENet® compatible control modules. The module has been designed to display a maximum of eight individual LED indications up to a maximum distance of 1 KM (0.6miles). The DSE2548 is presented in a vertical enclosure. It includes an alarm sounder that is triggered when the host controller detects an alarm condition. The alarm can be muted directly from the DSE2548 using the front push button.

DEEPSEA DSE2548 Control Module specifications:

• CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
• MAXIMUM OPERATING CURRENT: 112 mA at 12 V, 53 mA at 24
• MAXIMUM STANDBY CURRENT: 74 mA at 12 V, 35 mA at 24 V
• OVERALL SIZE: 180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”)
• PANEL CUTOUT SIZE: 154 mm x 98 mm (6.0” x 3.9”)
• MAXIMUM PANEL THICKNESS: 8.0mm (0.3”)
• WEIGHT: 0.36kg
• PRODUCT VARIANTS: 2548-01 – 2548 Output Expansion Module
• CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
