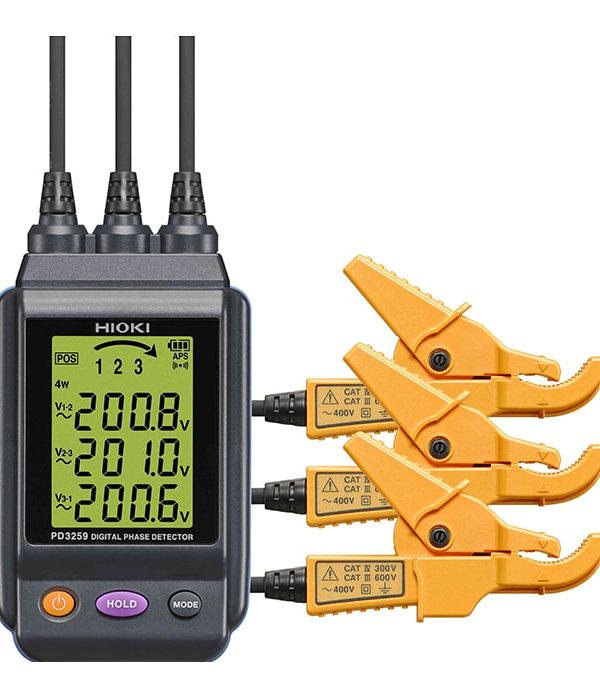

Hioki PD3259-50 Digital Phase Detector

Overview

The Hioki PD3259-50 is a digital phase detector that uses non-contact voltage detection and measurement technology to prioritise efficiency and safety for on-site electrical work such as renovations and installations. It measures voltage, frequency and phase sequence without metallic contact, on insulated conductors from 6 to 30 mm in diameter. With CAT IV 600 V safety, a fast 3-second response and a clear digital display, the PD3259-50 is a dependable, efficient tool for verifying phase and voltage during electrical work.

Key Features

• Non-contact voltage, frequency and phase-sequence detection
• Works on insulated conductors from 6 to 30 mm diameter
• Voltage accuracy ±2.0% rdg. and frequency accuracy ±0.5% rdg.
• Fast response of 3 seconds or less
• CAT IV 600 V safety rating
• Clear digital display with 500 ms update rate

Applications

• Non-contact phase-sequence and voltage verification
• Renovation and installation electrical work
• Motor-rotation and commissioning checks
• Electrical maintenance and troubleshooting

What’s in the Box

• PD3259-50 Digital Phase Detector
• LR6 (AA) alkaline batteries ×4
• Instruction manual

Specifications
