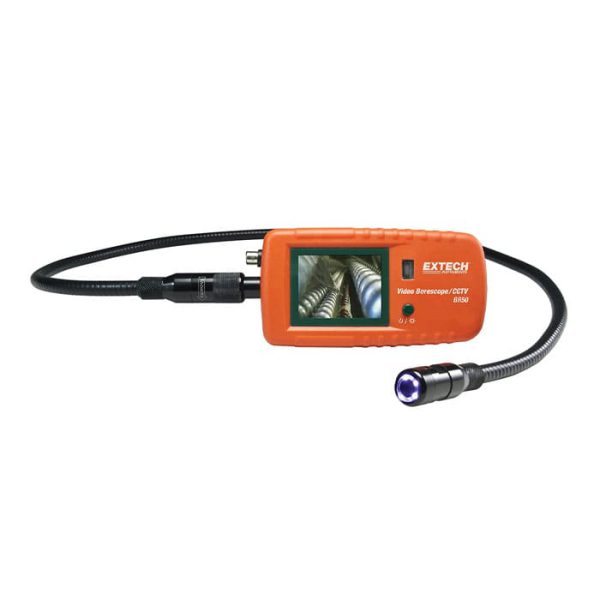

EXTECH BR50 Video Borescope
2 Comments
EXTECH BR50 Video Borescope key features:
- 17mm diameter camera head with 39″ (1m) flexible gooseneck cable retains configured shape
- Four LED lamps with five brightness levels illuminate the viewed object
- Glare-free close-up field of view with 480 x 234 pixel display
- Automatically detects NTSC and PAL cameras
- Complete with rechargeable Lithium battery, and Universal AC adapter/charger with USB cable
Terms of sending goods ›
This product is discontinued.
Order Via phone number
Order Via Online Form
Estimated Delivery: 2–4 business weeks
Description
EXTECH BR50 Video Borescope
BR50 is a Video borescope and camera tester with a 17mm camera diameter and 2.4 in. Color TFT LCD Monitor. Can also test installed surveillance cameras for correct target alignment. Applications include: Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location; HVAC: Inspect inside ducts, behind motors and compressors; Automotive: View inside or around engines and transmissions; Government: Safety and security inspections; Industrial: Inspect weld integrity, process equipment, gears, molding machines; Aerospace: Aircraft inspections for contamination, debris, cracks or other damage.
Additional information
| probe__diameter (borescope) |
6–8 mm |
|---|---|
| cable__length (borescope) |
1–2 m |
datasheet
datasheet
specifications
specifications
| Specification | Value |
|---|---|
| Sensor size | ¼” CMOS |
| Sensor pixels | 300,000 |
| Maximum frame rate | 30 FPS |
| Color resolution | 24 Bit |
| Focusing method | Fixed focus 15 – 25 cm (5.9″ – 9.8″) |
| Gooseneck length | 1 m (39″) |
| Camera diameter | 17 mm (0.66″) |
| LCD Display | 2.4″ Color LCD |
| Display resolution | 480 × 234 pixels |
| Active display area | 48 × 35.6 mm (1.9 × 1.4″) |
| Light source | 4 LEDs |
| Adjustable light intensity | 6 illumination levels |
| Video format | NTSC / PAL (automatic conversion) |
| Power supply | Rechargeable 1800 mAh lithium battery |
| Current consumption | 400 mA max. |
| Standby current | 5 mA max. |
| Low battery warning | Voltage falls below 3.3 V |
| Operating temperature | 32°F – 122°F (0°C – 50°C) |
| Relative humidity | 85% max. |
