EXTECH HDV640W VideoScope Kit

EXTECH HDV640W VideoScope Kit

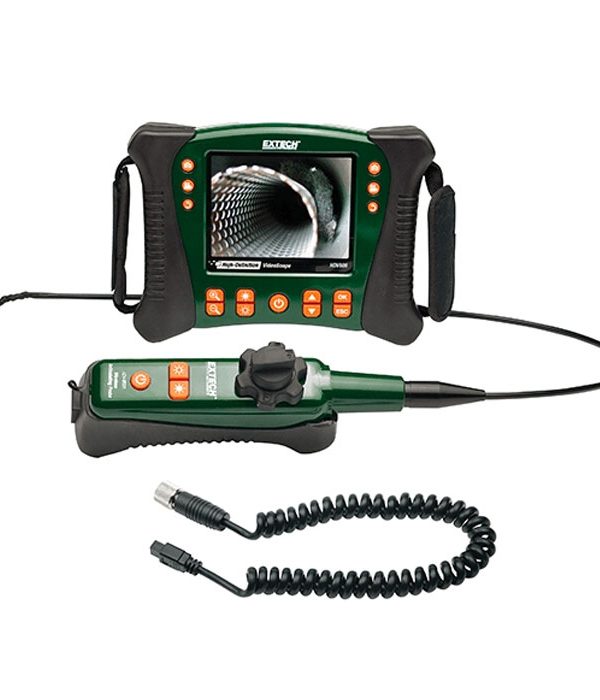

The Extech HDV640W Kit includes an Inspection Camera with Wireless Handset and a 6mm Semi-Rigid, Articulating (240°) Probe (1m) with a macro lens and an HDV600 VideoScope with 5.7 in. color LCD TFT with high definition 640 x 480 resolution. The wireless transmitter allows the user to transmit video up to 100 ft. (30 m) from the measurement point to your monitor.

The compact, high-resolution water-proof camera probe features an articulating tip that adjusts up to 240° viewing angle and has four built-in bright LED lamps with dimmer to illuminate the viewed objects. It provides a glare-free close-up field of view.

EXTECH HDV640W VideoScope Kit key features

• Wireless handset with nondetachable 6mm semi-rigid probe (1m) with the macro lens
• The wireless transmitter allows transmitting video up to 100ft (30m) from the measurement point to your monitor
• Articulating probe tip adjusts up to 240° viewing angle
• HDV600 VideoScope with 5.7″ color LCD TFT with high definition 640 x 480 VGA pixel resolution
• The compact, high-resolution water-proof camera probe
• Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
• Glare-free close-up field of view
• SD memory card included storing more than 15,000 images
• Video recording (up to 4 hours) with voice annotation
• AV output for viewing images and video directly on a monitor

EXTECH-HDV640W VideoScope Kit specifications

• Minimum Focus distance 2.36″ (60mm); macro: 0.59” (15mm)
• Field of View 65°
• Shaft diameter 0.24″ (6mm)
• Working length 39″ (1m)
• Camera Tip bending 240° (120° left, 120° right)
• LCD Color TFT Display 5.7″ (14.5cm) size; 5.3″ (13.5cm) viewable
• Pixels 640 x 480 VGA pixel resolution (320 x 240 for 4mm camera)
• Frame Rate 30 fps frame rate (NTSC & PAL)
• SD Card 2GB SD memory card included (supports up to 32GB SD storage)
• Operating up to 4 hours of AVI video
