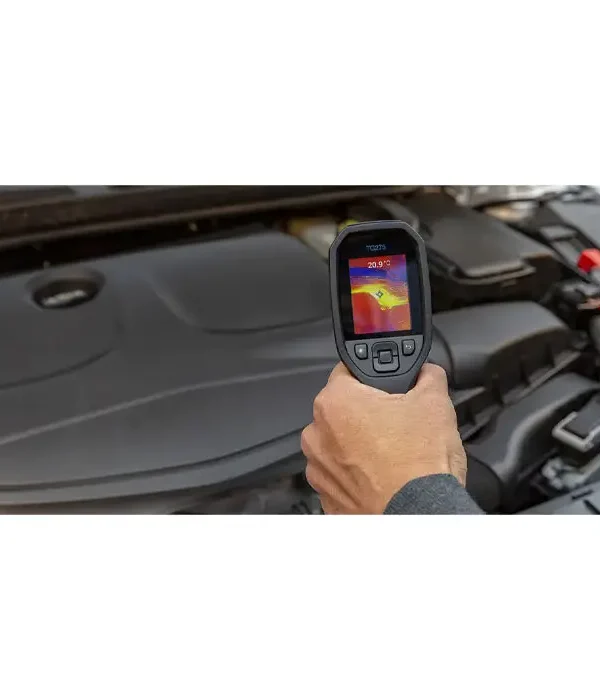

FLIR TG275 Thermal Camera for Automotive Diagnostics

(1 customer review)

Short Description:

FLIR TG275  for Automotive Diagnostics Key features:

  • identify problems quickly
  • superior image quality
  • at an affordable price
Product purchase
SKU: 6855 Category:
Brand:Flir

Call for Best Price In UAE 00971(04) 447 6031 00971(04) 344 9868

10 People watching this product now!
Terms of sending goods ›
  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

FLIR TG275 Thermal Camera for Automotive Diagnostics

Automotive service and repair personnel that want to expedite the diagnostic process and prevent undiscovered issues can use the FLIR TG275. IGMTM (Infrared Guided Measurement) is a diagnostic tool that combines thermal imaging with non-contact temperature measurement to help you troubleshoot repairs, identify future failures, and record photos to reassure your clients that the issue has been fixed.

This affordable thermal imager is ideal for diagnosing problems in relays and switches, drained batteries, powertrain components, HVAC systems (vents), and many other problems. To get information about the FLIR tg275 price you can contact us through mme.

FLIR TG 275 Thermal Camera for Automotive Diagnostics Key features:

  • Identify problems quickly
  • Superior image quality
  • At an affordable price
  • Thermal imaging automotive diagnostics
  • Automotive thermal imaging camera

tg275 flir automotive diagnostic thermal camera Specifications:

  • IR resolution: 160 × 120 (19,200 pixels)
  • Thermal sensitivity/NETD: <70 mK
  • Field of View (FOV): 57° × 44°
  • Distance-to-spot ratio: 30:1
  • Minimum focus distance: 0.3 m (0.98 ft.)
  • Imaging range : –25°C to 550°C (–13°F to 1022°F)
  • Image frequency: 8.7 Hz
  • Focus: Fixed
  • Digital camera : 2 MP, 71° × 56° FOV

datasheet

Data Sheet

Specifications

Technical Specifications of the Thermal Imaging Device
Category Specification Details
IMAGING & OPTICAL IR Resolution 160 × 120 pixels
Thermal Sensitivity/NETD <70 mK
Field of view (FOV) 57° × 44°
Minimum Focus Distance 0.3 m (0.98 ft)
Minimum Measurement Distance 0.26 m (0.85 ft)
Image Modes MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading
Display 320 × 240 pixel, 2.4 in color LCD
Storage Media eMMC 4 GB
Color Palettes Iron, Rainbow, White hot, Black hot, Arctic, Lava
Detector Type Focal plane array (FPA), uncooled microbolometer
Detector Pitch 12 µm
Digital Image Enhancement Yes
Focus Focus free
Laser Class 1 laser indicates the temperature measurement area; button-activated
Gallery Yes
MEASUREMENT & ANALYSIS Accuracy ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F)
Camera size (L x W x H) 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in)
Camera weight incl battery 0.394 kg (13.9 oz)
Emissivity Correction Yes: 4 preset levels with custom adjustment of 0.1–0.99
Object Temperature Range -25°C to 550°C (-13°F to 1022°F)
Spot Meter Center spot on/off
USER INTERFACE Display 320 × 240 pixel, 2.4 in color LCD
Languages Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Set-up Commands Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images
POWER Battery Type Rechargeable Li ion battery
Battery Voltage 3.7 V
Battery Charge Life 30 days minimum
Battery Operating Time 5 hours continuous scanning, 4.5 hours with laser on
Charging System Battery is charged inside the camera
ENVIRONMENTAL & CERTIFICATIONS Drop test Designed for 2 m (6.6 ft)
EMC EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
Encapsulation IP 54 (IEC60529)
Humidity (Operating and Storage) 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F); Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
Radio Spectrum ETSI EN 300 328, FCC Part 15.249, RSS-247 Issue 2, EN 301 489-1:2011, EN 301 489-17:2009
Safety CE/CB/EN61010/UL
Shock 25 g (IEC 60068-2-27)
GENERAL Included Items TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
