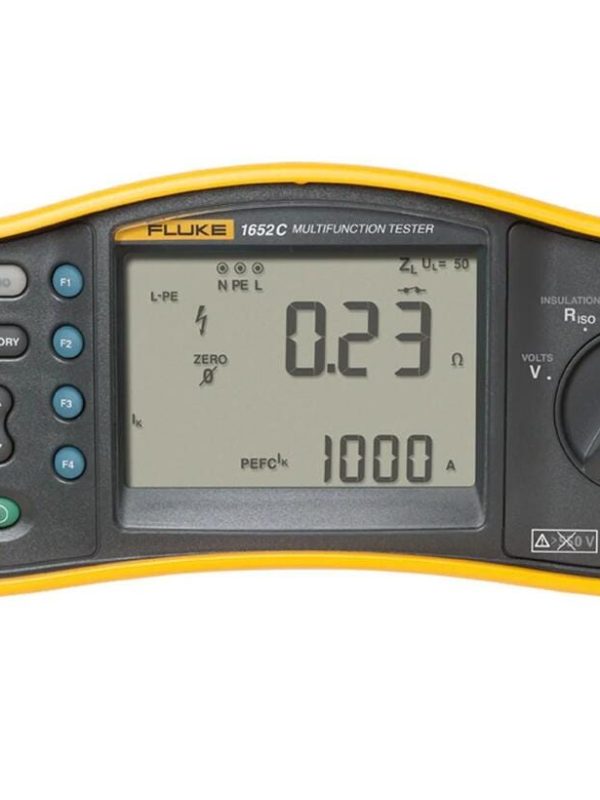

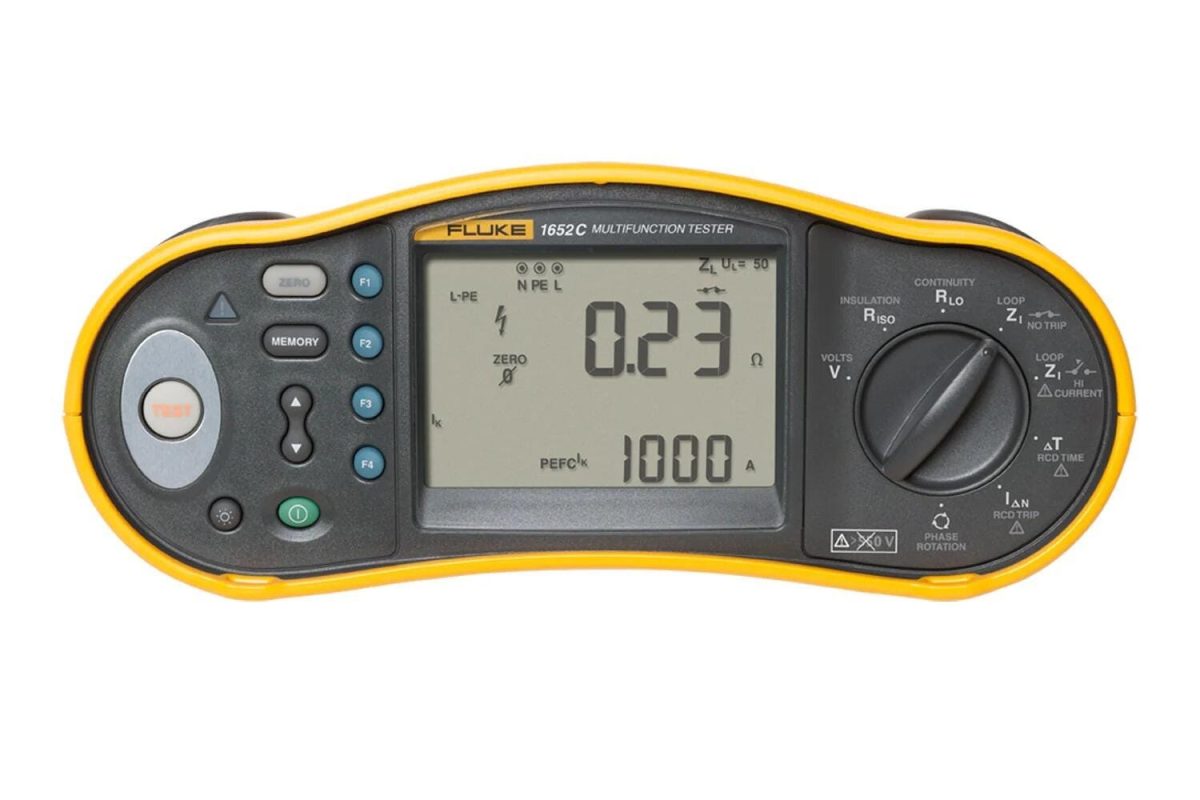

Description

The Fluke 1652C Multifunction Installation Tester is a versatile and reliable tool for electrical technicians and engineers. With its advanced features and high accuracy, it is designed to meet the demands of modern electrical testing and installation.

Whether you’re working on residential, commercial, or industrial projects, the Fluke 1652C is the perfect companion for ensuring electrical safety and efficiency.

Fluke 1652C Key Features

The Fluke 1652C boasts a range of advanced features, including:

AC voltage measurement with ±(0.8% + 3 digits) accuracy
Continuity testing with > 200 mA test current
Insulation resistance measurement with 50 – 100 – 250 – 500 – 1000 V test voltage
Loop impedance measurement with ±(3% + 6 digits) accuracy
RCD testing with ±(1% reading + 1 digit) trip time accuracy

Who Needs the Fluke 1652C?

The Fluke 1652C is designed for electrical technicians and engineers who require a reliable and accurate tool for testing and installation. Whether you’re working on residential, commercial, or industrial projects, this multifunction installation tester is the perfect companion for ensuring electrical safety and efficiency.

Fluke 1652C Applications

Residential electrical installations – ensure safe and efficient electrical systems in homes and apartments
Commercial electrical installations – meet the demands of busy office buildings and retail spaces
Industrial electrical installations – ensure safe and efficient electrical systems in factories and manufacturing facilities
Electrical maintenance and testing – identify and diagnose electrical issues quickly and accurately
Electrical safety inspections – ensure compliance with international safety standards

Why Buy Fluke 1652C from MME?

At MME, we offer the Fluke 1652C Multifunction Installation Tester at competitive prices, along with expert advice and support. Whether you’re a seasoned electrical professional or just starting out, we’re here to help you find the right tool for the job.

Fluke 1652C Specifications

Specifications
AC voltage measurement	Range	500 V
	Resolution	0.1 V
	Accuracy (50 – 60 Hz)	±(0.8% + 3 digits)
	Input impedance	3.3 MΩ
	Overload protection	660 Vrms
Continuity testing	Range (autoranging)	20 Ω, 200 Ω, 2000 Ω
	Resolution	0.01 Ω, 0.1 Ω, 1 Ω
	Test current	> 200 mA
	Open circuit voltage	> 4 V
	Accuracy	±(1.5%+3 digits)
Insulation Resistance Measurement
Test voltage	Fluke 1652C	250 – 500 – 1000 V
Test voltage	Fluke 1653B + 1654B	50 – 100 – 250 – 500 – 1000 V
Test voltage (50 V)	Test current	1 mA @ 50 kΩ
	Insulation range	10 kΩ – 50 мΩ
	Resolution	0.01 мΩ
	Accuracy	±(3% + 3 digits)
Test voltage (100 V)	Test current	1 mA @ 100 kΩ
	Range/Resolution	20 MΩ/0.01 MΩ / 100 MΩ/0.1 MΩ
	Accuracy	±(3% + 3 digits)
Test voltage ( 250 V)	Test current	1 mA @ 250 kΩ
	Range/Resolution	20 MΩ/0.01 MΩ /200 MΩ/0.1 MΩ
	Accuracy	±(1.5% + 3 digits)
Test voltage (500 V)	Test current	1 mA @ 500 kΩ
	Range/Resolution	20 MΩ/0.01 MΩ
	Range/Resolution	200 MΩ/0.1 MΩ
	Accuracy	±(1.5% + 3 digits)
	Range/Resolution	500 MΩ/1 MΩ
	Accuracy	10%
Test voltage (1000 V)	Test current	1 mA @ 1 MΩ
	Range/Resolution	20 MΩ/0.01 MΩ
	Range/Resolution	200 MΩ/0.1 MΩ
	Accuracy	±(1.5% + 3 digits)
	Range/Resolution	500 MΩ/1 MΩ
	Accuracy	10%
Auto discharge	Discharge time constant, 0.5 second for C = 1 µF or less
Live circuit detection	Inhibits test if terminal voltage > 30 V prior to initiation of test
Maximum capacitive load	Operable with the 5 µF load
Loop Impedance Measurement (High Current Mode and Non-Trip Mode)
	Range	100 – 500 VAC (50/60 Hz)
	Input connection	Soft Key selection
	Loop impedance	Phase to earth
	Line impedance	Phase to neutral
	Limit on consecutive tests	Automatic thermal shutdown after 50 consecutive tests at 10 second intervals (typical)

	Range/Resolution (High Current)	20 Ω/0.001Ω (1mΩ) (Fluke 1654B)
	Range/Resolution	20 Ω/0.01 Ω
	Range/Resolution	200 Ω/0.1 Ω
	Range/Resolution	2000 Ω/1 Ω

	Accuracy (no Trip mode)	±(3% + 6 digits)
	Accuracy (Hi Current mode)	±(2% + 4 digits)
	Accuracy (Hi Current mode 1mΩ)	±(2% + 15 digits) (Fluke 1654B)
PFC, PSC Test	Computation	PFC or PSC determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance
	Range	0 – 25 kA
	Resolution (I_k < 1000 A)	1 A
	Resolution (I_k >= 1000 A)	0.1 kA
	Accuracy	Determined by accuracy of loop resistance and mains voltage measurements.
RCD Testing ¹	Fluke 1654B	A, AC, B, B+, F, G/R, S
	Fluke 1652C	A, AC, F, G/R, S
	Fluke 1653B	A, AC, F, G/R, S
Tripping Time Test (ΔT)
Trip time accuracy	±(1% Reading + 1 digit)
Multiplier: x ½	Current Settings	10, 30, 100, 300, 500, 1000 mA
	Current Accuracy	+0% – 10%
	RCD Type ¹	G
	Measurement Range	310 ms (Europe), 2000 ms (UK)
	RCD Type ¹	S
	Measurement Range	510 ms (Europe), 2000 ms (UK)
Multiplier: x 1	Current Settings	10, 30, 100, 300, 500, 1000 mA
	Current Accuracy	+10% – 0%
	RCD Type ¹	G
	Measurement Range	310 ms
	RCD Type ¹	S
	Measurement Range	510 ms
Multiplier: x 5	Current Settings	10, 30 mA
	Current Accuracy	±10%
	RCD Type ¹	G
	Measurement Range	50 ms
	RCD Type ¹	S
	Measurement Range	160 ms
Tripping Current (ramp)
Current range	50% – 110% of RCD’s rated current
Step Size	10% of I_ΔN
Dwell time (Type G) ¹	300 ms / step
Dwell time (Type S) ¹	500 ms / step
Trip current measurement zccuracy	±5%
Earth Resistance Test (R_E) – Fluke 1653B + 1654B
Range/Resolution	200 Ω/0.1 Ω
Accuracy	±(2% + 5 digits)
Range/Resolution	2000 Ω/1 Ω
Accuracy	±(3.5% + 10 digits)
Frequency	128 Hz
Compliance voltage	+25 V
Phase Sequence Indication
Icon	Icon Phase Sequence indicator is active
Display of Phase Sequence	Displays ‘1-2-3’ in digital display field for correct sequence
	Displays ‘3-2-1’ for incorrect phase
	Dashes in place of a number indicate a valid determination could not be made
¹ RCD Types
G	General, no delay
S	Time delay
A	Responds to pulsed signal
AC	Responds to AC
B	1654B
Environmental Specifications
Operating temperature	-10 °C to 40 °C
Humidity (without condensation)	10 to 30 °C	95%
Humidity (without condensation)	30 to 40 °C	75%
Safety Specifications
Safety Rating	EN 61010-I CAT III 500V, CAT IV 300V
Mechanical and General Specifications
Size (L x W x H)	10 x 25 x 12.5 cm
Weight	1.3 kg
Batteries	Type AA: 6
Warranty	3 years
Battery type	Alkaline supplied, usable with 1.2V NiCD or NiMH rechargeable batteries
