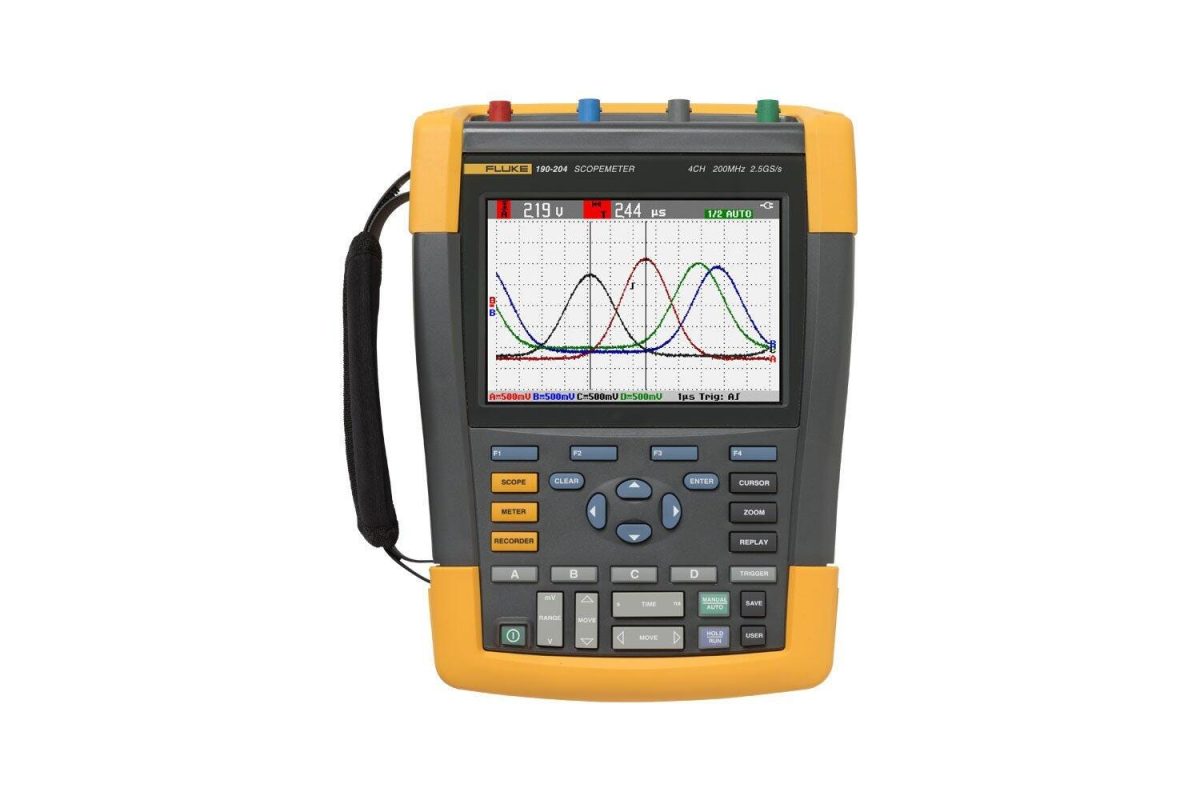

Description

The Fluke 190-204 ScopeMeter Test Tool is a versatile and accurate instrument designed for a wide range of applications. With its high bandwidth and real-time sample rate, it provides detailed measurements and analysis of complex signals.

Whether you’re working in electrical, electronics, or industrial maintenance, the Fluke 190-204 is an essential tool for any professional.

Fluke 190-204 Key Features

The Fluke 190-204 ScopeMeter Test Tool boasts an impressive array of features, including:

200 MHz bandwidth for accurate signal analysis
4 channels for simultaneous measurement and analysis
2.5 GS/s real-time sample rate for detailed signal capture
Up to 1000 V CAT III/600 V CAT IV isolation for safe and reliable measurements
2 ns – 2 min/div timebase range for precise timebase control
2 mV-100 V/div input sensitivity for accurate signal measurement
8 ns glitch capture for detailed analysis of transient signals

Who Needs the Fluke 190-204?

The Fluke 190-204 ScopeMeter Test Tool is designed for professionals working in electrical, electronics, and industrial maintenance. Its advanced features and accurate measurements make it an essential tool for any technician or engineer.

Fluke 190-204 Applications

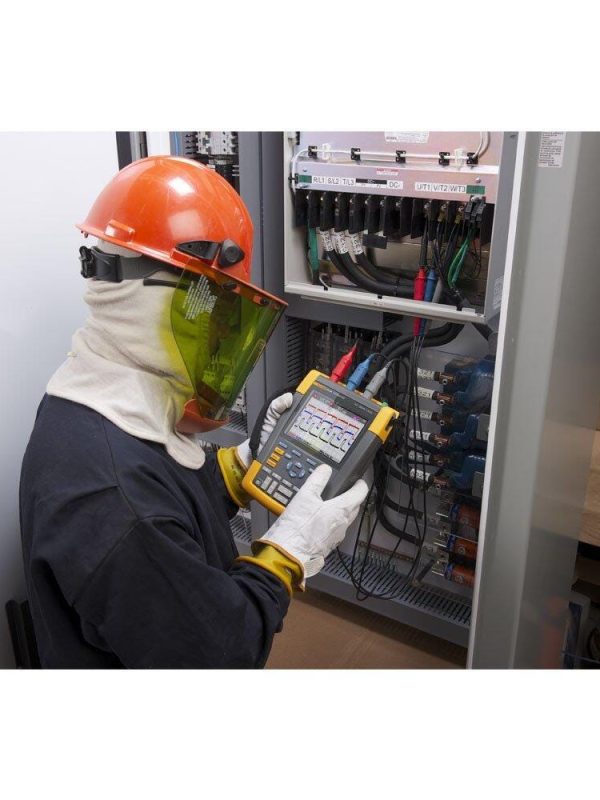

Electrical power distribution and transmission – measure voltage, current, and power quality
Electronics and semiconductor manufacturing – analyze signal integrity and troubleshoot complex circuits
Industrial maintenance and repair – diagnose and repair electrical and mechanical systems
Research and development – test and analyze new technologies and prototypes
Education and training – teach students about electrical and electronics principles

Why Buy Fluke 190-204 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 190-204 ScopeMeter Test Tool at competitive prices, along with expert support and service. Our team of professionals is dedicated to helping you find the right tool for your needs.

Fluke 190-204 Specifications

Specifications
Bandwidth	200 MHz
Number of channels	200 MHz: 4 channels
Real-time sample rate	2.5 GS/s
Inputs	4 scope plus DMM input
Independently floating isolated inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase range	2 ns – 2 min/div
Input sensitivity	2 mV-100 V/div
Trigger types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger source	Any scope input channel
Glitch capture	8 ns
Scope measurements	Cursor: 7
Scope measurements	Automatic: 30
Maximum record length	ScopeRecord mode: 30,000 pts
Maximum record length	Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform compare	Waveform reference with automatic Pass/Fail testing
Environmental Specifications
Operating temperature	0°C to 40°C Including Batteries
Operating temperature	0°C to 50°C Excluding Batteries
Storage temperature	-20°C to +60°C
Operating altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
Operating altitude	Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
Safety Specifications
Electrical safety	1,000V CAT III/600V CAT IV (EN61010-1)
Mechanical and General Specifications
Size	270 x 190 x 70 mm
Weight	2.2 kg
Warranty	3-years on main instrument, 1-year on accessories
Li-Ion battery	BP291 4800 mAh battery up to 7 hours included standard
Included Accessories
	VPS410 Voltage Probe Sets (one red, one blue, one grey, one green)
	BC190 Battery Charger/mains Adapter
	BP291 4800 mAh high capacity Li-ion Battery
	Handstrap (affixed to instrument)
	Hangstrap
	Multi-Language User Manuals on CD-Rom
	FlukeView ScopeMeter® demo package (restricted functionality)

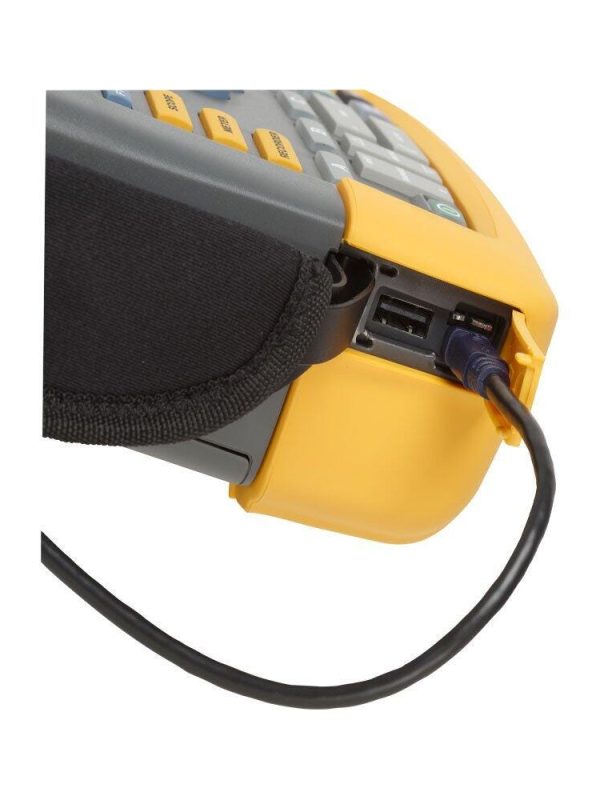

	USB Interface Cable
Warranty	Three years on main instrument, one year on accessories

Datasheet

Datasheet (PDF)PDF

User Manual

User manual (PDF)PDF
