Description

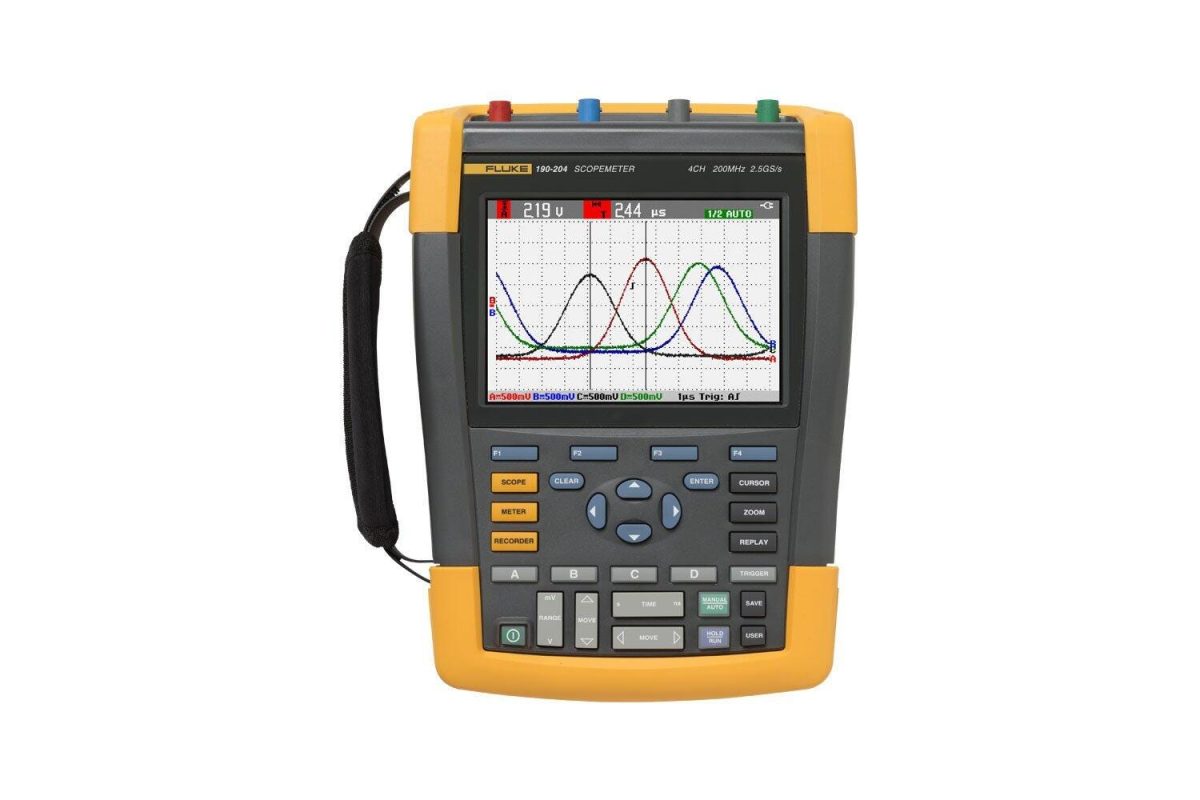

The Fluke 190-504 is a versatile 500 MHz ScopeMeter Test Tool designed for technicians and engineers who require accurate measurements in a variety of applications.

With its high bandwidth and real-time sample rate, this instrument is ideal for capturing and analyzing complex waveforms, making it an essential tool for any professional.

Fluke 190-504 Key Features

The Fluke 190-504 boasts a range of impressive features, including:

500 MHz bandwidth
4 channels
5 GS/s real-time sample rate
Up to 1000 V CAT III/600 V CAT IV isolation
2 mV-100 V/div input sensitivity
8 ns glitch capture
30,000 pts per input scope record length

Who Needs the Fluke 190-504?

The Fluke 190-504 is designed for professionals who require accurate and reliable measurements in a variety of applications, including:

Electrical and electronics testing, maintenance, and repair.

Fluke 190-504 Applications

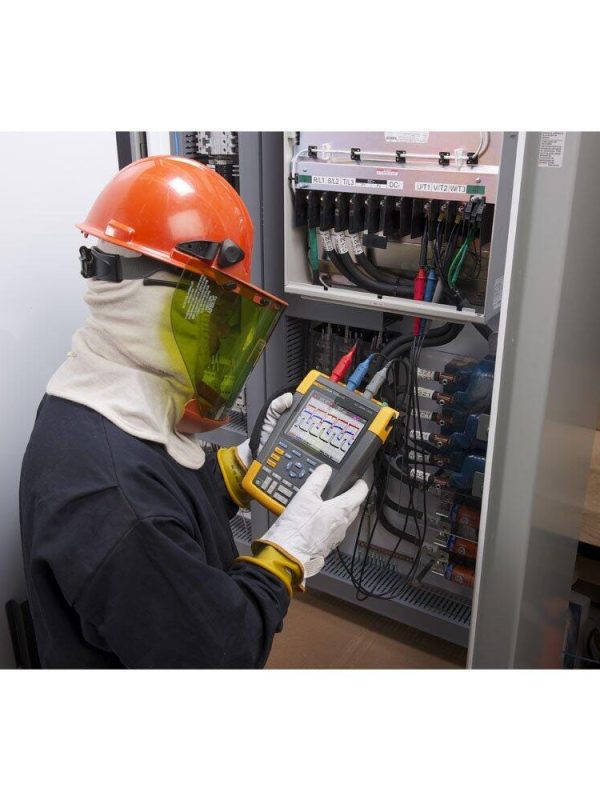

Use for electrical and electronics testing in industrial, commercial, and residential settings.
Perform maintenance and repair on complex electrical systems.
Test and analyze electrical signals and waveforms.
Measure and record electrical parameters, such as voltage, current, and frequency.
Diagnose and troubleshoot electrical issues and faults.
Verify and validate electrical system performance and functionality.
Conduct research and development in electrical and electronics engineering.

Why Buy Fluke 190-504 from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke 190-504 at competitive prices, along with exceptional customer service and support.

Fluke 190-504 Specifications

Specifications
Bandwidth	500 MHz
Number of channels	500 MHz: 4 channels
Real-time sample rate	5 GS/s
Inputs	4x BNc input scope plus DMM input
Independently floating isolated inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Input sensitivity	2 mV-100 V/div plus variable attentuation
Trigger types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger source	4x BNC input
Glitch capture	8 ns
Scope measurements	Cursor: 7
Scope measurements	Automatic: 30
Maximum record length	ScopeRecord mode: 30,000 pts per input
Maximum record length	Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform compare	Waveform reference with automatic Pass/Fail testing
DMM Specification
Meter inputs	BNC inputs function as DMM input
Maximum resolution	999 counts
Measurements	VDC, VAC rms, VAC + DC rms, Current (through clamp or shunt), Temperature °C or °F (using optional converter)
Memory	Screen + Setup: 30
Memory	Recording: 10
Display	153 mm full color LCD with fast update rate
Environmental Specifications
Operating temperature	0 °C to 40 °C Including Batteries
Operating temperature	0 °C to 50 °C Excluding Batteries
Storage temperature	-20 °C to +60 °C
Operating altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V/ CAT III 1000 V
Operating altitude	Up to 3,000 m (10,000 ft) for CAT III 600 V/ CAT II 1000 V
Safety Specifications
Electrical safety	1,000 V CAT III/600 V CAT IV (EN61010-1)
Mechanical and General Specifications
Size	270 x 190 x 70 mm
Weight	2.2 kg
Warranty	Three-years on main instrument
Li-Ion battery	BP 291 (4800mAh)
Included Accessories
	VPS410 Voltage Probe Sets (one red, one blue)
	BC190 Battery Charger/mains Adapter
	BP291, 4800 mAh Li-Ion battery
	Handstrap (affixed to instrument)
	Hangstrap
	Multi-Language User Manuals on CD-Rom
	FlukeView ScopeMeter® demo package (restricted functionality)

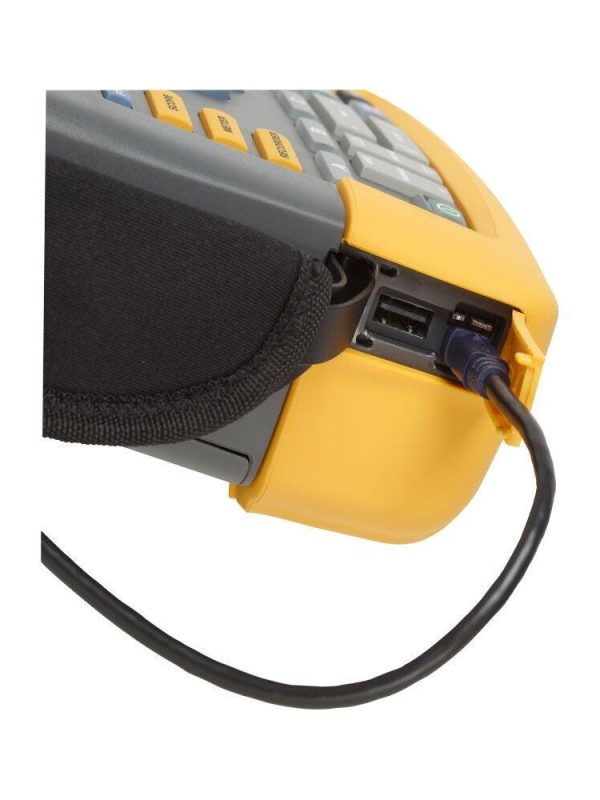

	USB Interface Cable
Warranty	One year on accessories
