Description

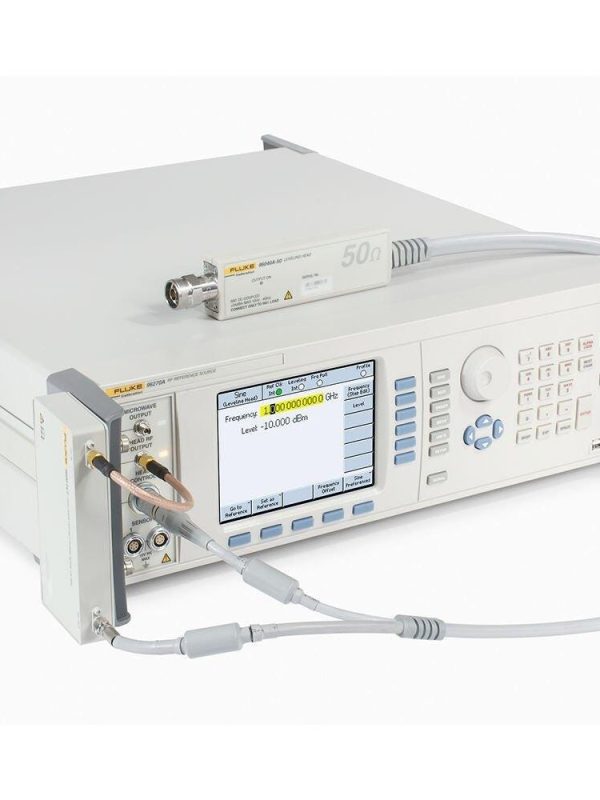

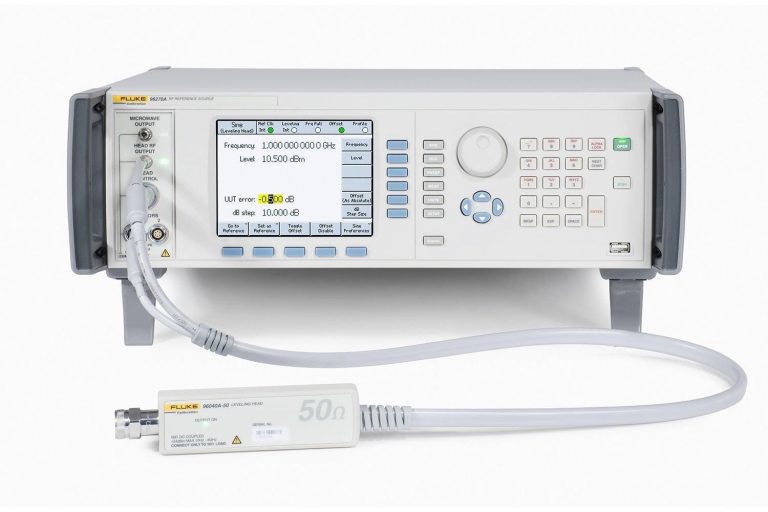

The Fluke 96270A 27 GHz Low Phase Noise Reference Source is a high-performance instrument designed for microwave applications. With a frequency range of 1 mHz to 27 GHz, this reference source provides accurate and stable frequency signals for a variety of applications.

Whether you’re working in research and development, manufacturing, or testing, the Fluke 96270A is an essential tool for ensuring the accuracy and reliability of your measurements.

Fluke 96270A Key Features

The Fluke 96270A offers a range of key features that make it an ideal choice for microwave applications.

Frequency range: 1 mHz to 27 GHz
Leveling head output: 1 mHz to 4 GHz
Resolution: 10 µHz
Frequency accuracy: ± 0.05 ppm ± 5 µHz
Level accuracy: ± 0.03 dB to 100 kHz

Who Needs the Fluke 96270A?

The Fluke 96270A is designed for use in a variety of applications, including research and development, manufacturing, and testing.

Whether you’re working in a laboratory, on a production line, or in a testing environment, the Fluke 96270A is an essential tool for ensuring the accuracy and reliability of your measurements.

Fluke 96270A Applications

Wireless communication systems: The Fluke 96270A is ideal for use in wireless communication systems, where accurate and stable frequency signals are critical.
Radar systems: The Fluke 96270A is also suitable for use in radar systems, where high-frequency accuracy is required.
Satellite communications: The Fluke 96270A can be used in satellite communications, where precise frequency control is essential.
Microwave oven testing: The Fluke 96270A is also used in microwave oven testing, where accurate frequency measurement is critical.
Other applications: The Fluke 96270A can be used in a variety of other applications, including research and development, manufacturing, and testing.

Why Buy the Fluke 96270A from MME?

The Fluke 96270A is a high-performance instrument that offers accurate and stable frequency signals for a variety of applications.

At MME, we offer the Fluke 96270A at competitive prices, along with expert support and service to ensure that you get the most out of your investment.

Fluke 96270A Specifications

96270A summary specifications*
	Frequency specifications	Level specifications
Frequency/ Level Range	Leveling Head O/P [50 Ω]: 1 mHz to 4 GHz Microwave O/P Direct: 1 mHz to 27 GHz [with LL option] Microwave O/P with HF option: 1 kHz to 27 GHz [with LL option]	-130 to +24 dBm to 125 MHz, +14 dBm at 4 GHz -4 [-100] to +24 dBm, >1.4 GHz: +20 dBm, [>20 GHz: +18 dBm] -10 [-35] to +18 dBm, >1.4 GHz: +14 dBm, [>20 GHz: +12 dBm]
Resolution	10 µHz	0.001 dB
Frequency accuracy	± 0.05 ppm ± 5 µHz
Level accuracy (into 50 Ω):	Leveling Head O/P: Down to -48 dBm; ± 0.03 dB to 100 kHz, ± 0.05 dB to 128 MHz, ± 0.3 dB at 4 GHz 10 MHz to 128 MHz; ± 0.05 dB to -48 dBm, ± 0.1 dB to -84 dBm , ± 0.7 dB at -130 dBm Microwave O/P Direct: Typically ± 0.5 dB to 4 GHz, ± 0.5 dB to 26.5GHz Microwave O/P with HF option (after self-characterization): Power flatness uncertainty; ± 0.05 dB at 100 MHz, ± 0.07 dB at 1 GHz, ± 0.1 dB at 12 GHz, ± 0.16 dB at 26.5 GHz % Power (Cal Factor) uncertainty with factory calibration; ± 1.06 % at 100 MHz, ± 1.42 % at 1 GHz, ± 3.52 % at 26.5 GHz % Power (Cal Factor) uncertainty with reference sensor calibrated with typical state-of-the-art uncertainty and vector corrections for mismatches at splitter output port; ± 0.37 % at 100 MHz, ± 0.49 % at 1 GHz, ± 2.18 % at 26.5 GHz
Attenuation accuracy (into 50 Ω)	Leveling Head O/P: ± 0.02 dB to 49 dB, ± 0.15 dB at 110 dB Relative to +10 dBm, 10 Hz to 128 MHz
VSWR	Leveling Head O/P (50 Ω): ≤ 100 MHz: ≤ 1.05, ≤ 2 GHz: ≤ 1.1, 2 GHz to 4 GHz: ≤ 1.0 + 0.05 x f (GHz) Microwave O/P: direct ≤ 2.0 (typical), HF option splitter device ≤ 1.22
Harmonics and sub-harmonics	Harmonics ≤1 GHz: -60 dBc, >1 GHz: -55 dBc; sub-harmonics ≤ 4 GHz: none, >4GHz: -60 dBc
Spurious ≥ 3 kHz offset	≤ -84 dBc at 500 MHz, ≤ -78 dBc at 1 GHz, ≤ -66 dBc at 4 GHz, ≤ -48 dBc at 27 GHz
Phase noise at 1 GHz	–144 dBc/Hz, typical, at 10 kHz to 100 kHz offset
Modulation	AM, FM, PM, internal and external to 4 GHz (Leveling Head and Microwave O/P); frequency pull and external leveling
Frequency sweep	1 mHz to 4 GHz (Leveling Head); 1 mHz to 27 GHz (Microwave O/P). Linear or logarithmic. Stop-start or center-span
Frequency counter	Internal 300 MHz frequency counter

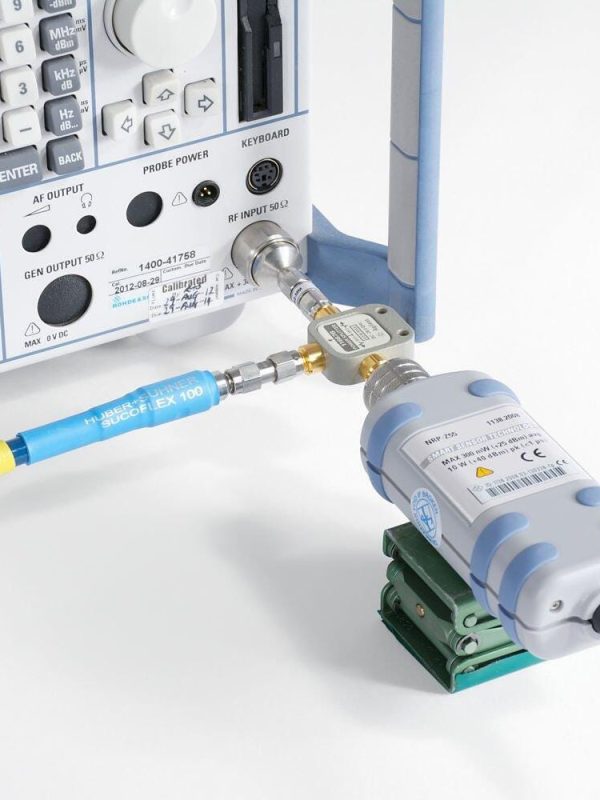

Power meter readout compatibility	Rhode & Schwarz NRP-Z series thermal sensor models 51, 52, 55.03, 55.04, 56, 57 and 58
Temperature	Operating: 0 °C to 50 °C, 23 °C ± 5 °C for specified performance Storage: -20 °C to +70 °C
Standard interfaces	IEEE-488.2 (GPIB)
GPIB command emulation	9640A, 9640A-LPN, 9640A-LPNX, HP3335, HP8662A, HP8663A, HP8340A, HP8360 B-Series; Agilent E8257 Series
Dimensions (HxWxD)	146 mm x 442 mm x 551 mm (5.8 in x 17.4 in x 21.7 in) including handles. Industry-standard 19 in (483 mm) rack mounting when fitted with Y9600 rack mounting kit
Weight	18 kg (40 lb)
*Key specifications summary. Refer to the 96270A Extended Specifications for detailed specifications, including the 75 ohm output Leveling Head.
