Description

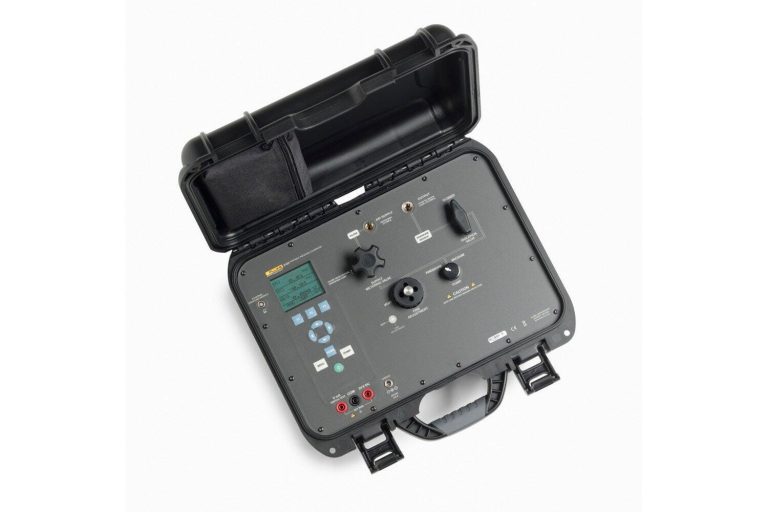

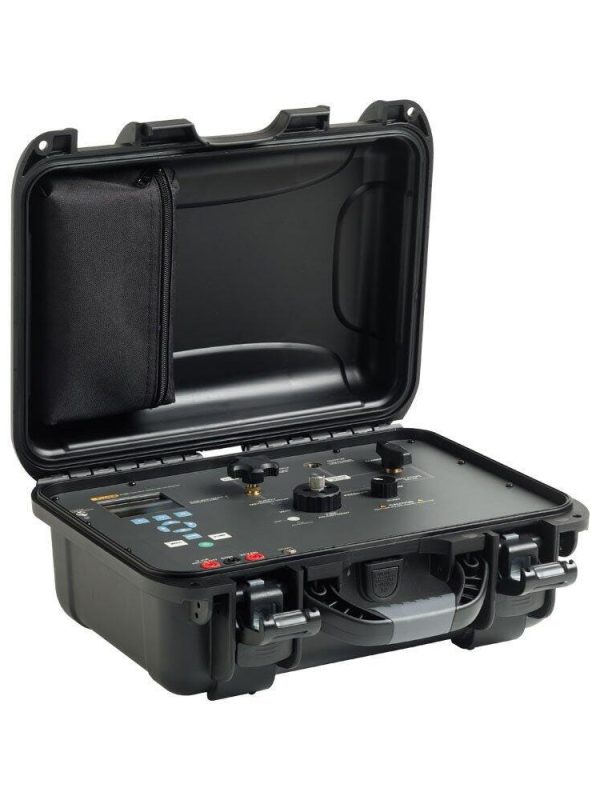

The Fluke 3130-G2M is a versatile and reliable portable pressure calibrator designed for precision measurements in various applications. With its internal pump, this calibrator offers easy calibration and a wide range of pressure measurement capabilities, including pressure, mA, and volts.

Whether you’re working in a laboratory, field, or workshop, the Fluke 3130-G2M is an ideal choice for professionals who require accurate and reliable measurements.

Fluke 3130-G2M Key Features

The Fluke 3130-G2M features a compact and lightweight design, making it easy to transport and store. It also includes a NIST-traceable certificate for accuracy assurance and a universal ac adapter/charger for convenient charging.

Operating Temperature: -10°C to +50°C
Storage Temperature: -20°C to +60°C
Power Requirements: 12 V DC (Universal ac adapter/charger supplied)
Battery: Internal 3800 mAh advanced NiMH pack
Operating Time: Approx 50 hours (Measure only or external air; no pump)
Using Internal Pump: Approx 100 calibration cycles to 300 psi
Physical Dimensions: 15.25 x 12 x 7 in
Weight: ~7 kg (15 lb)
EMI/RFI Conformance: EN61326:2006 Annex A
Connectors/ports: 1/8 in NPT (External supply port and test port)
Included Accessories: Manual, NIST-traceable certificate, test leads, universal ac adapter/charger

Who Needs the Fluke 3130-G2M?

The Fluke 3130-G2M is designed for professionals who require accurate and reliable pressure measurements in various applications, including laboratory, field, and workshop settings.

Whether you’re working with pressure gauges, transmitters, or other pressure measurement devices, the Fluke 3130-G2M is an ideal choice for ensuring accurate and reliable measurements.

Fluke 3130-G2M Applications

Pressure Calibration: Calibrate pressure gauges, transmitters, and other pressure measurement devices
Pressure Measurement: Measure pressure in various applications, including laboratory, field, and workshop settings
Process Control: Use the Fluke 3130-G2M to monitor and control pressure in process applications
Research and Development: Use the Fluke 3130-G2M to test and validate pressure measurement devices
Quality Control: Use the Fluke 3130-G2M to ensure accurate and reliable pressure measurements in quality control applications
Field Service: Use the Fluke 3130-G2M to perform pressure measurements in the field
Workshop and Laboratory: Use the Fluke 3130-G2M to perform pressure measurements in workshop and laboratory settings

Why Buy Fluke 3130-G2M from mme-ae?

At mme-ae, we offer the Fluke 3130-G2M at competitive prices, along with excellent customer service and support. Our team of experts is always available to assist you with any questions or concerns you may have.

Whether you’re looking for a reliable portable pressure calibrator or need help with selecting the right product for your application, mme-ae is your trusted partner for all your measurement needs.

Fluke 3130-G2M Specifications

Environmental
Operating temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Power requirements	12 V DC (Universal ac adapter/charger supplied)
Battery	Internal 3800 mAh advanced NiMH pack
Operating Time
On full charge	Approx 50 hours (Measure only or external air; no pump)
Using internal pump	Approx 100 calibration cycles to 300 psi
Physical
Dimensions (L x W x D)	15.25 x 12 x 7 in
Weight	~7 kg (15 lb)
EMI/RFI conformance	EN61326:2006 Annex A
Connectors/ports	1/8 in NPT (External supply port and test port)
Included accessories	Manual, NIST-traceable certificate, test leads, universal ac adapter/charger
Ranges
Pressure (internal pump)	-80 kPa to 2 MPa (-12 to 300 psi, -0.8 to 20 bar)
Pressure (external air)	0 to 2 MPa (0 to 300 psi, 0 to 20 bar)
mA	0 to 24.000 mA
Volts	0 to 30.000 V DC
Engineering units	psi, bar, mbar, kPa, MPa, kgf/cm2, mmH₂O @ 4°C, mmH₂O @ 20°C, cmH₂O @ 4°C, cmH₂O @ 20°C, inH₂O @ 4°C, inH₂O @ 20°C, inH₂O @ 60°F, mmHg @ 0°C, inHg @ 0°C
Instrumental Measurement Uncertainty
Pressure	0.025% of reading ±0.01% FS
mA	0.015% of reading ±0.002 mA
Volts	0.015% of reading ±0.002 V
Temperature Effect (All Functions)
No effect on accuracy on all functions from 15°C to 35°C
Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
