Description

The Fluke 5560A is a versatile multi-product calibrator designed for laboratory applications. This advanced tool enables technicians to calibrate a wide range of instruments with precision and accuracy.

With its 4.5 digit class multimeter, the Fluke 5560A offers exceptional measurement capabilities, making it an ideal choice for demanding laboratory environments.

Fluke 5560A Key Features

The Fluke 5560A boasts an impressive array of features, including multi-unit sync, fast settling time, and an isolated terminal block. These capabilities ensure seamless integration with various instruments and minimize measurement errors.

Range DCV: 0 V to ±1020 V
Range DCI: 0 A to ±30.2 A continuous
Range ACV: 1 mV to 1020 V; 3 Hz to 500 kHz
Range ACI: 10 uA to 30.2 A continuous; 3 Hz to 30 kHz
Variable Resistance: 0 Ohm to 1200 MOhm
Variable Capacitance: 0 pF to 120 mF
Variable Inductance: 13 uH to 120 H
Temperature: 17 TCs 10 RTDs; ITS-90 or IPTS-68

Who Needs the Fluke 5560A?

The Fluke 5560A is designed for laboratory professionals who require a reliable and accurate calibrator for their instruments. This includes technicians, engineers, and researchers who demand precision and reliability in their measurements.

Fluke 5560A Applications

Use in laboratory settings for instrument calibration
Calibration of multimeters, oscilloscopes, and other laboratory instruments
Measurement of electrical parameters in research and development
Calibration of temperature sensors and thermocouples
Measurement of impedance and capacitance in various applications

Why Buy Fluke 5560A from MME?

At MME, we offer the Fluke 5560A as a reliable solution for laboratory professionals who require a high-performance calibrator. Our team of experts is dedicated to providing exceptional customer service and support to ensure your measurement needs are met.

Fluke 5560A Specifications

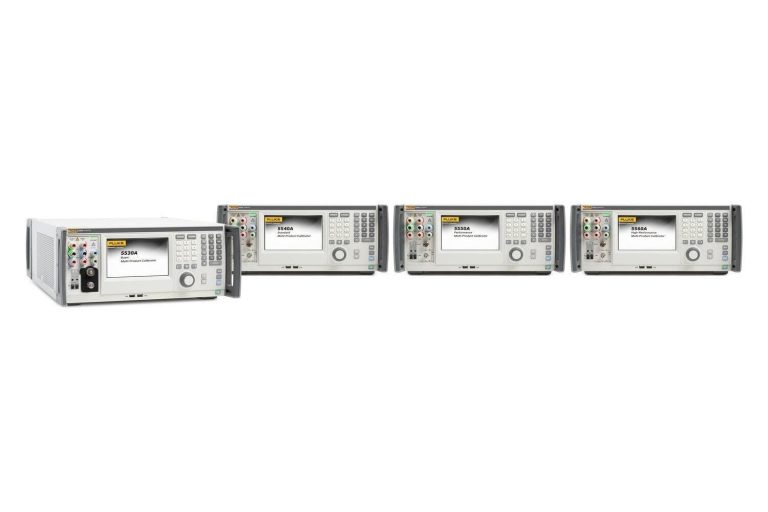

Target Workload		5560A	5550A	5540A	5530A

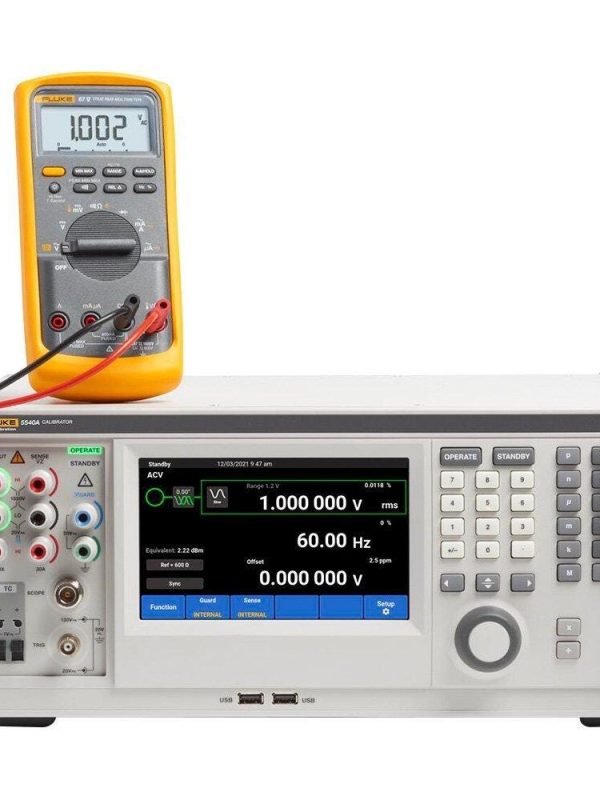

4.5 digit class multimeter, Example: Fluke 87V		TUR 4:1	TUR 4:1	TUR 4:1	TUR 4:1

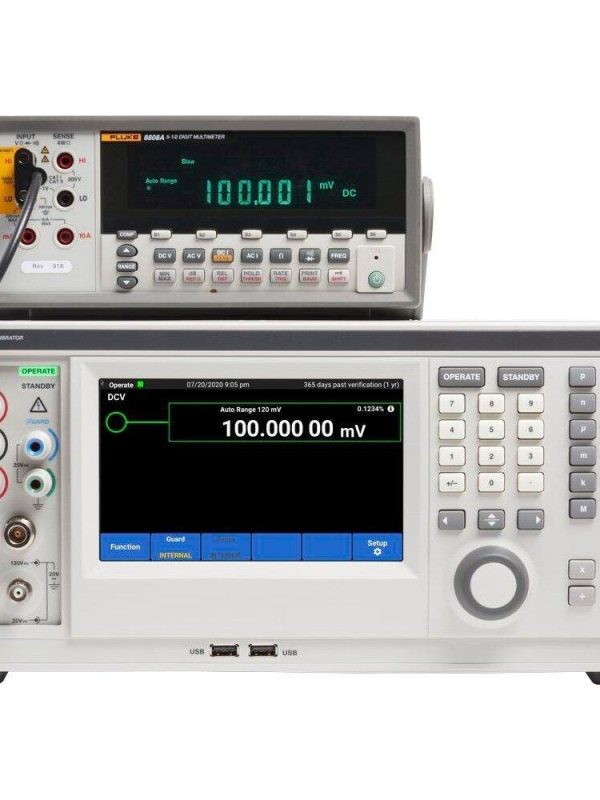

5.5 digit class multimeter, Example: Fluke 8808A		TUR 4:1	TUR 4:1
6.5 digit class multimeter, Example: Keysight 34460A		TUR 4:1
Best Performance @95%, ±5°C, 1 year	Range
DCV	0 V to ±1020 V	6 ppm	9 ppm	24 ppm	24 ppm
DCI	0 A to ±30.2 A continuous	78 ppm	85 ppm	100 ppm	100 ppm
ACV	1 mV to 1020 V; 3 Hz to 500 kHz	110 ppm	120 ppm	780 ppm	780 ppm
ACI	10 uA to 30.2 A continuous; 3 Hz to 30 kHz	120 ppm	390 ppm	1600 ppm	1600 ppm
Variable Resistance	0 Ohm to 1200 MOhm	19 ppm	22 ppm	50 ppm	50 ppm
Variable Capacitance	0 pF to 120 mF	0.09%	0.16%	0.19%	0.19%
Variable Inductance	13 uH to 120 H	0.09%	0.16%	–	–
Temperature	17 TCs 10 RTDs; ITS-90 or IPTS-68	0.09°C TC; 0.002°C RTD	0.09°C TC; 0.002°C RTD	0.09°C TC; 0.002°C RTD	0.09°C TC; 0.002°C RTD
Functional Differences
AC Power (Phase Adj. and PF); Dual Output (DCV-DCV, ACV-ACV)		Yes	Yes	–	Yes
Multi-Unit Sync		Yes	Yes	Yes	–
Simple Harmonics		Yes	Yes	–	Yes
Inductance		Yes	Yes	–	–
52120A Control (Closed Loop); Up to 3 or 360 A		Yes	Yes	Yes	Yes
Fluke Coil Effective Current Display		Yes	Yes	–	–
Extended Volts/Hertz ACV – 70 V at 300 kHz		Yes	–	–	–
Specification Period, 95% and 99% Confidence		90 day; 1 year; 2 year	90 day; 1 year	1 year	1 year
Fast Settling Time		Yes	Yes	Yes	Yes
Isolated terminal block (DMM Autocal Compatible)		Yes	Yes	Yes	Yes
Scope Output Options
Leveled Sine Bandwidth; < 4% @ 2 GHz		600 MHz; 1 GHz; 2 GHz	600 MHz; 1 GHz	600 MHz	–
Specified VSWR		Yes	Yes	Yes	–
Vertical Amplitude (AC & DC)		0 V to 120 V	0 V to 120 V	0 V to 120 V	–
Fast Edge		< 175 ps	< 175 ps	< 175 ps	–
Time Marker Accuracy		2.5 ppm	2.5 ppm	2.5 ppm	–
Pulse		Yes	Yes	Yes	–
Impedance Measurement		Yes	Yes	Yes	–
Input Overload		Yes	Yes	Yes	–
