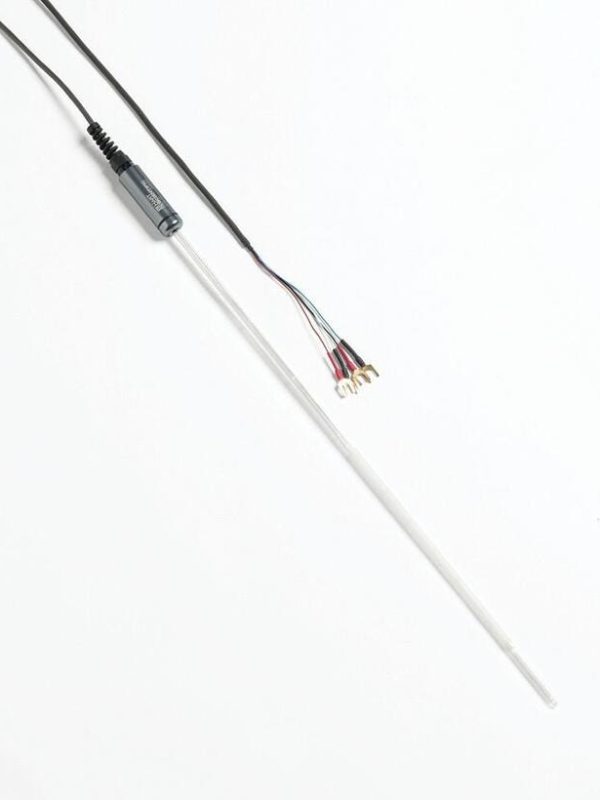

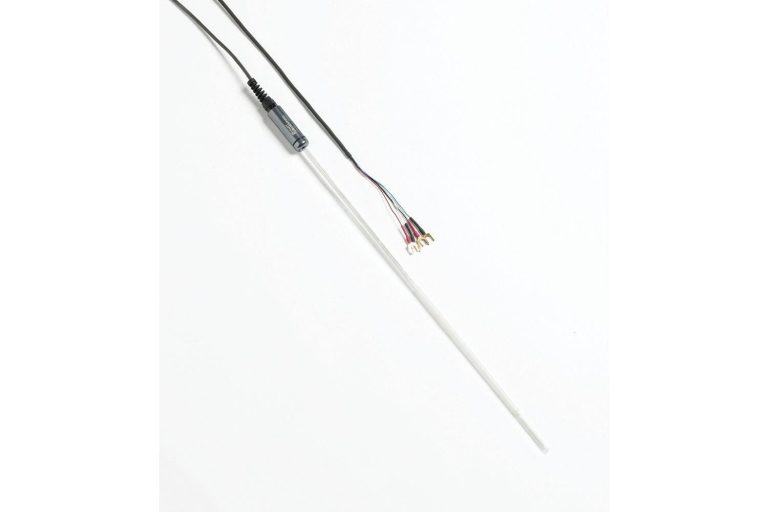

Fluke 5698-25 Working Standard SPRT

The Fluke 5698-25 Working Standard SPRT is a high-precision temperature measurement instrument designed for demanding applications. With a wide temperature range of –200 °C to 670 °C, this instrument provides accurate and reliable measurements.

Fluke 5698-25 Key Features

This Fluke 5698-25 Working Standard SPRT boasts a nominal R TPW of 25.5 Ω (± 0.5 Ω) and an excellent sensitivity of 0.1 Ω/°C. Its low drift rate of < 0.006 °C/100 hours ensures stable and consistent measurements.

• Temperature Range: –200 °C to 670 °C
• Nominal R TPW: 25.5 Ω (± 0.5 Ω)
• Current: 1.0 mA
• Resistance Ratios: W(234.315 K) ≤ 0.844235 W(302.9146 K) ≥ 1.11807
• Sensitivity: 0.1 Ω/°C
• Drift Rate: < 0.006 °C/100 hours
• Self-heating at TPW: < 0.002 °C under 1 mA current
• Reproducibility: ± 0.0015 °C or better

Who Needs the Fluke 5698-25?

The Fluke 5698-25 Working Standard SPRT is designed for technicians and engineers who require high-precision temperature measurements in various applications, including industrial processes, research, and development.

Fluke 5698-25 Applications

• Use in industrial processes to monitor temperature and ensure optimal performance.
• Measure temperature in research and development applications, such as materials science and physics.
• Use in calibration labs to verify the accuracy of temperature measurement instruments.
• Measure temperature in aerospace and defense applications, such as satellite and aircraft testing.
• Use in medical research to measure temperature in various medical applications, such as cryogenics and hyperthermia.

Why Buy Fluke 5698-25 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 5698-25 Working Standard SPRT with a guarantee of quality and reliability. Our experienced team is dedicated to providing exceptional customer service and support.

Fluke 5698-25 Specifications
