Description

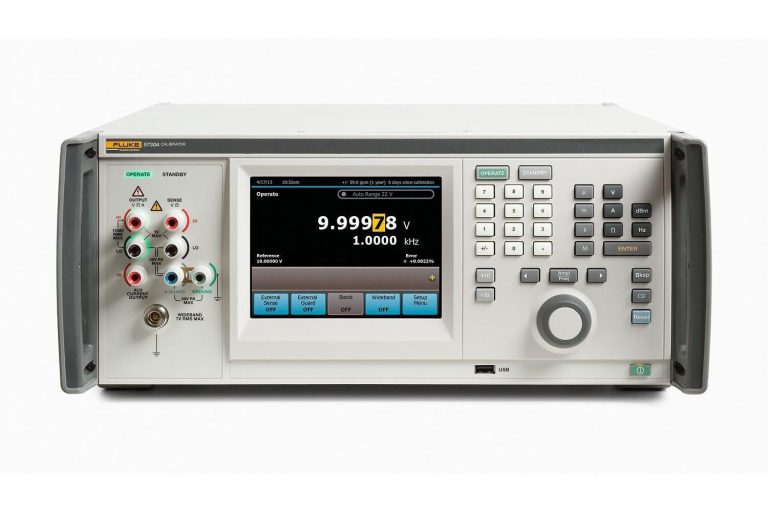

The Fluke 5730A High Performance Multifunction Calibrator is a versatile and accurate instrument designed for a wide range of applications, including calibration, testing, and measurement. With its high-precision DC and AC voltage, resistance, and current measurements, this calibrator is ideal for use in industrial, commercial, and laboratory settings.

Whether you’re working with electrical systems, electronic devices, or mechanical equipment, the Fluke 5730A is a reliable and efficient tool that can help you achieve precise results.

Fluke 5730A Key Features

The Fluke 5730A offers a range of advanced features, including a wideband AC voltage option for frequencies up to 50 MHz, IEEE-488, RS-232, USB 2.0, and Ethernet interfaces, and a compact design with standard rack width and depth.

DC Voltage Range: 3.5 ppm + 2.5 µV (1 year, 95% specification)
AC Voltage Range: 10 Hz to 1 MHz (42 ppm + 8 µV, 1 year, 95% specification)
Resistance Range: 6.5 ppm (1 year, 95% specification)
Current DC Range: 35 ppm + 7 nA (1 year, 95% specification)
Current AC Range: 103 ppm + 8 nA (1 year, 95% specification)
Wideband AC Voltage Option: 10 Hz to 50 MHz (0.4% + 500 µV, 1 year, 99% specification)

Who Needs the Fluke 5730A?

The Fluke 5730A is designed for use by technicians, engineers, and buyers who require high-precision calibration and measurement instruments. Whether you’re working in industrial, commercial, or laboratory settings, this calibrator is a reliable and efficient tool that can help you achieve precise results.

Fluke 5730A Applications

Calibration of electrical systems and electronic devices
Testing and measurement of mechanical equipment
Quality control and assurance in industrial and commercial settings
Research and development in laboratory settings
Electrical and electronic system design and testing
Power system testing and measurement

Why Buy Fluke 5730A from MME?

At MME, we offer the Fluke 5730A High Performance Multifunction Calibrator as a reliable and efficient solution for your calibration and measurement needs. With its high-precision DC and AC voltage, resistance, and current measurements, this calibrator is ideal for use in a wide range of applications. Our team of experts is dedicated to providing you with the best possible service and support, ensuring that you get the most out of your investment.

Fluke 5730A Specifications

Technical Specifications
Voltage DC	Range	0 to ±1100 V
	Best 1 Year, 95% Specification	3.5 ppm + 2.5 µV
Voltage AC	Range	22 µV to 1100V
		10 Hz to 1 MHz
	Best 1 Year, 95% Specification:	42 ppm + 8 µV
Resistance	Range	0 to 100 MΩ, 18 values in x1 and x1.9
	Best 1 Year, 95% Specification	6.5 ppm
Current DC	Range	0 to ±2.2A (0 to ±11A with 5725A; 0 to ±100 A with 52120A)
	Best 1 Year, 95% Specification	35 ppm + 7 nA
Current AC	Range	9 µA to 2.2A, 10 Hz to 10 kHz (9 µA to ±11A with 5725A; 9 µA to ± 120 A with 52120A)
	Best 1 Year, 95% Specification	103 ppm + 8 nA
Wideband ac Voltage option	Range	300 µV to 3.5V
		10 Hz to 50 MHz
	Best 1 Year, 99% Specification	0.4% + 500 µV
General Specifications
Warm up time	Twice the time since last warmed up, to a maximum of 30 minutes
Settling time	Less than 5 seconds for all functions and ranges except as noted
Standard interfaces	IEEE-488 (GPIB), RS-232, USB 2.0 Device, Ethernet, 5725A, 52120A, phase lock in (BNC), phase reference out (BNC)
Temperature performance	Operating	0 °C to 50 °C
	Calibration:15 °C to 35 °C	15 °C to 35 °C
	Storage	-40 °C to 75 °C
Operating altitude	2000 m maximum
Relative humidity	Operating	< 80% to 30 °C, < 70% to 40 °C, < 40% to 50 °C
	Storage	< 95%, non-condensing.
Safety	IEC 61010-1: 300 V CAT II, Pollution Degree 2
Analog low isolation	20 V
Electromagnetic environment	IEC 61326-1: Controlled
Line power	47 Hz to 63 Hz; ±10% 100 V, 110 V, 115 V, 120 V, 200 V, 220 V, 230 V, 240 V
Power consumption	300 VA
Dimensions	Height	17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet
	Width	43.2 cm (17 in), standard rack width
	Depth	64.8 cm (25.5 in), overall; 59.4 cm (23.4 in), rack depth
Weight	27 kg: (62 lbs.)
Absolute uncertainty definition	5730A uncertainty specifications include stability, temperature coefficient, linearity, load regulation, and the traceability of the external standards used for calibration. You do not need to add anything to determine the total uncertainty of your calibrator for the temperature range indicated
Specification confidence interval	99% and 95%
