Fluke 59 MAX+ IR Thermometer UAE | 10:1, 500 °C

Q: What is the temperature range of the Fluke 59 MAX+?

It measures from -30 °C to 500 °C (-22 °F to 932 °F). At 0 °C and above, accuracy is ±1.5 °C or ±1.5% of reading, whichever is greater.

Q: What is the difference between the Fluke 59 MAX+ and 62 MAX+?

The 59 MAX+ has a 10:1 distance-to-spot ratio, a single laser, a 500 °C maximum, IP40 and a 1 m drop rating. The 62 MAX+ has 12:1 optics, dual lasers, a 650 °C maximum, IP54 and a 3 m drop rating.

Q: What is the difference between the 59 MAX and 59 MAX+?

Fluke lists the 59 MAX with an 8:1 distance-to-spot ratio. The 59 MAX+ improves this to 10:1, so you can measure smaller targets from the same distance.

Q: Can I change the emissivity?

Yes. Emissivity is adjustable from 0.10 to 1.00.

Q: How long does the battery last?

It runs on one AA battery for about 12 hours with the laser and backlight on.

Q: Is the 59 MAX+ waterproof?

No. It is rated IP40, which gives protection against solid objects but not water. For wet or dusty sites, choose the IP54-rated Fluke 62 MAX or 62 MAX+.

Description

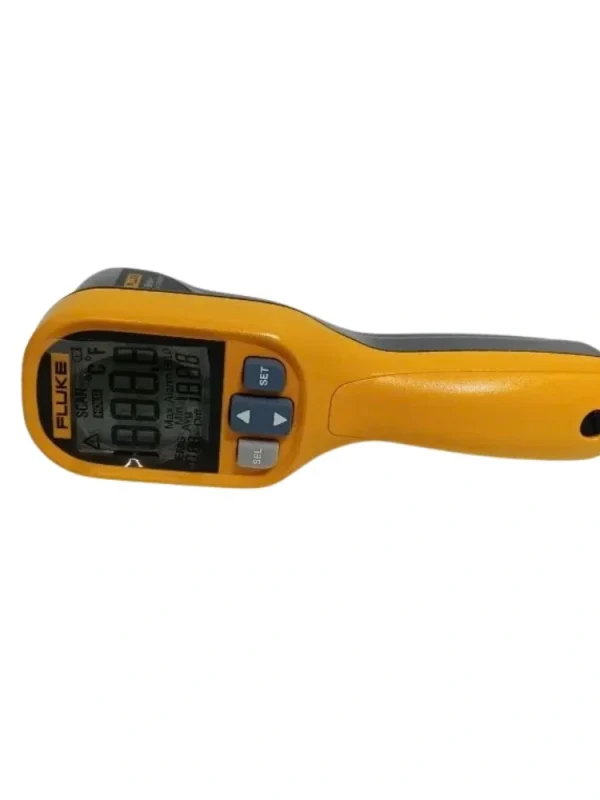

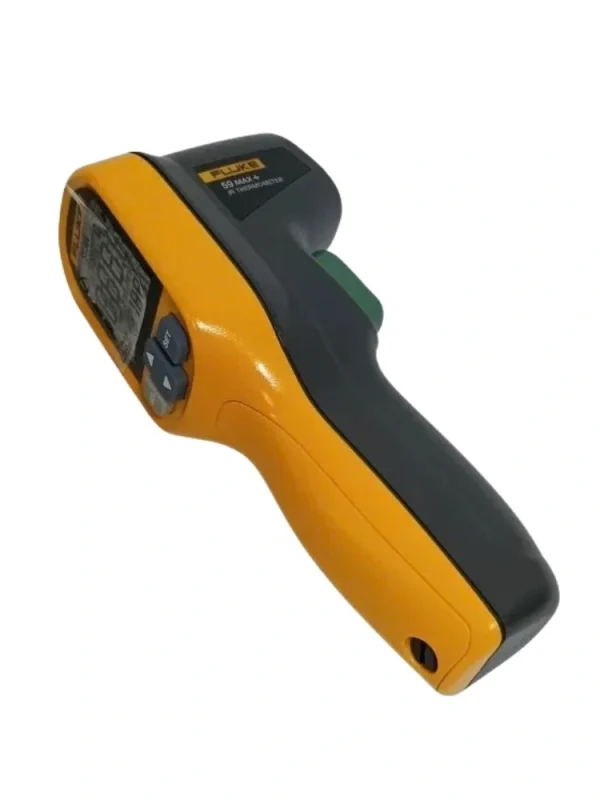

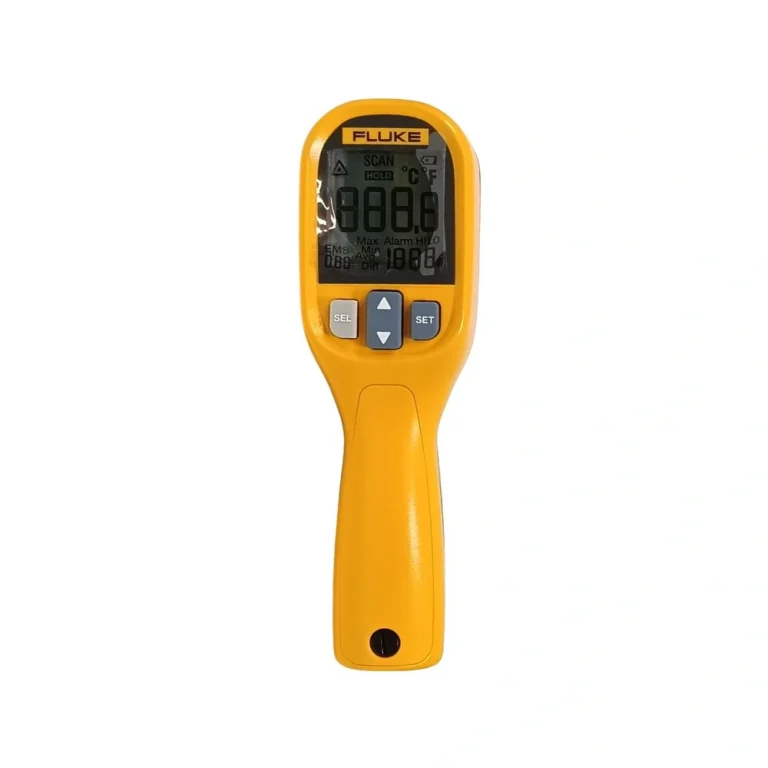

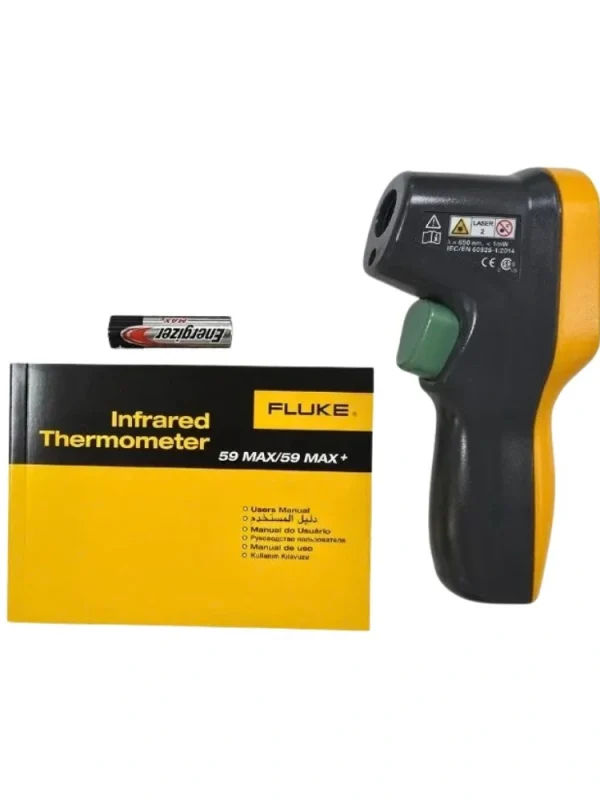

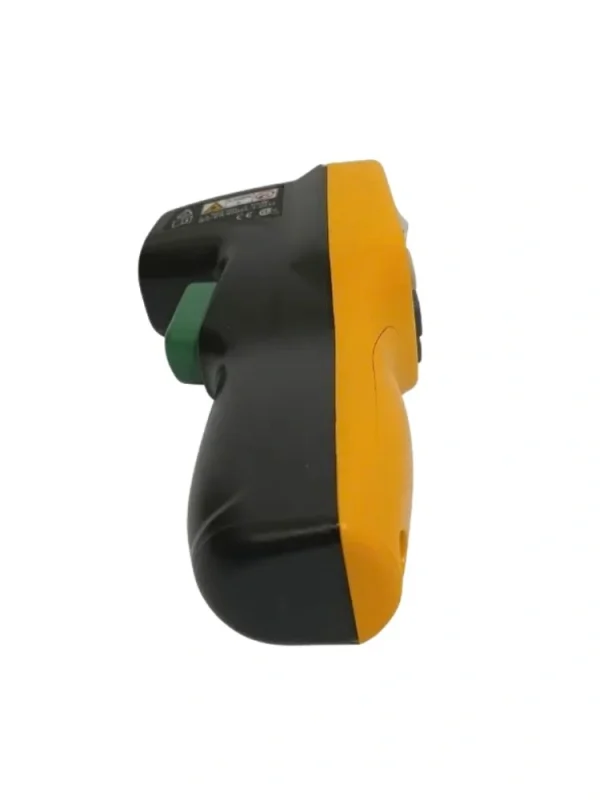

Fluke 59 MAX+ Infrared Thermometer Overview

The Fluke 59 MAX+ is a compact, easy-to-use infrared thermometer for everyday non-contact checks at an entry-level price. It measures -30 °C to 500 °C, has a 10:1 distance-to-spot ratio and uses single laser targeting. You can use it on transformers, motors, pumps, panels, breakers, compressors, ducts and vents.

It weighs 220 g, fits in a tool bag and runs on one AA battery. It is drop tested to 1 m.

Key Features

-30 °C to 500 °C range with ±1.5 °C or ±1.5% accuracy (≥ 0 °C)
10:1 distance-to-spot ratio with laser targeting
Adjustable emissivity from 0.10 to 1.00
MAX, MIN, DIF and AVG functions to spot problems quickly
Hi and Lo alarms for readings outside your limits
Large backlit LCD and about 12 hours of battery life

Fluke 59 MAX+ Specifications

Fluke 59 MAX+ official specifications
Temperature range	-30 °C to 500 °C (-22 °F to 932 °F)
Accuracy (23 °C ±2 °C ambient)	≥ 0 °C: ±1.5 °C or ±1.5% of reading, whichever is greater; -10 °C to < 0 °C: ±2.0 °C; < -10 °C: ±3.0 °C
Response time (95%)	< 500 ms
Spectral response	8 to 14 µm
Emissivity	Adjustable 0.10 to 1.00
Distance to spot ratio	10:1 (calculated at 90% energy)
Laser targeting	Single laser
Display resolution	0.1 °C (0.2 °F)
Repeatability	±0.8% of reading or ±1.0 °C (±2.0 °F), whichever is greater
Functions	MAX / MIN / DIF / AVG, Hi and Lo alarms, backlit LCD
Power / battery life	1 × AA (IEC LR06); 12 hours with laser and backlight on
Weight / size	220 g; 156 × 80 × 50 mm
Operating temperature	0 °C to 50 °C
Operating humidity	10% to 90% RH non-condensing at 30 °C
Ingress protection	IP40 per IEC 60529
Drop test	1 m
Safety / laser	EN/IEC 61010-1; FDA and EN 60825-1 Class II
Fluke part number	4393789
Warranty	1 year (Fluke)

Fluke 59 MAX+ vs 62 MAX vs 62 MAX+

Fluke IR thermometer comparison
Fluke 59 MAX+	-30 to 500 °C, 10:1, single laser, IP40, 1 m drop, 1-year warranty
Fluke 62 MAX	-30 to 500 °C, 10:1, single laser, IP54, 3 m drop
Fluke 62 MAX+	-30 to 650 °C, 12:1, dual laser, IP54, 3 m drop, 3-year warranty

The 59 MAX+ suits HVAC, facility and general maintenance checks indoors. For dusty or wet sites, or temperatures above 500 °C, step up to the Fluke 62 MAX or Fluke 62 MAX+.

Typical Applications

HVAC supply and return air, ducts, vents and condenser coils
Motor, bearing and pump housings
Electrical panels, breakers and connections (non-contact)
Pipe and insulation checks in facilities and buildings

Tips for Accurate Readings

With 10:1 optics, the spot is about one tenth of the distance. At 1 m it is about 10 cm wide, so move closer to small targets. Set the emissivity for the surface and avoid shiny bare metal. Learn more in our guide to contact vs non-contact thermometers and our Fluke 568 vs 561 comparison.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Browse all infrared and laser thermometers, our thermal cameras, or more Fluke products.

Fluke 59 MAX+ FAQ

What is the temperature range of the Fluke 59 MAX+?

It measures from -30 °C to 500 °C (-22 °F to 932 °F). At 0 °C and above, accuracy is ±1.5 °C or ±1.5% of reading, whichever is greater.

What is the difference between the Fluke 59 MAX+ and 62 MAX+?

The 59 MAX+ has a 10:1 distance-to-spot ratio, a single laser, a 500 °C maximum, IP40 and a 1 m drop rating. The 62 MAX+ has 12:1 optics, dual lasers, a 650 °C maximum, IP54 and a 3 m drop rating.

What is the difference between the 59 MAX and 59 MAX+?

Fluke lists the 59 MAX with an 8:1 distance-to-spot ratio. The 59 MAX+ improves this to 10:1, so you can measure smaller targets from the same distance.

Can I change the emissivity?

Yes. Emissivity is adjustable from 0.10 to 1.00.

How long does the battery last?

It runs on one AA battery for about 12 hours with the laser and backlight on.

Is the 59 MAX+ waterproof?

No. It is rated IP40, which gives protection against solid objects but not water. For wet or dusty sites, choose the IP54-rated Fluke 62 MAX or 62 MAX+.

Datasheet

Datasheet (PDF)PDF

User Manual

User manual (PDF)PDF
