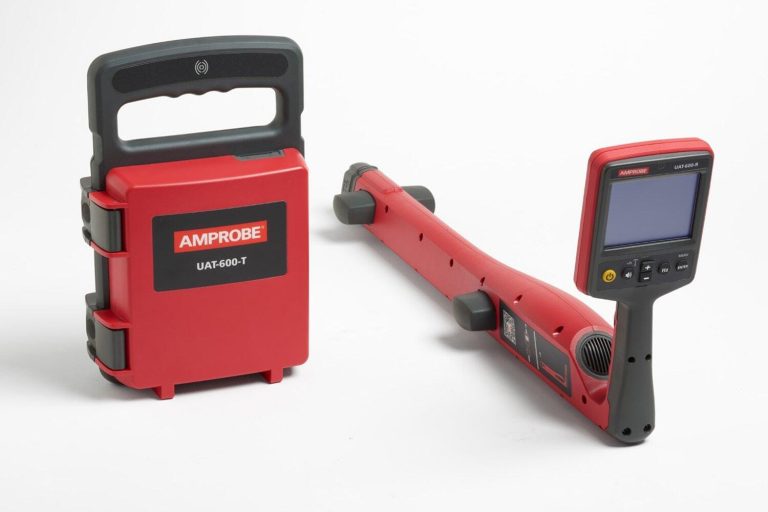

Amprobe UAT-610 Underground Utilities Locator Kit

The Amprobe UAT-610 Underground Utilities Locator Kit is a reliable and efficient solution for locating underground utilities. With its advanced tracing modes and depth measurement capabilities, this kit ensures accurate and safe excavation.

Amprobe UAT-610 Key Features

The Amprobe UAT-610 Underground Utilities Locator Kit features a range of advanced technologies, including active and passive tracing modes, depth measurement, and accuracy up to 20 ft 4 in.

• Measurement category: CAT IV 600 V
• Operating voltage/current: 0 to 600 V
• Operating frequency/tracing modes: Active tracing: 33 kHz and 8 kHz, Passive tracing: 50/60 Hz and Radio Locating modes: Peak and Null
• Depth measurement and accuracy: Up to 20 ft 4 in to 10 ft: ±3%, 10 ft to 20 ft: ±5%
• Display backlight: Automatic
• Audio indication: Increasing closer to the signal
• Transmitting mode power output: – Output voltage: – Output current: – Output current: –
• Mains voltage measurement: –
• Resistance measurement (De-energized circuit): –
• Output hazardous voltage warning: –
• Mains hazardous voltage warning: –
• Sensitivity adjustment (gain control): Yes
• Sensitivity at 1 m (typical): Power: 2 mA, Radio: 20 μA, 8 kHz: 5 μA, 33 kHz: 5 μA
• Display: 4.3 in, 320 x 240 BW outdoor LCD display with auto backlight
• Update rate: Instantaneous
• Operating temperature and humidity: -4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
• Storage temperature and humidity: -40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
• Operating altitude: < 6561 ft (< 2000 m)
• Water and dust resistance: IP54
• Drop proof: 3.28 ft (1 m)
• Power supply: (6) 1.5 V AA alkaline batteries
• Auto power off: 15 minutes idle
• Battery life: Approx. 35 hours at 70 °F (21 °C) (Typical)
• Overload protection: –
• Safety compliance: IEC 61010-1, IEC 61010-2-033, CSA/UL 61010-1, CSA/UL 61010-2-033
• Size (H x W x L): Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm)
• Weight: Approx. 4.2 lb (1.9 kg) (batteries installed)

Who Needs the Amprobe UAT-610?

The Amprobe UAT-610 Underground Utilities Locator Kit is designed for professionals who require accurate and efficient underground utility location, including electricians, plumbers, and construction workers.

Amprobe UAT-610 Applications

• Locating underground utilities: The Amprobe UAT-610 Underground Utilities Locator Kit is ideal for locating underground utilities, including electric, gas, and water lines.
• Excavation and construction: This kit is perfect for excavation and construction projects where accurate underground utility location is critical.
• Utility maintenance: The Amprobe UAT-610 Underground Utilities Locator Kit is also suitable for utility maintenance and repair work.
• Emergency response: This kit can be used in emergency response situations where quick and accurate underground utility location is essential.
• Environmental monitoring: The Amprobe UAT-610 Underground Utilities Locator Kit can be used for environmental monitoring and tracking of underground utility infrastructure.
• Research and development: This kit is also suitable for research and development projects where accurate underground utility location is required.

Why Buy Amprobe UAT-610 from mme-ae?

At mme-ae, we offer the Amprobe UAT-610 Underground Utilities Locator Kit at competitive prices, ensuring that you get the best value for your money. Our team of experts is always available to provide you with the support and guidance you need to get the most out of your purchase.

Amprobe UAT-610 Specifications
