Description

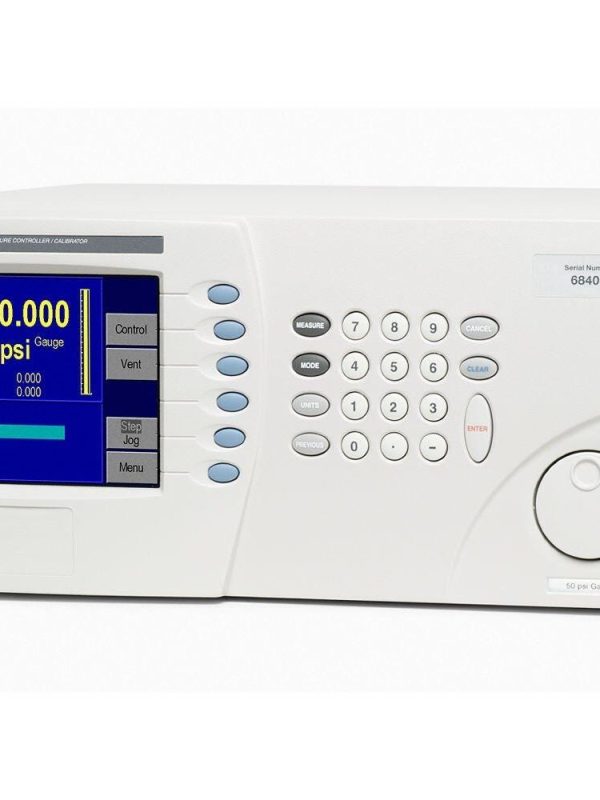

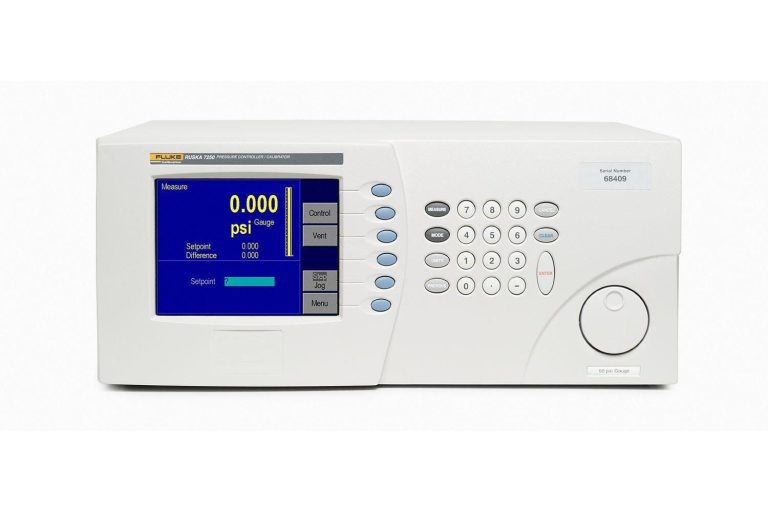

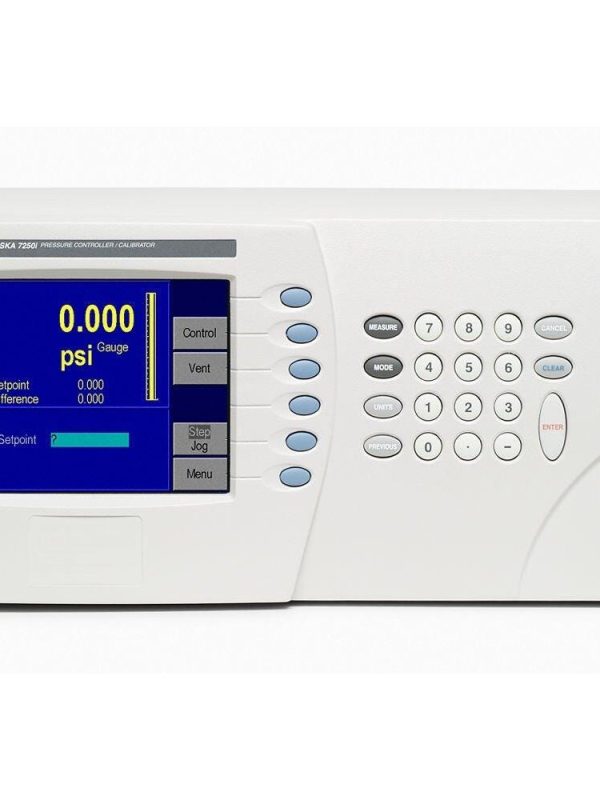

The Fluke 7250, 7250i, and 7250xi Pressure Controller / Calibrators are designed to provide high-precision pressure calibration and control for industrial and laboratory applications. With advanced control and calibration features, these instruments offer reliable and precise performance, making them perfect for a wide range of pressure measurement capabilities.

Fluke 7250 Key Features

The Fluke 7250 Pressure Controller / Calibrator offers a range of key features, including:

Accuracy: 0.003% of FS for ranges to 2,500 psi (17.2 MPa)
Stability: 0.0075% of reading per year for ranges up to 2,500 psi (17.2 MPa)
Control Response: 20 seconds or less typical with zero overshoot into a 15 in 3 (245 cc) volume in 10% full scale increments
Display Resolution: User selectable to 1:1,000,000

Who Needs the Fluke 7250?

The Fluke 7250 Pressure Controller / Calibrator is designed for use in industrial and laboratory settings where high-precision pressure calibration and control are required. This includes applications such as:

Pressure calibration and control for industrial processes

Research and development in laboratory settings

Quality control and assurance in manufacturing

Fluke 7250 Applications

Pressure calibration and control for industrial processes
Research and development in laboratory settings
Quality control and assurance in manufacturing
Pressure measurement for industrial and laboratory applications
Calibration and control of pressure transducers and sensors
Pressure testing and validation for industrial equipment

Why Buy Fluke 7250 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 7250 Pressure Controller / Calibrator as part of our range of high-precision pressure calibration and control instruments. With our expertise and support, you can trust that you are getting the best possible solution for your pressure measurement needs.

Fluke 7250 Specifications

Performance
Precision	Model 7250 Ranges to 2,500 psi (17.2 MPa): 0.003% of FS 3,000 psi (21 MPa): 0.012% reading from 30% to 100% full scale. Below 30% FS: 0.00036% full scale Model 7250i From 40% to 100% full scale (FS): 0.005% reading Below 40% FS: 0.005% of 40% FS Model 7250xi From 20% to 100% full scale (FS): 0.005% reading Below 20% FS: 0.005% of 20% FS Precision is defined as the combined effects of linearity, repeatability and hysteresis throughout the operating. Expression of uncertainty conforms with the recommendations of the ISO Guide to the Expression of Uncertainty in Measurement.
Stability	Ranges up to 2,500 psi (17.2 MPa): 0.0075% of reading per year 3,000 psia (21 MPa) range: 0.005% of reading
Control Stability	Active mode: 0.001% FS (10 ppm) Passive mode: no additional uncertainty
Display Resolution	User selectable to 1:1,000,000
Control Response	20 seconds or less typical with zero overshoot into a 15 in³ (245 cc) volume in 10% full scale increments for ranges to 2,500 psi (17.25 MPa) 60 seconds for 3,000 psia (21 MPa) range
Negative Gauge Precision (optional)	Model 7250 0.003% of FS Model 7250i 0.005% of 40% FS or 0.00075 psi (0.005 kPa), whichever is greater Model 7250xi 0.005% of 20% FS or 0.00075 psi (0.005 kPa), whichever is greater
Negative Gauge Control Stability (Optional)	Active mode: 0.001% FS (10ppm) Passive mode: no additional uncertainty
Negative Gauge Control Response (Optional)	20 seconds or less typical with zero overshoot into a 5 in³ (82 cc) volume in 10% increments from 0 psig to control low limit
Barometric Reference (optional)	0.002 psi (0.014 kPa) maximum error per year
Vacuum Reference (optional)	0.0002 psi (0.0014 kPa) maximum error per year (Only available on 7250i and 7250)
