Description

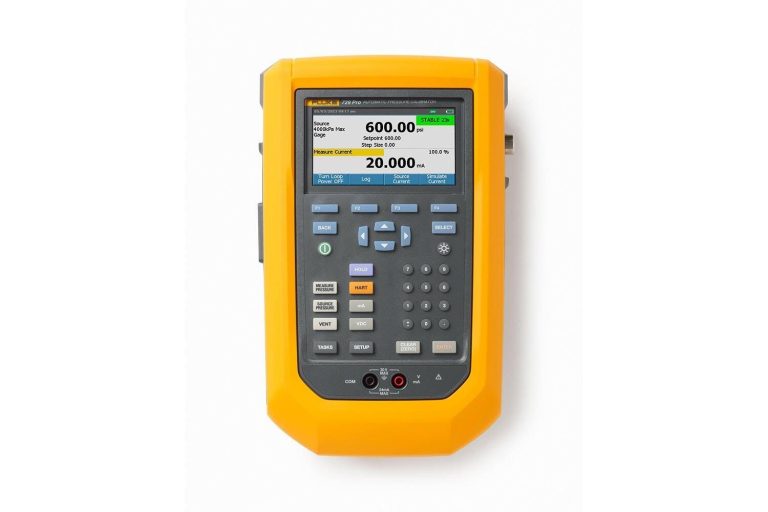

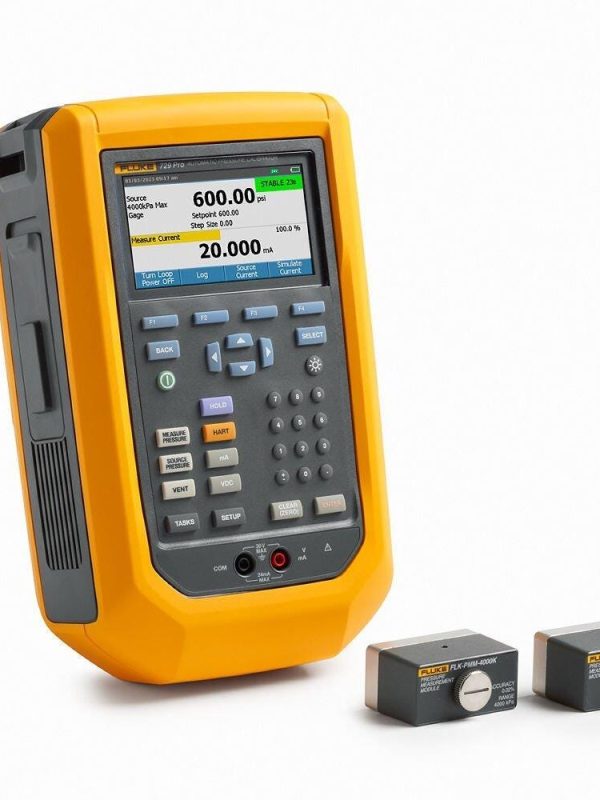

The Fluke 729 Pro Automatic Pressure Calibrator is designed to provide accurate pressure calibration for a wide range of applications. With its ability to measure and simulate pressure up to 24 mA, this calibrator is ideal for use in industries such as oil and gas, power generation, and chemical processing.

The Fluke 729 Pro features a compact design with dimensions 290 x 215 x 100 mm, making it easy to transport and store. The operating temperature range of -10 °C to 50 °C ensures that the calibrator can be used in a variety of environments.

Fluke 729 Pro Key Features

The Fluke 729 Pro offers a range of key features, including:

mA measure, source and simulate up to 24 mA.
Volts dc measurement up to 30 V dc.
Resolution of 1 μA.
Accuracy of 0.01% FS ±2 LSD all ranges.
Stability of 20 ppm FS /°C.
Temperature measurement range of -50 °C to 150 °C.
Drive capability of 1200 Ω (without HART resistor).

Who Needs the Fluke 729 Pro?

The Fluke 729 Pro is designed for use by technicians and engineers in a variety of industries, including oil and gas, power generation, and chemical processing. The calibrator is ideal for use in applications where accurate pressure calibration is critical, such as in the calibration of pressure transmitters and sensors.

Fluke 729 Pro Applications

Use in oil and gas industry for pressure calibration of pressure transmitters and sensors.
Use in power generation industry for pressure calibration of pressure transmitters and sensors.
Use in chemical processing industry for pressure calibration of pressure transmitters and sensors.
Use in calibration laboratories for pressure calibration of pressure transmitters and sensors.
Use in research and development for pressure calibration of pressure transmitters and sensors.
Use in education and training for teaching pressure calibration techniques.

Why Buy Fluke 729 Pro from MME?

The Fluke 729 Pro is available from MME, a leading supplier of calibration equipment. With our extensive range of products and expert technical support, we can help you find the right calibration solution for your needs.

Fluke 729 Pro Specifications

Electrical specification
All specifications are valid to 110% of range, except 24 mA source and simulate which are valid to 100% of range.
Ranges
mA measure, source and simulate	0 mA to 24 mA
Volts dc measurement	0 V dc to 30 V dc
Resolution
mA dc source, simulate and measure	1 μA
Voltage dc measurement	1 mV
Accuracy	0.01% FS ±2 LSD all ranges (at 23 °C ±5 °C)
Stability	20 ppm FS /°C (-10 °C to +18 °C and 28 °C to 50 °C)
mA simulation working voltage	12 V dc to 30 V dc
Loop compliance voltage	24 V dc @ 20 mA
Temperature measurement , 100 Ω Pt(385) RTD	-50 °C to 150 °C
Temperature resolution	0.01 °C
Temperature accuracy	±0.1 °C ±0.25 °C combined uncertainty when using 720 RTD probe (optional accessory)
Drive capability (mA source)	1200 Ω (without HART resistor), 950 Ω (with internal HART resistor)
Mechanical specification
Dimension (HxWxL)	290 x 215 x100 mm, (4.3 x 4.4 x 9.4 in)
Weight	4.9 kg, (10.8 lbs)
Environmental specification
Operating temperature	-10 °C to 50 °C
Pressure control	0 °C to 50 °C
Battery charging	0 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Operating altitude	<3000 m
Storage altitude	<13000 m
Operating humidity	Non-condensing (<10°C) ≤90 % RH (10 °C to 30 °C) ≤75 % RH (30 °C to 40 °C) ≤45 % RH (40 °C to 50 °C)
