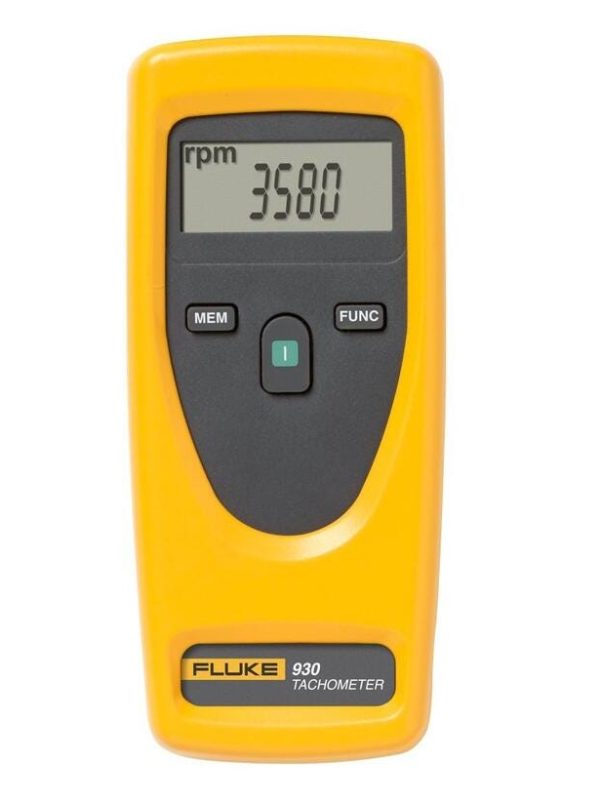

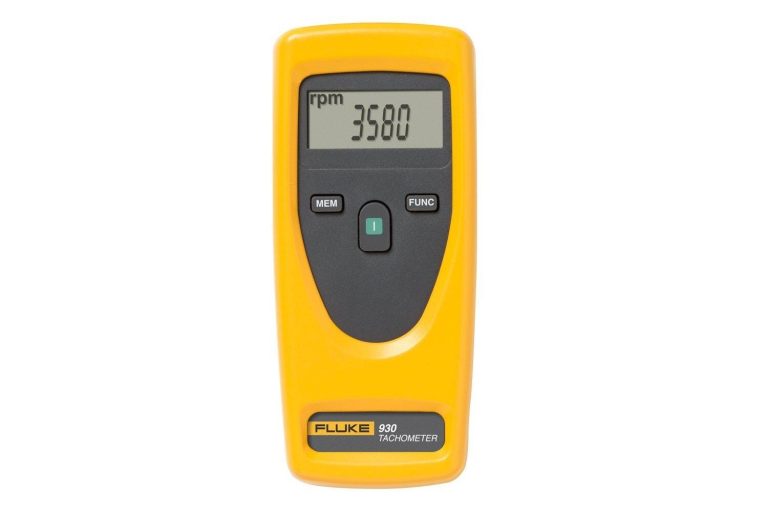

Fluke 930 Non-Contact Tachometer

Fluke 930 Non-Contact Tachometer: Optical RPM Range, Resolution & Technical Specifications

Fluke 930 Technical Specifications: Optical Resolution, Trigger Detection & Accuracy

The Fluke 930 tachometer utilizes an optical pulse detection mechanism calibrated to convert modulated infrared reflections into high-resolution angular frequency readings. Designed specifically for machinery where mechanical shaft contact is either hazardous or physically inaccessible, the internal microprocessor calculates precise RPM values through microsecond pulse-interval timing.

1. Dual-Stage Display Resolution: Resolves rotation down to 0.1 RPM within the lower critical band (1.0 to 999.9 RPM) for precise calibration of low-speed conveyors and gearboxes, automatically switching to 1.0 RPM resolution for high-speed rotors up to 99,999 RPM.
2. Optical Signal Reminder & Validated Capture: Features an on-screen trigger indicator that flashes upon detecting valid retro-reflective pulses, eliminating false counts caused by ambient fluorescent lighting or background glare.
3. Dynamic Memory Buffer: Retains peak rotational speed (Maximum), lowest cycle speed (Minimum), run-time Average, and the Last recorded measurement for immediate post-test documentation.
4. Optical Standoff Geometry: Functions reliably across distances from 50 mm up to 500 mm, allowing safe distance verification on high-speed induction motors, exhaust blowers, and open pully assemblies.
5. Industrial Chassis Rating: Built to withstand industrial plant floors with an operating thermal range of 0°C to 50°C and impact-resistant casing weighing 250 grams.

Rotating Machinery Diagnostics: Plant Preventive Maintenance Applications

Condition monitoring teams across manufacturing, petrochemical, and regional utility facilities (including DEWA, ADNOC, and Aramco subcontractor sites) deploy non-contact speed diagnostics to identify mechanical degradation before catastrophic equipment failure:

• VFD & Induction Motor Slip Verification: Directly verifies actual motor shaft RPM against drive inverter readouts to calculate motor rotor slip, diagnosing stator winding resistance degradation or mechanical overload.
• Centrifugal Pumps & Cooling Turbines: Validates impeller rotational velocity against engineered pump performance curves to detect cavitation, internal impeller erosion, or drive belt slippage.
• HVAC Air Handling Units (AHU): Audits ventilation fan RPM in industrial air-handling systems during seasonal commissioning without removing protective safety grilles.
• Continuous Conveyor Roller Lines: Inspects drive rollers in packaging, paper mill, and automated bottling lines where physical contact measurement would risk production line stoppage.

Tachometer Comparison: Fluke 930 vs. Fluke 931 vs. Testo 460

Choosing between optical and contact-capable tachometers requires analyzing operational speed thresholds, physical shaft accessibility, and linear surface measurement requirements:

Optical Measurement Setup: Reflective Tape Preparation & Standoff Guidelines

To ensure repeatable RPM measurements and prevent signal distortion during plant audits, adhere to standard optical measurement setup protocols:

1. Target Preparation: Clean grease and particulate buildup from the rotating shaft. Apply a small square (approx. 10 mm × 10 mm) of high-contrast retro-reflective target tape parallel to the shaft’s rotational axis.
2. Incident Alignment Angle: Position the Fluke 930 between 50 mm and 500 mm away from the target, holding the optical beam at a slight 15° to 30° angle relative to the perpendicular plane to avoid specular backscatter.
3. Signal Verification: Observe the display until the signal reminder icon remains steady, confirming the optical detector is receiving uninterrupted pulse sequences without false harmonics.
