Description

The Fluke A40B Series is designed to provide accurate and reliable current measurements in various applications. With shunt values ranging from 1 mA to 100 A, these current shunts cater to diverse needs, from low-current measurements to high-current applications.

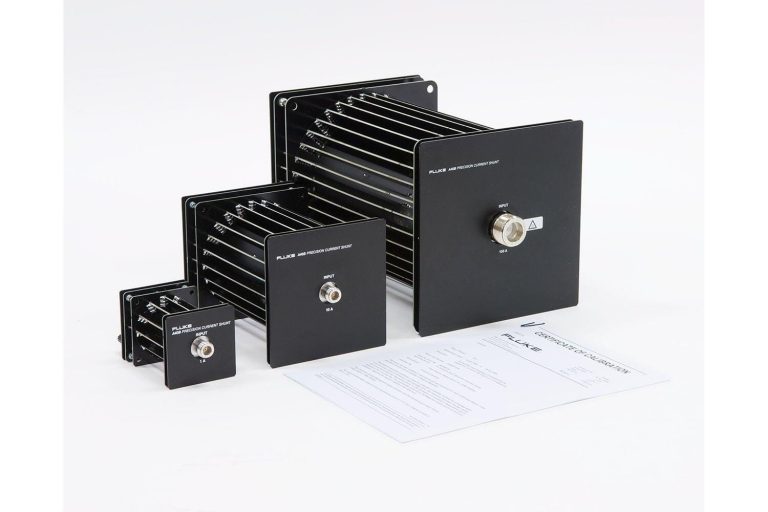

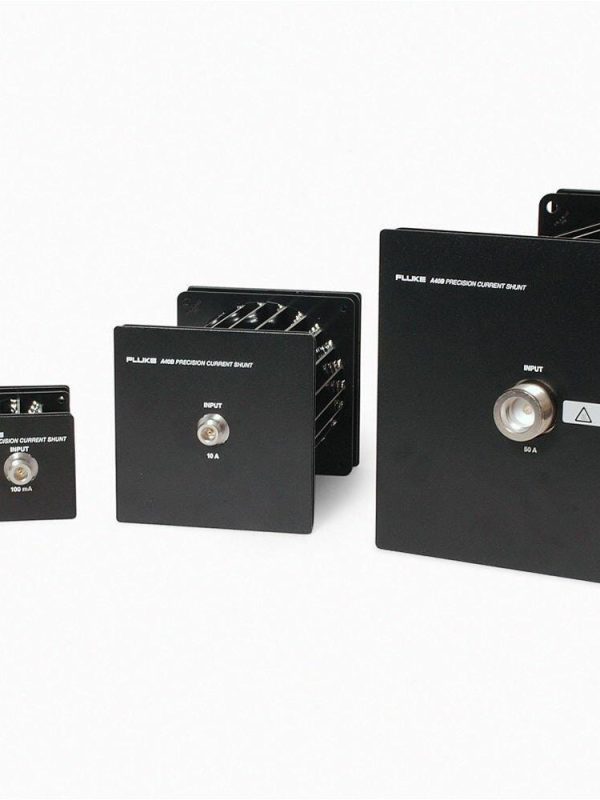

Featuring a compact design with Type-N and Type-LC connectors, the A40B Series ensures easy integration into your measurement setup.

Fluke Key Features

The Fluke A40B Series boasts several key features that make it an ideal choice for current measurements.

Shunt Value: 1 mA to 100 A
Dimensions: 70 mm x 70 mm x 124 mm (2.75 in x 2.75 in x 4.9 in)
Weight: 0.7 kg (1.6 lb)
Input Connector: Type-N (female)
Output Connector: Type-N (female)
Operating Temperature: 13 °C to 33 °C
Calibration Temperature Range: 18 °C to 28 °C
Humidity Range: ≤ 50 % RH

Who Needs the Fluke A40B Series?

The Fluke A40B Series is designed for professionals who require accurate and reliable current measurements in various applications, including electrical engineering, research, and development, and manufacturing.

With its high-precision design and wide operating range, the A40B Series is an ideal choice for technicians, engineers, and researchers who need to measure current with confidence.

Fluke Applications

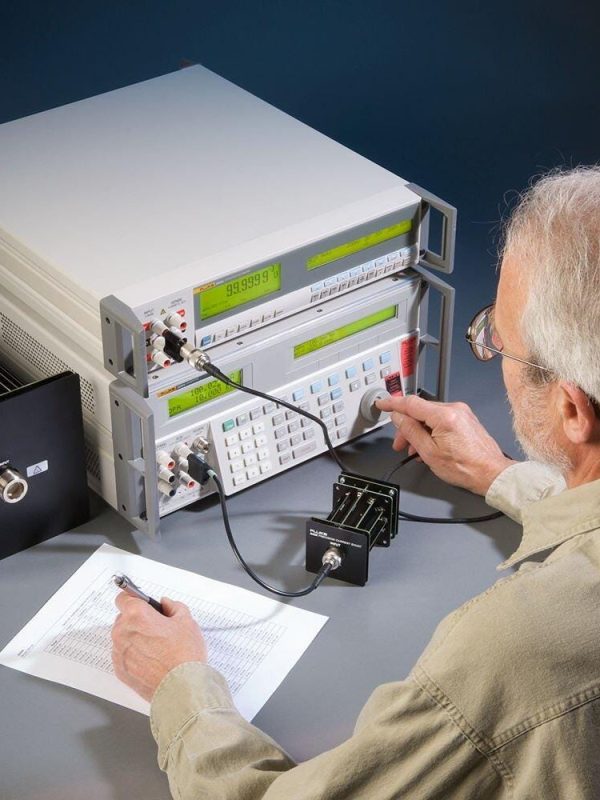

Use in electrical engineering and research applications to measure current with high accuracy.
Use in manufacturing to ensure precise current measurements during production.
Use in electrical testing and measurement to verify current levels in electrical systems.
Use in power quality analysis to measure current and voltage levels in electrical systems.
Use in electrical safety testing to ensure safe current levels in electrical systems.

Why Buy Fluke A40B Series from mme-ae?

The Fluke A40B Series is a high-quality current shunt that offers accurate and reliable measurements. By purchasing from mme-ae, you can trust that you are getting a genuine product with 17025 accreditation for calibration.

At Mohammad Mahdi Electronics, we offer a wide range of Fluke products, including the A40B Series, to cater to your measurement needs.

Fluke Specifications

General Specifications
Calibration Documentation	17025 accredited report of calibration included
Dimensions (maximum)	Shunt Value: 1 mA to 2 A Height: 70 mm (2.75 in) Width: 70 mm (2.75 in) Overall Length1: 124 mm (4.9 in) Shunt Value: 5 A to 20 A Height: 130 mm (5 in) Width: 130 mm (5 in) Overall Length1: 210 mm (8.25 in)) Shunt Value: 50 A and 100 A Height: 200 mm (7.9 in) Width: 200 mm (7.9 in) Overall Length1: 343 mm (13.5 in)) 1 Includes input and output connectors; subject to change by component vendor.
Physical/mechanical parameters	Shunt Value: 1 mA to 20 A Weight: 0.7 kg (1.6 lb) Input Connector: Type-N (female) Output Connector: Type-N (female) Shunt Value: 50 A and 100 A Weight: 3.4 kg (7.5 lb) Input Connector: Type-LC (female) Output Connector: Type-N (female)
Operating environment	Temperature: 13 °C to 33 °C Calibration temperature (TCal) range: 18 °C to 28 °C Humidity range for best specification 1,2: ≤ 50 % RH Altitude: 0 m to 3,000 m 1 Resistance stability is affected by humidity, but changes are reversible. 2 If the shunts are calibrated outside this RH, stability specifications will be met as long as the shunts are stored and used at the same relative humidity ± 10 % RH.
Storage and transit environments (for models other than the 1 mA current shunt)	Temperature to avoid damage: -20 °C to 140 °C Temperature and humidity to maintain performance1: 5 °C to 45 °C; 15 % to 80 % RH Non-operating altitude: 0 m to 12,000 m 1 Storage at extremes of temperature or humidity will cause a temporary change of shunt resistance by up to ± 20 ppm. When subsequently stored or used within the limits of the operating environment, the shunts will recover to their original resistance value within 30 days.

Datasheet

Datasheet (PDF)PDF

User Manual

User manual (PDF)PDF
