Description

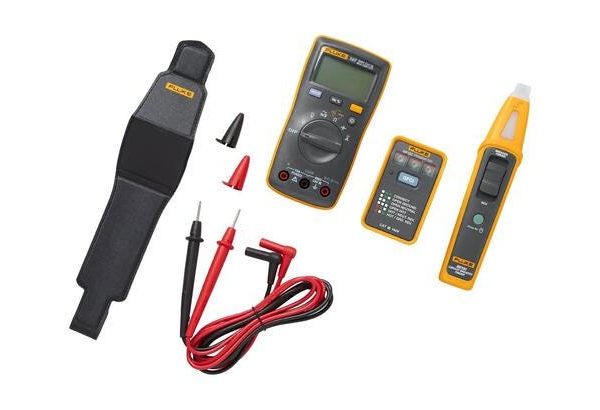

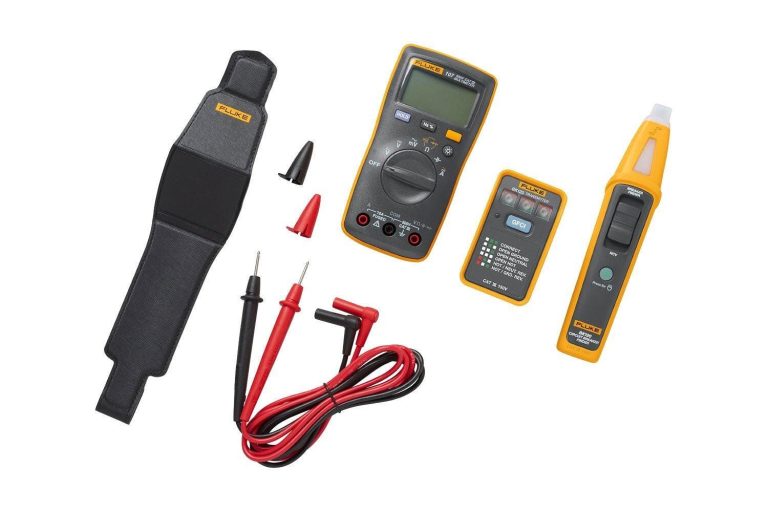

The Fluke BK120 SmartTrace Breaker Finder and 107 Pocket Digital Multimeter is a versatile and reliable tool for electrical professionals. With its advanced SmartTrace technology, this device allows for precise identification of electrical panel breakers, reducing the risk of electrical shock and improving overall safety.

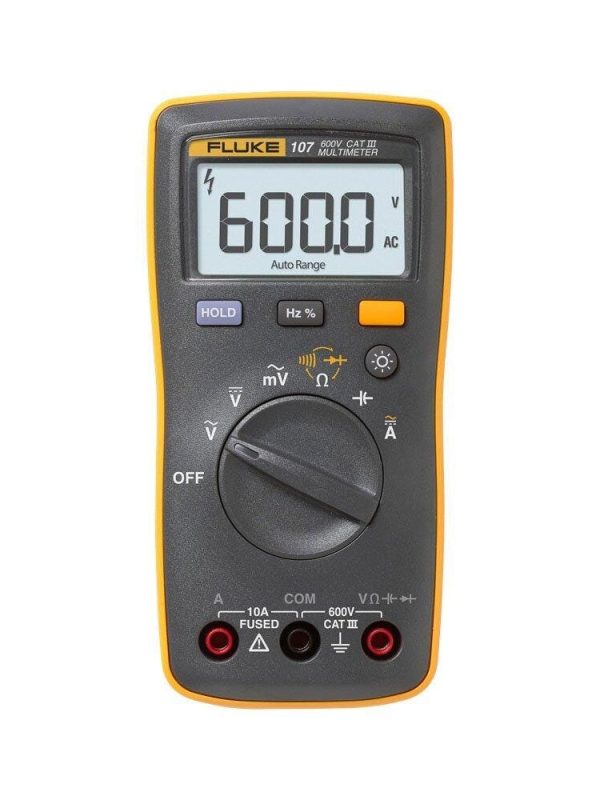

Featuring a 107 Pocket Digital Multimeter with a 6000 counts display, this device provides accurate measurements of AC and DC voltage, resistance, capacitance, and frequency. Its compact design and lightweight construction make it easy to carry and use in a variety of applications.

Fluke BK120 Key Features

The Fluke BK120 SmartTrace Breaker Finder and 107 Pocket Digital Multimeter offers a range of key features that make it an essential tool for electrical professionals.

SmartTrace Breaker Finder technology for precise identification of electrical panel breakers
107 Pocket Digital Multimeter with 6000 counts display
AC voltage measurement up to 600 V
DC voltage measurement up to 600 V
Resistance measurement up to 40 MΩ
Capacitance measurement up to 1000 μF
Frequency measurement up to 100 kHz

Who Needs the Fluke BK120?

The Fluke BK120 SmartTrace Breaker Finder and 107 Pocket Digital Multimeter is designed for electrical professionals who require a reliable and accurate tool for measuring electrical parameters. This device is ideal for use in a variety of applications, including electrical panel testing, circuit analysis, and troubleshooting.

Fluke BK120 Applications

Electrical Panel Testing: Use the Fluke BK120 to identify electrical panel breakers and ensure safe and efficient operation.
Circuit Analysis: Measure AC and DC voltage, resistance, capacitance, and frequency to diagnose circuit issues.
Troubleshooting: Use the Fluke BK120 to identify and isolate electrical faults and ensure safe and efficient operation.
Electrical Maintenance: Use the Fluke BK120 to perform routine electrical maintenance tasks, such as checking circuit breakers and ensuring safe and efficient operation.
Electrical Installation: Use the Fluke BK120 to ensure safe and efficient electrical installation, including measuring electrical parameters and identifying potential issues.
Electrical Testing: Use the Fluke BK120 to perform electrical testing, including measuring electrical parameters and identifying potential issues.

Why Buy Fluke BK120 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke BK120 SmartTrace Breaker Finder and 107 Pocket Digital Multimeter at competitive prices, along with exceptional customer service and support. Our team of experts is dedicated to helping you find the right tool for your needs, and we offer a range of services to ensure your device is properly calibrated and maintained.

Fluke BK120 Specifications

Precision specifications
AC voltage (40 Hz to 500 Hz)¹		Range	Resolution	Accuracy
		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC voltage		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
Exchange millivolts		600.0 mV	0.1 mV	3.0 % + 3
Diode test²		2.000 V	0.001 V	10 %
Resistance (ohm)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitor³		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency⁴ Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1 % + 3
Duty cycle⁴		1 % to 99 %	0.10 %	1 % typical case⁵
AC current (40 Hz – 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the open circuit test voltage is 2.0 V and the short circuit current is < 0.6 mA. The parameters do not include errors due to test lead capacitance and capacitor substrate (up to 1.5 nF in the 50 nF range). All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the frequency is 50 Hz or 60 Hz and the duty cycle is 10% to 90%.
Features	Overload protection	Input impedance (nominal value)	Common mode rejection ratio	Normal mode rejection ratio
AC voltage	600 V ¹	>10 MΩ <100 pF ²	>60 dB at 50 Hz or 60 Hz at DC current	−
Exchange millivolts	600 mV	>1M, <100 pF	>80 dB at 50 Hz or 60 Hz	−
DC voltage	600 V ¹	>10 MΩ <100 pF	>100 dB at 50 Hz or 60 Hz at DC current	>60 dB at 50 Hz or 60 Hz
Up to 6 x 105 V Hz For medium voltage (alternating current), the input impedance is approximately 1 MΩ.
General technical indicators
The highest voltage applied to any terminal and ground		600 V
Display (LCD)		6000 counts, updated three times per second
Type of battery		Two AAA batteries (NEDA 24A, IEC LR03)
Battery life		At least 200 hours
Temperature
Operating temperature		0 °C to 40 °C
Storage temperature		-30 °C to 60 °C
Relative humidity
Working humidity		No condensation below 10 °C ≤ 90 % at 10 °C to 30 °C; ≤ 75 % at 30 °C to 40 °C
Working humidity, 40 MΩ range		≤ 80 % at 10 °C to 30 °C; ≤ 70 % at 30 °C to 40 °C
Altitude
Working elevation		2000 m
Storage altitude		12,000 m
Temperature coefficient		0.1 X (specified accuracy) / °C (28 °C)
Current input fuse protection		11A, 1000V fast-melting type, must use Fluke designated parts
Volume (height x width x length)		142 mm x 69 mm x 28 mm
Weight		200 g
Protection level		IEC 60529: IP 40
Safety		IEC 61010-1: 600 V CAT III, pollution degree 2
Electromagnetic environment		IEC 61326-1: Portable
Electromagnetic compatibility		Applicable only in Korea. Class A equipment (industrial broadcasting and communication equipment)¹
¹ This product meets the requirements of industrial (Class A) electromagnetic wave equipment, which should be noted by the seller or user. The device is suitable for use in a work environment, not a home environment.
