Description

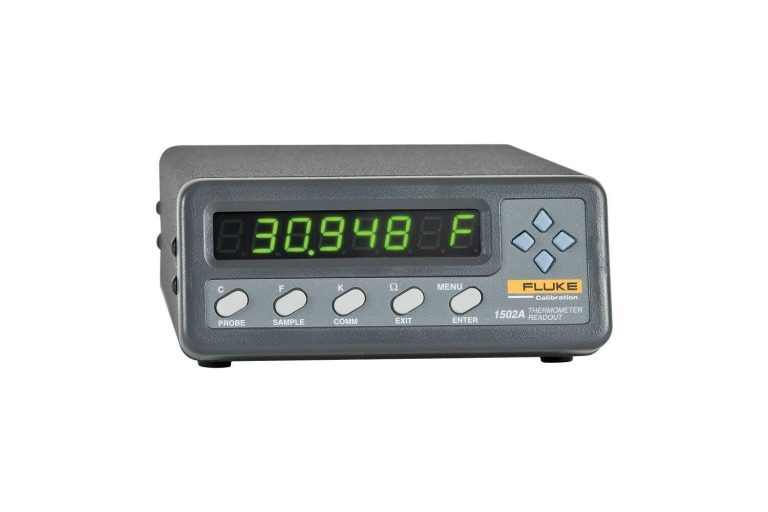

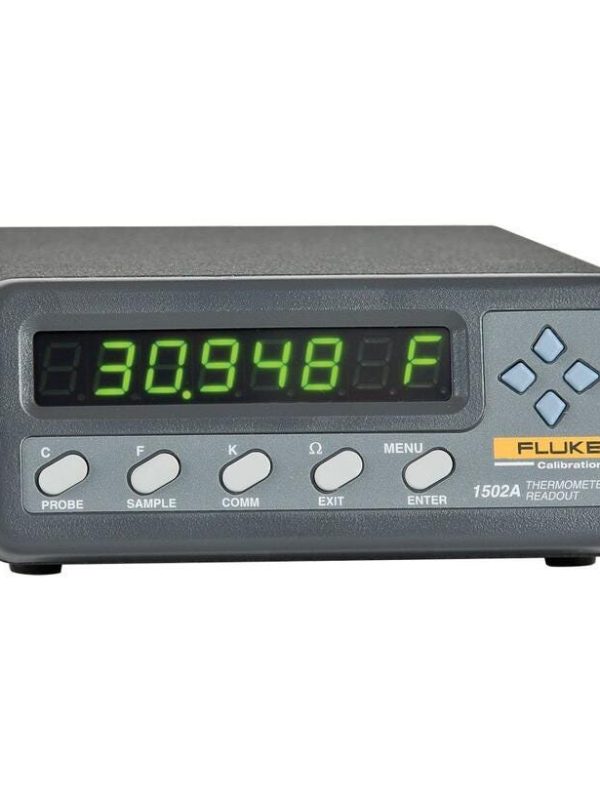

The Fluke Calibration 1502A/1504 Thermometer Readout is designed to provide accurate temperature measurements in a variety of applications. With a temperature range of −200 °C to 962 °C, this device is ideal for use in industrial, scientific, and research settings.

Whether you’re working with sensitive equipment or conducting experiments, the Fluke Calibration 1502A/1504 Thermometer Readout is a reliable choice for accurate temperature measurement.

Fluke Calibration Key Features

The Fluke Calibration 1502A/1504 Thermometer Readout features a range of key specifications, including:

Temperature Range: −200 °C to 962 °C (−328 °F to 1764 °F)
Resistance Range: 0 Ω to 400 Ω, auto-ranging
Probe: Nominal RTPW: 10 Ω to 100 Ω RTD, PRT, or SPRT
Characterizations: ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 IPTS-68: R0, a, d, a4, and c4 Callendar-Van Dusen: R0, a, d, and b
Resistance Accuracy: 0.0005 Ω (0 Ω to 20 Ω), 25 ppm (20 Ω to 400 Ω)
Temperature Accuracy: ±0.004 °C at −100 °C, ±0.006 °C at 0 °C, ±0.009 °C at 100 °C, ±0.012 °C at 200 °C, ±0.018 °C at 400 °C, ±0.024 °C at 600 °C

Who Needs the Fluke Calibration?

The Fluke Calibration 1502A/1504 Thermometer Readout is designed for use in a variety of applications, including:

Industrial settings, such as manufacturing and quality control

Scientific research, including laboratory and fieldwork

Research and development, including testing and validation

Fluke Calibration Applications

Use in industrial settings: The Fluke Calibration 1502A/1504 Thermometer Readout is ideal for use in industrial settings, including manufacturing and quality control.
Use in scientific research: This device is also suitable for use in scientific research, including laboratory and fieldwork.
Use in research and development: The Fluke Calibration 1502A/1504 Thermometer Readout is also used in research and development, including testing and validation.
Use in calibration laboratories: This device is also used in calibration laboratories, including ISO 17025-accredited calibration.
Use in temperature measurement: The Fluke Calibration 1502A/1504 Thermometer Readout is used for temperature measurement in a variety of applications.
Use in temperature control: This device is also used for temperature control in industrial, scientific, and research settings.

Why Buy Fluke Calibration from mme-ae?

When it comes to accurate temperature measurement, Mohammad Mahdi Electronics is the trusted partner for professionals. With a wide range of products, including the Fluke Calibration 1502A/1504 Thermometer Readout, we offer the solutions you need to get the job done.

At mme-ae, we understand the importance of accuracy and reliability in temperature measurement. That’s why we offer a range of products, including the Fluke Calibration 1502A/1504 Thermometer Readout, designed to provide you with the results you need.

Fluke Calibration Specifications

Specifications	1502A	1504
Temperature Range^†	−200 °C to 962 °C (−328 °F to 1764 °F)	Any thermistor range
Resistance Range	0 Ω to 400 Ω, auto-ranging	0 Ω to 1 MΩ, auto-ranging
Probe	Nominal RTPW: 10 Ω to 100 Ω RTD, PRT, or SPRT	Thermistors
Characterizations	ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 IPTS-68: R0, a, d, a4, and c4 Callendar-Van Dusen: R0, a, d, and b	Steinhart-Hart thermistor polynomial Callendar-Van Dusen: R0, a, d, and b
Resistance Accuracy (ppm of reading)	0 Ω to 20 Ω: 0.0005 Ω 20 Ω to 400 Ω: 25 ppm	0 Ω to 5 KΩ: 0.5 Ω 5 KΩ to 200 KΩ: 100 ppm 200 KΩ to 1 MΩ: 300 ppm
Temperature Accuracy^†	±0.004 °C at −100 °C ±0.006 °C at 0 °C ±0.009 °C at 100 °C ±0.012 °C at 200 °C ±0.018 °C at 400 °C ±0.024 °C at 600 °C	±0.002 °C at 0 °C ±0.002 °C at 25 °C ±0.004 °C at 50 °C ±0.010 °C at 75 °C ±0.020 °C at 100 °C (Using 10 KΩ thermistor sensor, a=0.04. Does not include probe uncertainty or characterization errors.)
Operating Temperature Range	16 °C to 30 °C	13 °C to 33 °C
Resistance Resolution	0 Ω to 20 Ω: 0.0001 Ω 20 Ω to 400 Ω: 0.001 Ω	0 Ω to 10 KΩ: 0.01 Ω 10 KΩ to 100 KΩ: 0.1 Ω 100 KΩ to 1 MΩ: 1 Ω
Temperature Resolution	0.001 °C	0.0001 °C
Excitation Current	0.5 and 1 mA, user selectable, 2 Hz	2 and 10 µA, automatically selected
Measurement Period	1 second
Digital Filter	Exponential, 0 to 60 seconds time constant (user selectable)
Probe Connection	4-wire with shield, 5-pin DIN connector
Communications	RS-232 serial standard IEEE-488 (GPIB) optional
Display	8-digit, 7-segment, yellow-green LED; 0.5-inch-high characters
Power	115 VAC (±10 %), 50/60 Hz, 1 A, nominal 230 VAC (±10 %), 50/60 Hz, 1 A, nominal, specify
Size (HxWxD)	61 x 143 x 181mm (2.4 x 5.6 x 7.1 in)
Weight	1.0 kg (2.2 lb.)
Calibration	ISO 17025-accredited calibration provided
^†Temperature ranges and accuracy may be limited by the sensor you use.
