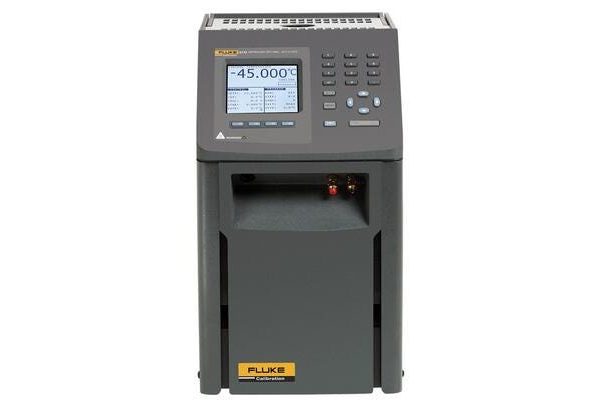

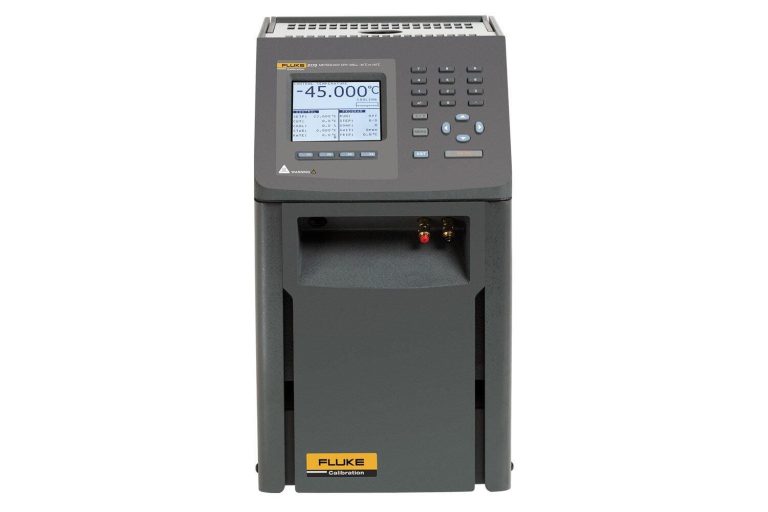

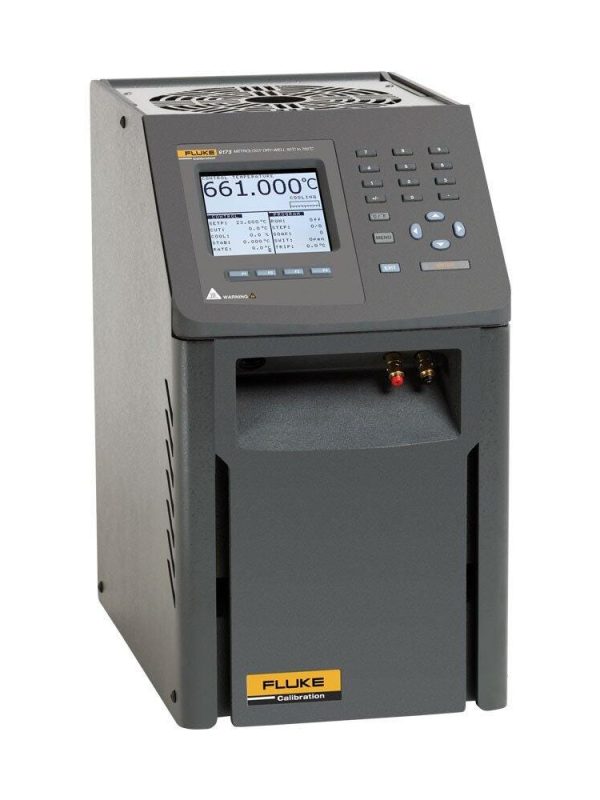

Fluke Calibration 9170 Metrology Well

The Fluke Calibration 9170 Metrology Well is a precision temperature measurement instrument designed for demanding applications. Built to provide accurate and reliable results, this well is ideal for calibration and metrology labs, as well as research and development facilities.

Fluke Calibration 9170 Metrology Well Key Features

This instrument boasts a wide temperature range of –45°C to 140°C, with a resolution of 0.001°C. The Fluke Calibration 9170 Metrology Well also features a built-in reference input temperature range of –200°C to 962°C, making it an ideal choice for a variety of applications.

• Range: –45°C to 140°C (–49°F to 284°F)
• Display accuracy: ±0.1°C full range
• Stability: ±0.005°C full range
• Axial uniformity: ±0.1°C at –45°C, ±0.04°C at –35°C, ±0.02°C at 0°C, ±0.07°C at 140°C
• Radial uniformity: ±0.01°C full range
• Loading effect: ±0.02°C at –45°C, ±0.005°C at –35°C, ±0.01°C at 140°C
• Hysteresis: 0.025°C
• Well depth: 160 mm (6.3 in)
• Resolution: 0.001°C
• Display: LCD, °C or °F, user-selectable
• Key pad: Ten key with decimal and ± button, function keys, menu key, and °C / °F key
• Cooling time: 44 min: 23°C to –45°C, 19 min: 23°C to –30°C, 19 min: 140°C to 23°C
• Heating time: 32 min: 23°C to 140°C, 45 min: –45°C to 140°C
• Size: 366 x 203 x 323 mm (14.4 x 8 x 12.7 in)
• Weight: 14.2 kg (31.5 lb)
• Power: 115 V AC (±10%), or 230 V AC (±10%), 50/60 Hz, 550 W
• Computer interface: RS-232 interface with 9930 Interface-it control software included

Who Needs the Fluke Calibration 9170 Metrology Well?

The Fluke Calibration 9170 Metrology Well is designed for professionals who require precise temperature measurement in their work. This includes calibration and metrology labs, research and development facilities, and any organization that demands high accuracy and reliability in their temperature measurement instruments.

Fluke Calibration 9170 Metrology Well Applications

• Use case 1: Calibration and metrology labs require precise temperature measurement for their instruments and equipment.
• Use case 2: Research and development facilities use the Fluke Calibration 9170 Metrology Well to test and validate their temperature measurement instruments.
• Use case 3: Any organization that demands high accuracy and reliability in their temperature measurement instruments can benefit from the Fluke Calibration 9170 Metrology Well.

Why Buy Fluke Calibration 9170 Metrology Well from MME?

At MME, we understand the importance of precision and reliability in temperature measurement instruments. That’s why we offer the Fluke Calibration 9170 Metrology Well from mme-ae, a trusted and reliable source for all your calibration and metrology needs.

Fluke Calibration 9170 Metrology Well Specifications
