Description

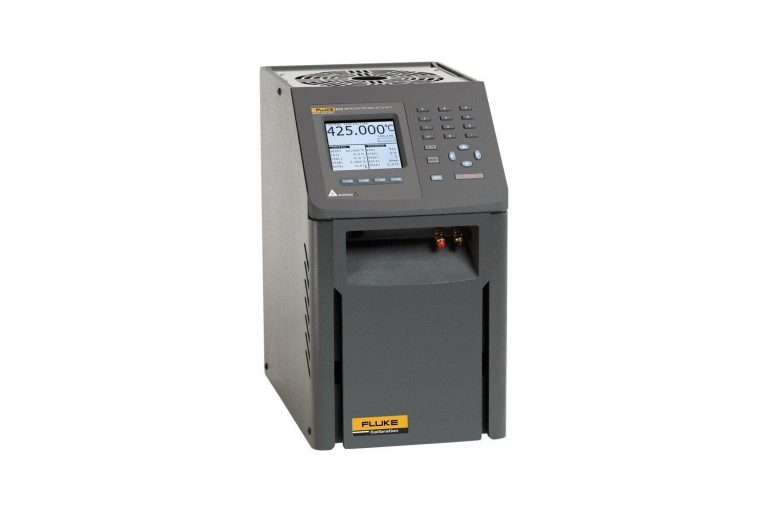

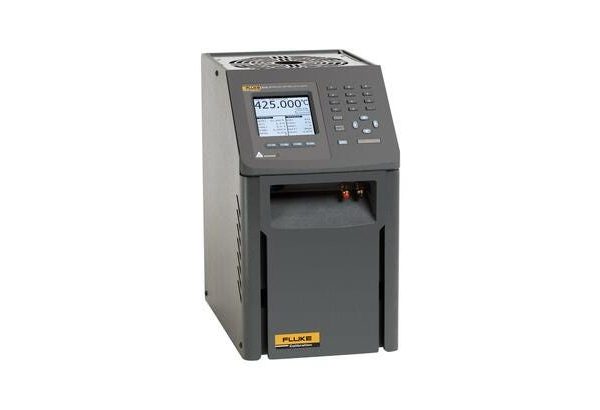

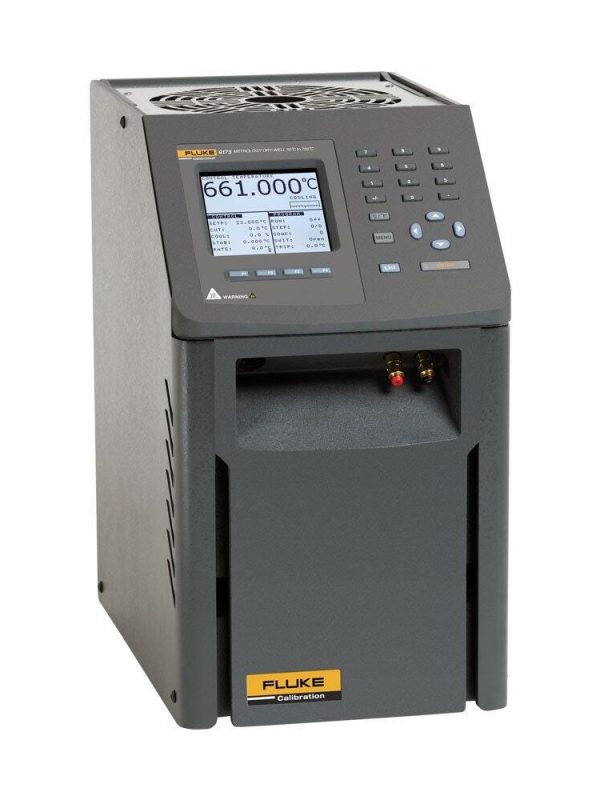

The Fluke Calibration 9171 Metrology Well is a high-precision temperature measurement instrument designed for demanding applications. With its wide temperature range of –30°C to 155°C and ±0.1°C display accuracy, this instrument provides reliable and accurate measurements.

Featuring a 203 mm deep well, the Fluke Calibration 9171 Metrology Well is ideal for measuring large samples, and its 10-key keypad with decimal and ± buttons makes data entry easy and efficient.

Fluke Calibration Key Features

The Fluke Calibration 9171 Metrology Well boasts a range of key features that make it an ideal choice for demanding applications, including:

±0.1°C display accuracy
–30°C to 155°C temperature range
NVLAP accredited calibration
NIST-traceable data
RS-232 computer interface
203 mm deep well
10-key keypad

Who Needs the Fluke Calibration?

The Fluke Calibration 9171 Metrology Well is designed for technicians and engineers who require high-precision temperature measurements in demanding applications. Whether you’re working in a laboratory, manufacturing environment, or quality control setting, this instrument provides the accuracy and reliability you need to get the job done.

Fluke Calibration Applications

Temperature measurement in laboratory settings
Quality control in manufacturing environments
Research and development applications
Calibration of temperature sensors and probes
Temperature measurement in industrial processes

Why Buy Fluke Calibration from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke Calibration 9171 Metrology Well at competitive prices, along with expert support and a wide range of accessories and calibration services. Whether you’re looking for a high-precision temperature measurement instrument for your laboratory, manufacturing environment, or quality control setting, we have the solution you need.

Fluke Calibration Specifications

Specifications
Range (at 23°C ambient)	–30°C to 155°C (–22°F to 311°F)
Display accuracy	±0.1°C full range
Stability	±0.005°C full range
Axial uniformity	±0.025°C at –30°C ±0.02°C at 0°C ±0.07°C at 155°C
Radial uniformity	±0.01°C full range
Loading effect (with a 6.35 mm reference probe and three 6.35 mm probes)	±0.005°C at –30°C ±0.005°C at 0°C ±0.01°C at 155°C
Hysteresis	0.025°C
Well depth	203 mm (8 in)
Resolution	0.001°C
Display	LCD, °C or °F, user-selectable
Key pad	Ten key with decimal and ± button. Function keys, menu key, and °C / °F key.
Cooling time	30 min: 23°C to –30°C 25 min: 155°C to 23°C
Heating time	44 min: 23°C to 155°C 56 min: –30°C to 155°C
Size (H x W x D)	366 x 203 x 323 mm (14.4 x 8 x 12.7 in)
Weight	15 kg (33 lb)
Power	115 V AC (±10%), or 230 V AC (±10%), 50/60 Hz, 550 W
Computer interface	RS-232 included
Traceable calibration (NIST)	Data at –30°C, 0°C, 50°C, 100°C, and 155°C
Specifications	Built-in Reference Input
Temperature range	–200°C to 962°C (–328°F to 1764°F)
Resistance range	0 Ω to 400 Ω, auto-ranging
Characterizations	ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R₀, a, b, d
Resistance accuracy	0 Ω to 20 Ω: 0.0005 W 20 Ω to 400 Ω: 25 ppm
Temperature accuracy (does not include probe uncertainty)	10 Ω PRTs: ±0.013°C at 0°C ±0.014°C at 155°C ±0.019°C at 425°C ±0.028°C at 700°C	25 Ω and 100 Ω PRTs: ±0.005°C at –100°C ±0.007°C at 0°C ±0.011°C at 155°C ±0.013°C at 225°C ±0.019°C at 425°C ±0.027°C at 661°C
Resistance resolution	0 Ω to 20 Ω: 0.0001 Ω 20 Ω to 400 Ω: 0.001 Ω
Measurement period	1 second
Probe connection	4-wire with shield, 5-pin DIN connector
Calibration	NVLAP accredited (built-in reference input only), NIST-traceable calibration provided

Datasheet

Datasheet (PDF)PDF

User Manual

User manual (PDF)PDF
