Description

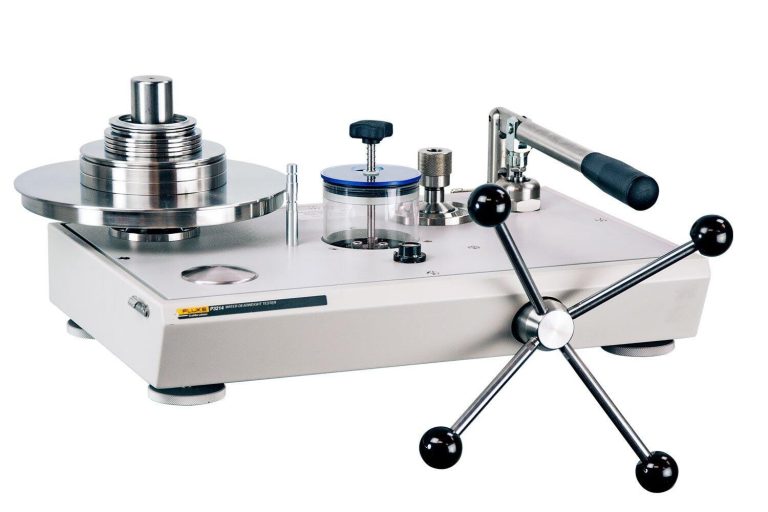

The Fluke Calibration P3200 Hydraulic Deadweight Tester is a reliable and accurate solution for pressure measurement applications. With its ability to measure up to 10,000 psi (700 bar), this deadweight tester is ideal for a variety of industries, including oil and gas, aerospace, and manufacturing.

Featuring a distilled water operated design, the P3200 ensures accurate and precise measurements, with an accuracy of ±0.015% of reading. The Series 3 non-magnetic austenitic stainless steel construction provides durability and resistance to corrosion, making it perfect for harsh environments.

Fluke Calibration Key Features

The Fluke Calibration P3200 Hydraulic Deadweight Tester offers a range of key features that make it an ideal choice for pressure measurement applications.

Pressure Ranges: Up to 10,000 psi (700 bar)
Accuracy: ±0.015% of reading (±0.008% optional)
Materials of Construction: Series 3 non-magnetic austenitic stainless steel
PressCal Software: Windows-based software program for easy calibration and creation of calibration certificates
Operating Fluids: Distilled water, Skydrol, or brake fluids

Who Needs the Fluke Calibration?

The Fluke Calibration P3200 Hydraulic Deadweight Tester is designed for use in a variety of industries, including oil and gas, aerospace, and manufacturing. It is ideal for technicians and engineers who require accurate and precise pressure measurements.

With its ability to measure up to 10,000 psi (700 bar), this deadweight tester is perfect for applications such as calibration of pressure gauges, testing of hydraulic systems, and measurement of pressure in industrial processes.

Fluke Calibration Applications

Calibration of Pressure Gauges: The Fluke Calibration P3200 Hydraulic Deadweight Tester is ideal for calibration of pressure gauges in a variety of industries.
Testing of Hydraulic Systems: This deadweight tester is perfect for testing of hydraulic systems, including measurement of pressure and flow rate.
Measurement of Pressure in Industrial Processes: The Fluke Calibration P3200 Hydraulic Deadweight Tester is designed for measurement of pressure in industrial processes, including oil and gas, aerospace, and manufacturing.
Research and Development: This deadweight tester is ideal for research and development applications, including testing of new materials and equipment.
Education and Training: The Fluke Calibration P3200 Hydraulic Deadweight Tester is perfect for educational institutions and training programs, including teaching of pressure measurement principles and techniques.

Why Buy Fluke Calibration from mme-ae?

By purchasing the Fluke Calibration P3200 Hydraulic Deadweight Tester from Mohammad Mahdi Electronics, you can be confident that you are getting a high-quality product that meets your needs.

Fluke Calibration Specifications

Pressure Ranges
Distilled water operated	Ranges to 10,000 psi (700 bar)
Accuracy
Accuracy¹	±0.015% of reading (±0.008% optional)
1. Accuracy based on % of reading from 10% to 100% of the piston range when used in accordance with the corrections found on the calibration certificate. Below 10% ± (accuracy class) x 10% of the piston range.
Materials of Construction
Standard weight material	Series 3 non-magnetic austenitic stainless steel
Weight density	7.8 g/cm³
Optional fractional weights	Solution heat treated aluminum
Weight density	2.7 g/cm³
Piston material	Tungsten carbide with nickel binder Density- 15.0 g/cm³
Cylinder material	Hardened martensitic steel Tungsten carbide (water above 500 psi, 35 bar)
Thermal coefficients of expansion	Oil piston/cylinder 16.5 ppm/°C Water (above 500 psi, 35 bar) 11 ppm/°C
General
Test port adaptors	1/8, 1/4, 3/8 and 1/2 NPT or BSP
Instrument weight	36 lbs (16 kg)
Instrument size (W x D x H)	17.5 x 12 x 8.5 in (440 x 300 x 215 mm)
Mass set weight (typical)	80 lbs (36 kg)
Reservoir volume	150 cc
Screw press displacement	5.5 cc
Pump displacement	4.7 cc per stroke
O-ring seal materials	Buna N as standard, Viton and EPDM available
Weight Increments
Minimum standard weight increments	Up to 500 psi (35 bar): 1 psi (0.1 bar) 500 to 5000 psi (35 to 350 bar): 10 psi (1 bar) 5000 to 20,000 psi (350 to 1400 bar): 20 psi (2 bar) Model P3112: 1 psi (0.1 bar)
Optional fractional weights	Up to 500 psi (35 bar): 0.1 psi (0.01 bar) 500 to 5000 psi (35 to 350 bar): 1 psi (0.1 bar) 5000 to 20,000 psi (350 to 1400 bar): 2 psi (0.2 bar)
Operating Fluids
Operating fluids	Distilled water
Options
PressCal software	Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments
Fluids	Instruments can be supplied for use with Skydrol or brake fluids. Due to the aggressive nature of these fluids the standard nitrile seals and the acrylic reservoir tube will be replaced by either Viton or EPDM seals (as applicable) and an aluminum reservoir tube. For these or any other specialty fluid applications, please consult the factory.

Datasheet

Datasheet (PDF)PDF

User Manual

User manual (PDF)PDF
