Description

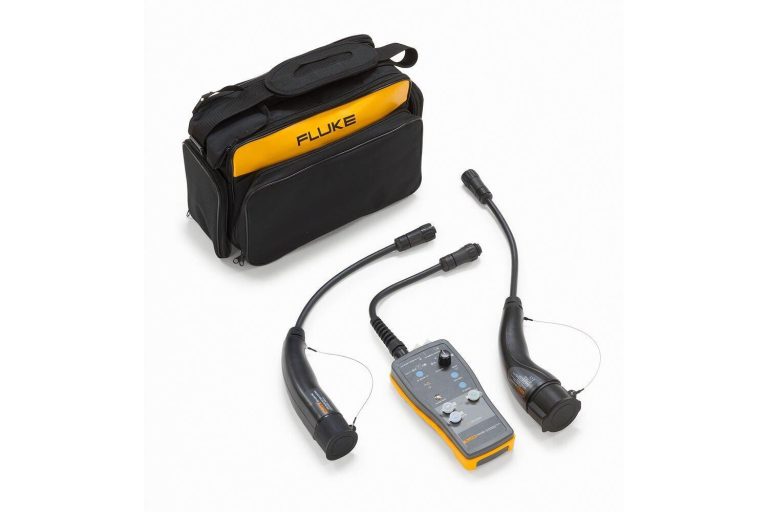

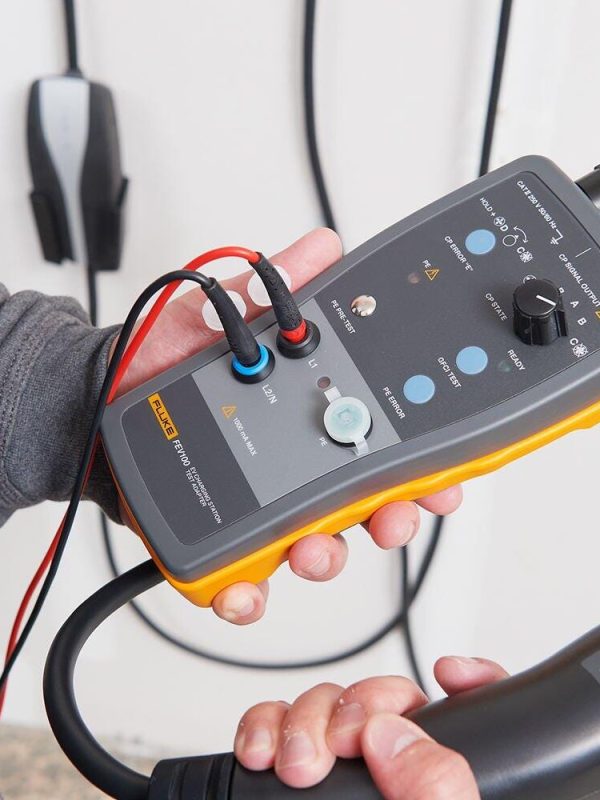

The Fluke eMobility Tools Kit: FEV100 Test Adapter and Connector for Tesla Station is designed to ensure safe and efficient charging of electric vehicles. This comprehensive kit includes a test adapter and connector specifically designed for Tesla stations, meeting the highest safety standards.

Fluke Key Features

The FEV100 Test Adapter and Connector for Tesla Station boasts a range of impressive features, including:

Input voltage: UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal
Internal power consumption: 2 W max.
Operating temperature: -4 °F to 104 °F (-20 °C to 40 °C)
Storage temperature: -4 °F to 122 °F (-20 °C to 50 °C)
Operating humidity range: 10 % to 85 % relative humidity non-condensing
Storage relative humidity: 0 % to 85 % non-condensing
Operating altitude: 6561 ft (2000 m) max.
Dimensions (H × W × D): Approx. 8.66 x 4.33 x 1.77 in (220 x 110 × 45 mm) without cable assembly
Weight: Approx. 4.4 lb (2 kg)

Who Needs the Fluke FEV100 Test Adapter and Connector for Tesla Station?

The Fluke FEV100 Test Adapter and Connector for Tesla Station is designed for technicians, engineers, and buyers who require a reliable and efficient solution for testing and charging electric vehicles. This comprehensive kit meets the highest safety standards, ensuring safe and efficient charging.

Fluke Applications

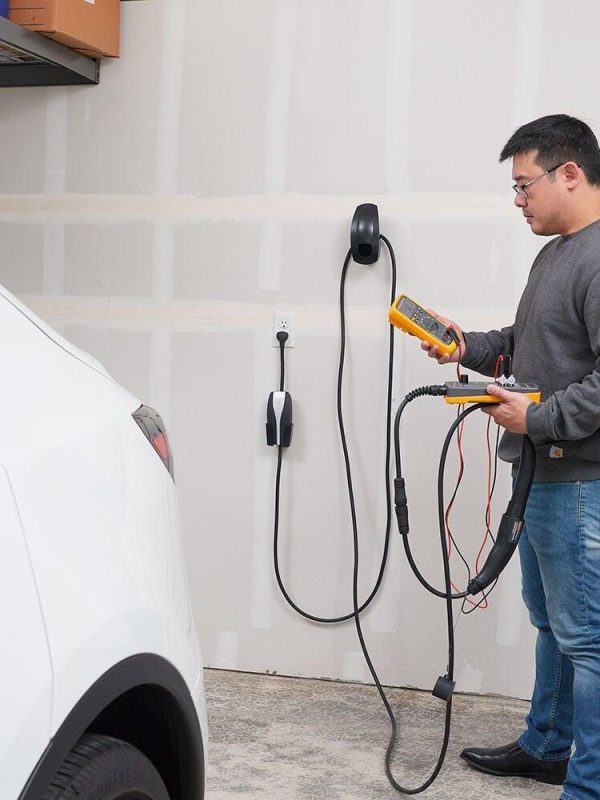

Ensure safe and efficient charging of electric vehicles at Tesla stations
Meet IEC 61010-1 safety standards for electric vehicle charging
Compact design for easy storage and transportation
Compatible with CP States A, B, C, and D
Includes measuring terminals and CP signal output terminals for testing and charging

Why Buy the Fluke FEV100 Test Adapter and Connector for Tesla Station from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke FEV100 Test Adapter and Connector for Tesla Station at competitive prices, ensuring you get the best value for your money. Our team of experts is always available to provide you with the best advice and support, ensuring you get the most out of your purchase.

Fluke Specifications

General specifications
Input voltage	UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal
EV connector	SAE J1772 socket (type 1, 5P single-phase) Connector for Tesla™ station
Internal power consumption	2 W max.
Operating temperature	-4 °F to 104 °F (-20 °C to 40 °C)
Storage temperature	-4 °F to 122 °F (-20 °C to 50 °C)
Operating humidity range	10 % to 85 % relative humidity non-condensing
Storage relative humidity	0 % to 85 % non-condensing
Operating altitude	6561 ft (2000 m) max.
Dimensions (H × W × D)	Approx. 8.66 x 4.33 x 1.77 in (220 x 110 × 45 mm) without cable assembly
Weight	Approx. 4.4 lb (2 kg)
Safety standards	IEC 61010-1, Pollution Degree 2
Safety standards	IEC 61010-2-030
Measurement category	CAT II 250 V
IP protection class	IP54
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Basic Electromagnetic Environment
	CISPR 11: Group 1, Class A
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
	Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
	Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Functions
CP States	A, B, C, D
CP Error “E”	On/off
PE Error	On/off
GFCI Test	Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms
PE Pre-Test (typical)	Visible indication >30 V on PE conductor
Outputs (for test purpose only)
Measuring terminals	Max. 250 V 50/60 Hz, CAT II 250 V
L1, L2/N, PE	Max. 250 V 50/60 Hz, CAT II 250 V
CP signal output terminals	Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE
