Fluke FLK-FEV500/CCS2 CCS2 Compliance Tester

The Fluke FLK-FEV500/CCS2 is a specialized circuit analyzer designed for electric vehicle fast charging infrastructure. Engineers and technicians rely on this instrument to validate CCS (Combined Charging System) compliance, ensuring safety and performance before deployment. With the rapid expansion of EV charging networks, having a reliable tool to verify communication protocols, insulation integrity, and load characteristics is essential for maintaining grid stability and user safety.

Fluke FLK-FEV500/CCS2 Key Features

This handheld tester performs the full suite of CCS validation tests defined by international standards. It conducts low-level communication and SLAC testing to verify pilot signal behavior, while also executing continuity, insulation resistance, and load tests including cable check voltage measurement. The device supports IMD and residual voltage testing, making it a comprehensive solution for commissioning and maintenance teams. With a maximum open-loop voltage of 5V and test current capability of up to 10A, the FLK-FEV500/CCS2 safely evaluates EVSE circuits without risking damage to sensitive electronics. The instrument features live circuit detection that inhibits testing if probe voltage exceeds 60V, and includes a user-adjustable probe zeroing function for accurate resistance readings.

• CCS Low-Level Communication and SLAC Test
• Continuity Test
• Insulation Resistance Test
• Load Test (including Cable Check Voltage Measurement)
• IMD Test
• Residual Voltage Test

Who Needs the Fluke FLK-FEV500/CCS2?

Electric vehicle charging station installers and commissioning engineers are the primary users of the Fluke FLK-FEV500/CCS2. These professionals must verify that charging infrastructure meets IEC61557-4, IEC61557-2, and IEC61557-8 standards before handing over to operators. Maintenance technicians rely on this device for periodic safety checks and fault diagnosis on existing CCS installations. Electrical consultants specifying new EVSE projects require this level of testing to ensure regulatory compliance and client safety. Government inspectors and quality assurance teams also benefit from the instrument’s ability to provide documented proof of compliance with international standards.

The Fluke FLK-FEV500/CCS2 is equally valuable for OEM manufacturers developing new charging hardware, as it allows for early-life validation of communication protocols and safety circuits. R&D teams can use the device to characterize component performance under various operating conditions, ensuring that final products meet stringent durability and safety requirements.

Fluke FLK-FEV500/CCS2 Applications

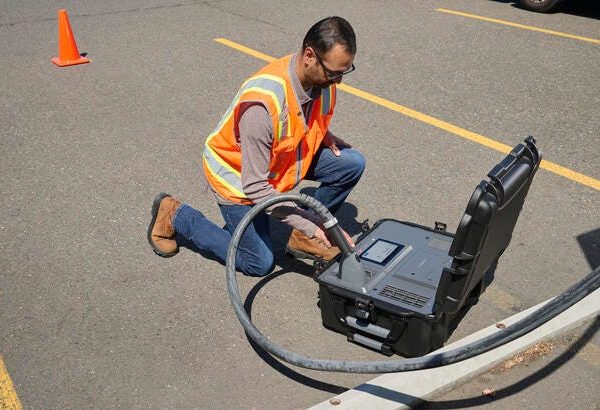

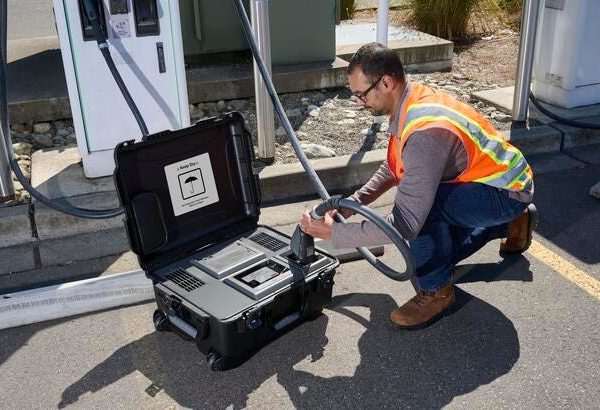

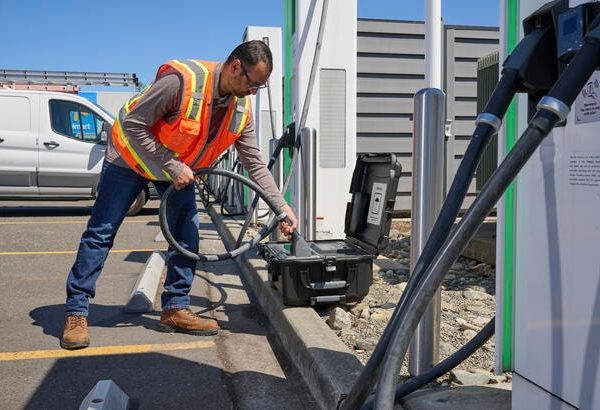

Commissioning of new CCS fast charging stations is the most common application for the Fluke FLK-FEV500/CCS2. Before a charging station becomes operational, installers must prove that the pilot communication circuit, insulation barriers, and load characteristics all perform within specified limits. The instrument’s ability to simulate CP high, CP low, and duty cycle parameters makes it ideal for validating ISO 15118 communication compliance. During routine maintenance, technicians use the FLK-FEV500/CCS2 to quickly identify degraded insulation, faulty pilot signals, or cable integrity issues that could pose safety risks to EV drivers.

Field service teams responding to customer complaints about charging failures find the device indispensable for rapid diagnostics. The load test function, which measures voltage, current, power, and duration, helps determine whether a charging station is delivering expected power levels or experiencing component degradation. The residual voltage test ensures that no dangerous voltage remains in the cable after disconnection, a critical safety feature for public charging locations.

Why Buy Fluke FLK-FEV500/CCS2 from Mohammad Mahdi Electronics?

Mohammad Mahdi Electronics is MME for Fluke test and measurement equipment in the UAE, providing customers with genuine products backed by full manufacturer warranty. When you purchase the Fluke FLK-FEV500/CCS2 from MME, you receive authentic equipment with complete calibration certificates and access to Fluke’s global support network. The mme-ae team provides expert pre-sales consultation to help you select the right testing solution for your specific EV charging project requirements. Fast shipping across the UAE ensures that your testing timeline remains on schedule, while competitive pricing makes high-quality compliance testing accessible to businesses of all sizes.

Choosing Mohammad Mahdi Electronics means you benefit from technical expertise that extends beyond simple retail. Our team understands the complexities of EV charging infrastructure and can provide guidance on test procedures, standard compliance, and equipment selection. We maintain strict inventory controls to ensure that every Fluke instrument we ship is genuine, properly packaged, and ready for immediate use upon arrival.

Fluke FLK-FEV500/CCS2 Specifications
