Description

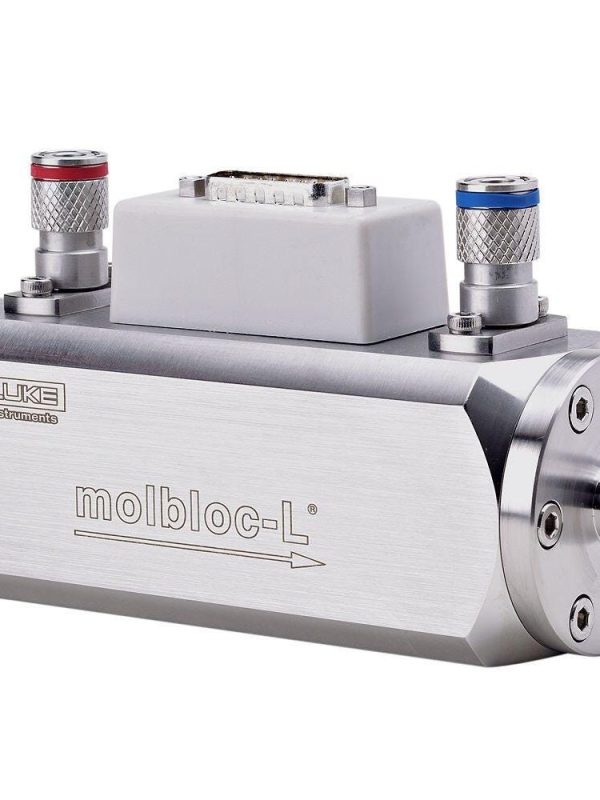

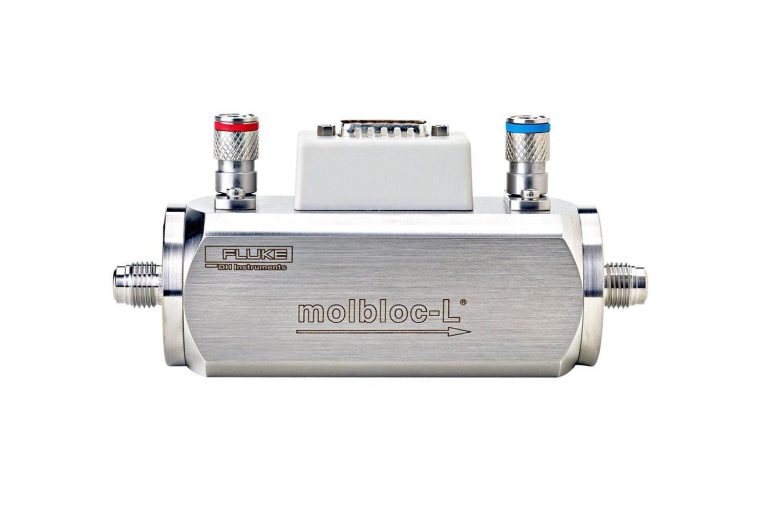

The Fluke molbloc-L Laminar Flow Element is a highly accurate and reliable solution for measuring laminar flow in various applications. With its high precision and stability, it provides reliable performance in harsh environments.

Fluke molbloc-L Key Features

The molbloc-L features a measurement update rate of 1 second, a range of 0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type, and a resolution of 0.0015 % FS.

Measurement Update Rate: 1 second
Range: 0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type
Resolution: 0.0015 % FS
Linearity: ± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Repeatability: ± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Precision: ± 0.07 % of reading from 10 to 100 % FS, ± 0.007 % FS under 10 % FS
Stability: ± 0.09 % of reading from 10 to 100 % FS, ± 0.009 % FS under 10 % FS
Measurement Uncertainty: ± 0.2 % of reading from 10 to 100 % FS, ± 0.02 % FS under 10 % FS

Who Needs the Fluke molbloc-L?

The Fluke molbloc-L is designed for use in various applications where accurate measurement of laminar flow is required. This includes industries such as oil and gas, chemical processing, and power generation.

Fluke molbloc-L Applications

Use in oil and gas applications to measure flow rates in pipelines and process equipment.
Use in chemical processing applications to measure flow rates in reactors and process vessels.
Use in power generation applications to measure flow rates in turbines and generators.
Use in research and development applications to measure flow rates in laboratory equipment.
Use in other industrial applications where accurate measurement of laminar flow is required.

Why Buy the Fluke molbloc-L from mme-ae?

The Fluke molbloc-L is a high-quality product that is designed to provide accurate and reliable measurement of laminar flow. By purchasing the Fluke molbloc-L from mme-ae, you can be confident that you are getting a product that meets your needs and exceeds your expectations.

Fluke molbloc-L Specifications

Specifications – Standard molbloc-L Calibrations – Used with molbox1+ and molbox2 terminals
Measurement Update Rate	1 second
Range	0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type (see Section 1.2.5.1.3)
Resolution	0.0015 % FS
Linearity	± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Repeatability	± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Precision¹	± 0.07 % of reading from 10 to 100 % FS, ± 0.007 % FS under 10 % FS
Stability² (1 year)	± 0.09 % of reading from 10 to 100 % FS, ± 0.009 % FS under 10 % FS
Measurement Uncertainty³	± 0.2 % of reading from 10 to 100 % FS, ± 0.02 % FS under 10 % FS
(N2 and any molbox1+ supported gas for which the molbloc in use is calibrated)	1E5 molbloc ± 0.5% of reading from 25 to 100 % FS, ± 0.125 % FS under 25 % FS
¹ Precision: Combined linearity, hysteresis, repeatability. ² Stability: Maximum change in zero and span over specified time period for typical molbox1+ and molbloc used under typical conditions. As stability can only be predicted, stability for a specific molbloc and molbox1+ should be established from experience. ³ Measurement uncertainty (accuracy): Maximum deviation of the molbox1+ flow indication from the true value of the flow through the molbloc including precision, stability and Fluke calibration standard measurement uncertainty.
