Description

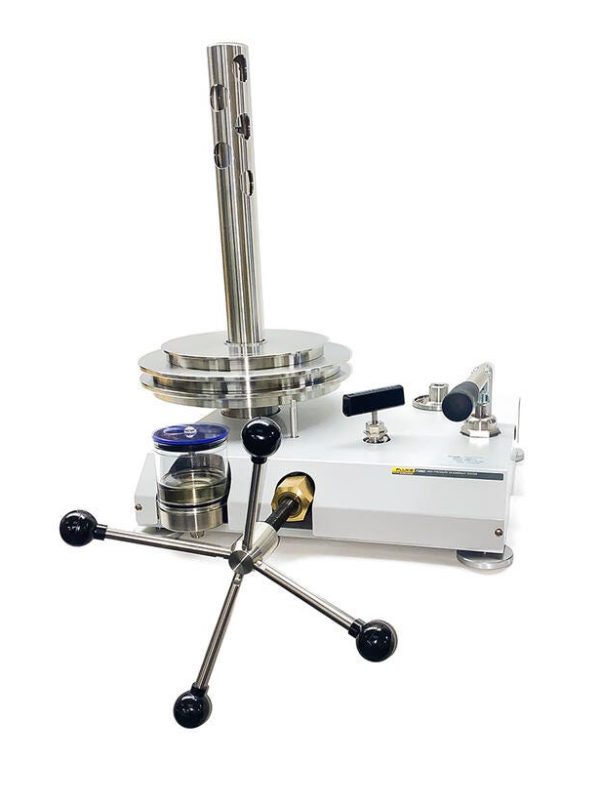

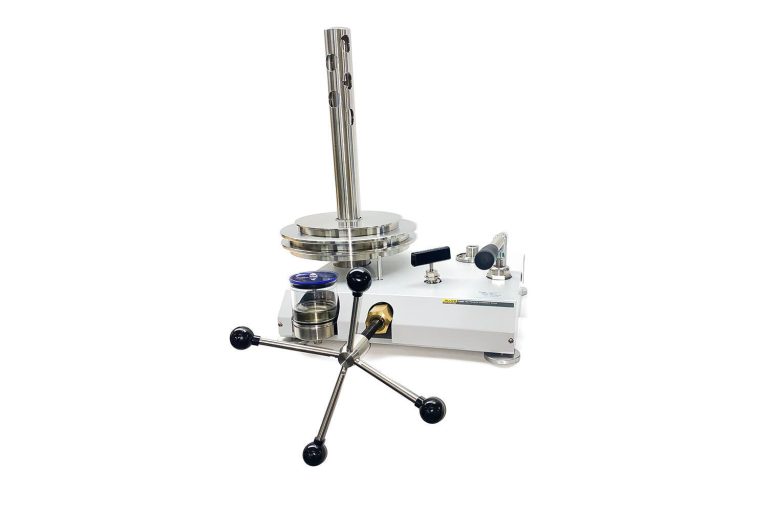

The P3100 HP Series is a very high-pressure hydraulic deadweight tester designed for precise measurements in demanding applications. With its robust construction and advanced features, this tester is ideal for industries that require accurate and reliable results.

Fluke Key Features

The P3100 HP Series offers a range of key features that make it an ideal choice for high-pressure applications.

Test port adaptors: DH500, equivalent to HiP 60-xxxx high pressure fittings (60,000 psi) for 1/4” and 3/8” tube sizes
Weight: 23 lbs (10.5 kg)
Dimensions (W x D x H): 18” x 20” x 20” (457 mm x 508 mm x 508 mm)
Mass set weight: 100 lbs (45.5 kg)
Reservoir volume: 150 cc
Priming pump: Included with Standard 3117, 3118 and 3119 models
Minimum weight increments: 2 bar, 0.2 MPa, 20 psi
Optional fine increment weights: Minimum increments of 0.2 bar, 0.02 MPa, 2 psi
Seal materials: Viton and Buna
Operating fluid: Sebacate, our reference 3069551 (1 gallon standard)
Shipping: Ships as a pallet and a crate

Who Needs the Fluke P3100 HP Series?

The P3100 HP Series is designed for industries that require precise and reliable measurements in high-pressure applications. This includes oil and gas, aerospace, and other industries that demand accuracy and reliability.

Fluke Applications

Pressure calibration for high-pressure applications
Hydraulic system testing for precise measurements
Pressure testing for industrial equipment
Calibration for high-pressure instruments
Research and development for new products and technologies
Quality control for industrial processes

Why Buy the Fluke P3100 HP Series from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the P3100 HP Series from Fluke, a leading manufacturer of high-quality measurement and calibration equipment. Our team of experts is dedicated to providing exceptional customer service and support to ensure that you get the right equipment for your needs.

Fluke Specifications

General Specifications
Test port adaptors	DH500, equivalent to HiP 60-xxxx high pressure fittings (60,000 psi) for 1/4” and 3/8” tube sizes
Weight	23 lbs (10.5 kg)
Dimensions (W x D x H)	18” x 20” x 20” (457 mm x 508 mm x 508 mm)
Mass set weight	100 lbs (45.5 kg)
Reservoir volume	150 cc
Priming pump	Included with Standard 3117, 3118 and 3119 models
Minimum weight increments	2 bar, 0.2 MPa, 20 psi
Optional fine increment weights	Minimum increments of 0.2 bar, 0.02 MPa, 2 psi
Seal materials	Viton and Buna
Operating fluid	Sebacate, our reference 3069551 (1 gallon standard)
Shipping	Ships as a pallet and a crate
