Description

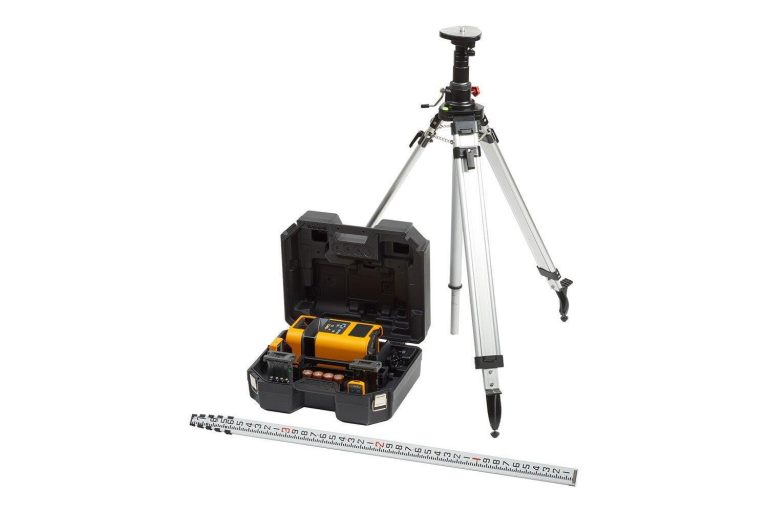

The Fluke PLS HV2R KIT is a manual slope red rotary laser kit designed for accurate leveling and alignment in various applications. This kit includes the PLS XLD Rotary Laser Detector, which extends the working range to up to 300 m.

Fluke PLS HV2R KIT Key Features

The Fluke PLS HV2R KIT features a Class II red laser with horizontal and vertical axis, providing accurate and reliable results. The kit also includes a manual slope range of ± 5-degrees and an auto-leveling range of ± 5-degrees.

Accuracy: ≤ 2.2 mm @ 30 m
Working Range: up to 300 m with XLD laser detector
Weight: 3 kg (6.6 lb)
Dimensions: 135 mm x 69 mm x 25 mm
IP Rating: IP67
Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
Battery Life: > 60 hours

Who Needs the Fluke PLS HV2R KIT?

The Fluke PLS HV2R KIT is designed for professionals who require accurate leveling and alignment in various applications, including construction, surveying, and engineering.

Fluke PLS HV2R KIT Applications

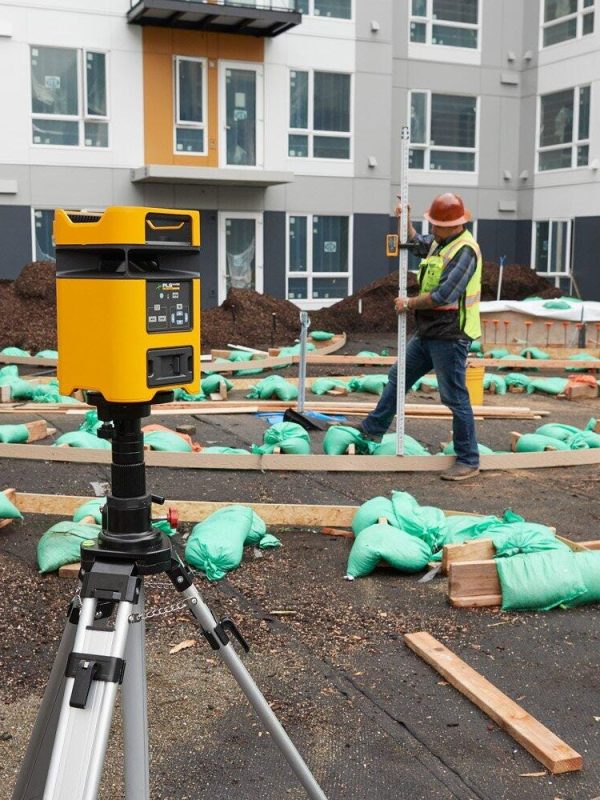

Construction: Ensure accurate leveling and alignment of buildings and structures
Surveying: Conduct precise measurements and surveys
Engineering: Align and level equipment and machinery
Landscaping: Create precise and even surfaces
Roofing: Ensure accurate leveling and alignment of roofs
Tile Installation: Align and level tiles for precise installation

Why Buy Fluke PLS HV2R KIT from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke PLS HV2R KIT at competitive prices, along with excellent customer service and support. Our team of experts is always available to assist you with any questions or concerns you may have.

Fluke PLS HV2R KIT Specifications

Rotary levels		PLS HV2R	PLS HV2G
Accessories		PLS XLD Rotary Laser Detector
Electromagnetic compatibility (EMC)
Laser		Class II red	Class II green
Laser axis		Horizontal and Vertical	Horizontal and vertical
Accuracy		≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)	≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
Auto-leveling range		± 5-degrees	± 5-degrees
Manual slope range		± 5-degrees	± 5-degrees
Working range
Without XLD laser detector		≤ 30 m (100 ft)	≤ 30 m (100 ft)
With XLD laser detector		≤ 300 m (1000 ft)	≤ 300 m (1000 ft)
Weight		3 kg (6.6 lb)	3 kg (6.6 lb)
Drop test		1 m	1 m
IP rating		IP67	IP67
Operating temperature		-20 °C to 50 °C (-4 °F to 122 °F)	-20 °C to 50 °C (-4 °F to 122 °F)
Battery		4 x D Alkaline or NiMH rechargeable	4 x D Alkaline or NiMH rechargeable
Battery life		> 60 hours	> 60 hours
Working range		300m (1000 ft)
Dimensions		135 mm x 69 mm x 25 mm
Weight		0.19 kg (0.42 lbs)
Drop test		1 m
IP rating		IP67
Operating temperature		-20 °C to 50 °C (-4 °F to 122 °F)
Battery		1 x AA Alkaline
Battery life		> 50 hours
Visible spectrum		450 nm – 800 nm
Accuracy
Fine		1 mm (0.05 in)
Medium		2 mm (0.1 in)
Coarse		5 mm (0.2 in)
International	IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
Korea (KCC)	Class B Equipment (Broadcast communications equipment for home)
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Datasheet

PLS HV2R KIT, Manual Slope Red Rotary Laser Kit | Data sheetsPDF

User Manual

Official user manualPDF
