Description

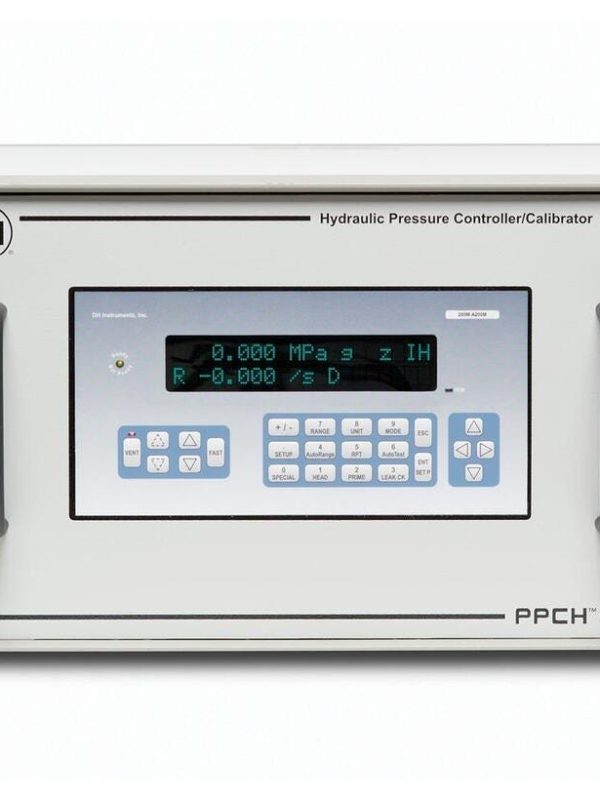

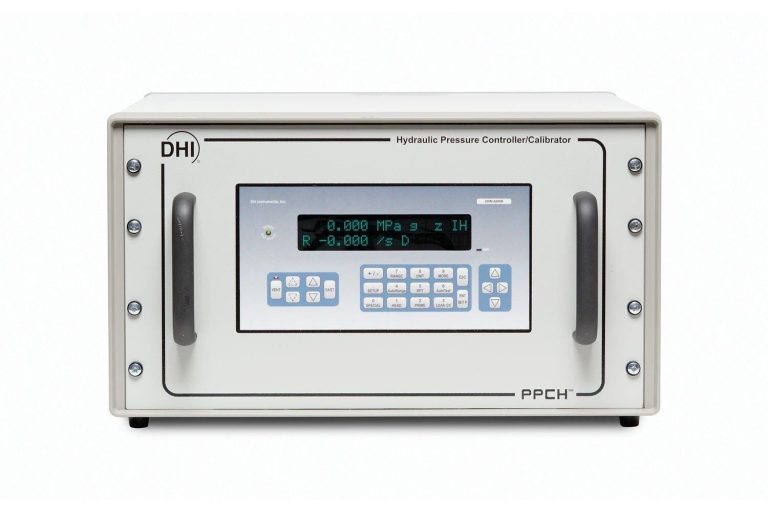

The Fluke PPCH Automated Pressure Controller / Calibrator is designed to provide precise pressure control and calibration for a variety of applications. With its wide pressure range of atmosphere to 200 MPa (30,000 psi), this device is ideal for use in industries such as oil and gas, aerospace, and manufacturing.

Key features of the PPCH include its RS232 and IEEE-488.2 communication ports, allowing for seamless integration with other systems. The device is also available in a 6U H rack mount version, making it easy to install in a variety of settings.

Fluke Key Features

The Fluke PPCH Automated Pressure Controller / Calibrator offers a range of features that make it an ideal choice for precise pressure control and calibration. Some of the key features include:

Power Requirements: 85 to 264 VAC, 50/60 Hz, 75 W max
Normal Operating Temperature Range: 15 to 35 °C
Vibration: Meets MIL-T-28800D
Weight (Typical): 50 kg approx (110 lb)
Dimensions: 30 cm H x 52 cm W x 50 cm D (12 in. x 20.5 in. x 20 in.) with enclosure
Communications Ports: RS232 (COM1, COM2), IEEE-488.2
Operating Modes: Gauge, absolute
Pressure Ranges: Atmosphere to 200 MPa (30,000 psi)
Operating Media: Sebacate oil standard, others optional
Internal Reservoir Volume: 250 cc, external unlimited
Drive Air Supply: 70M – 500 kPa (75 psi), 300 l/m (10cfm)

Who Needs the Fluke PPCH?

The Fluke PPCH Automated Pressure Controller / Calibrator is designed for use in a variety of industries, including oil and gas, aerospace, and manufacturing. It is ideal for technicians and engineers who require precise pressure control and calibration for their applications.

Fluke Applications

Use in oil and gas industry for pressure control and calibration
Use in aerospace industry for pressure testing and calibration
Use in manufacturing industry for precision pressure control and calibration
Use in research and development for pressure testing and calibration
Use in calibration laboratories for pressure calibration and testing

Why Buy Fluke PPCH from mme-ae?

The Fluke PPCH Automated Pressure Controller / Calibrator is a high-quality device that is designed to provide precise pressure control and calibration. When you buy from mme-ae, you can be confident that you are getting a reliable and accurate device that will meet your needs.

Fluke Specifications

PPCH General Specifications
Power Requirements	85 to 264 VAC, 50/60 Hz, 75 W max
Normal Operating Temperature Range	15 to 35 °C
Vibration	Meets MIL-T-28800D
Weight (Typical)	50 kg approx (110 lb)
Dimensions	30 cm H x 52 cm W x 50 cm D (12 in. x 20.5 in. x 20 in.) with enclosure 6U H rack mount version
Communications Ports	RS232 (COM1, COM2), IEEE-488.2
Operating Modes	Gauge, absolute
Pressure Ranges	Atmosphere to 200 MPa (30,000 psi)
Operating Media	Sebacate oil standard. Others optional (consult Fluke Calibration)
Internal Reservoir Volume	250 cc (external unlimited)
Drive Air Supply	70M – 500 kPa (75 psi), 300 l/m (10cfm) 140M – 500 kPa (75 psi), 450 l/m (15cfm) 100M – 700 kPa (100 psi), 300 l/m (10cfm) 200M – 700 kPa (100 psi), 450 l/m (15cfm)
Pressure Connections	DRIVE AIR SUPPLY 1/8 in. NPT F TEST DH500 (equivalent to AE F250C, HIP HF4)
Utility Sensor	Precision/Resolution ± 0.10 % span / 0.001 % span
Drivers	(8) 12V, 1 A max total output
CE Conformance	Available, must be specified
