Description

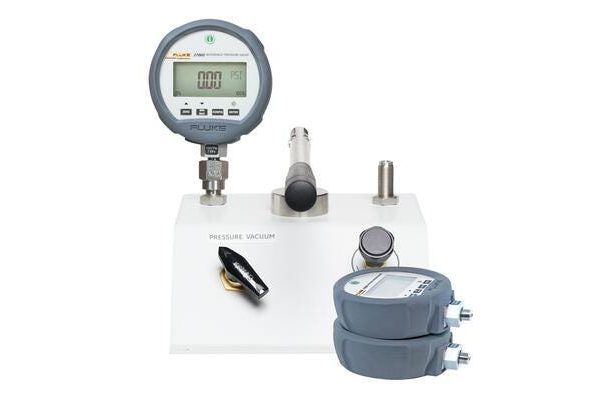

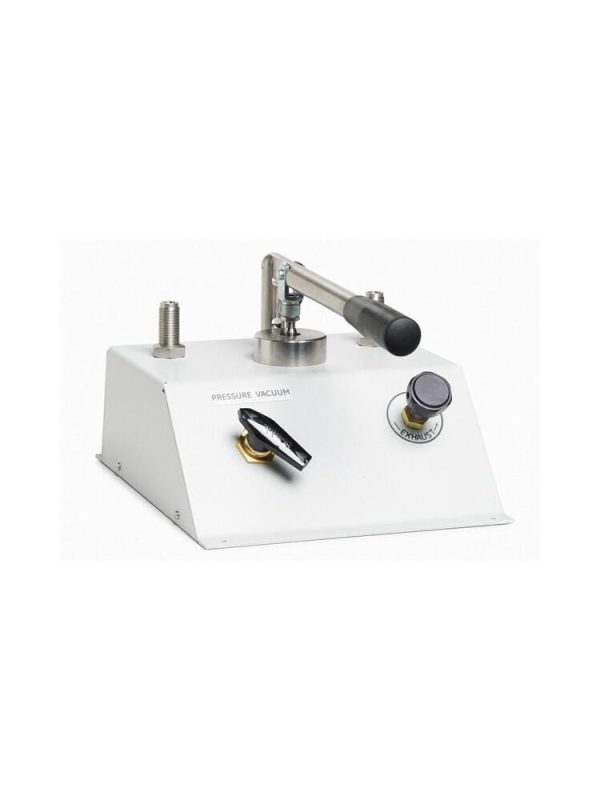

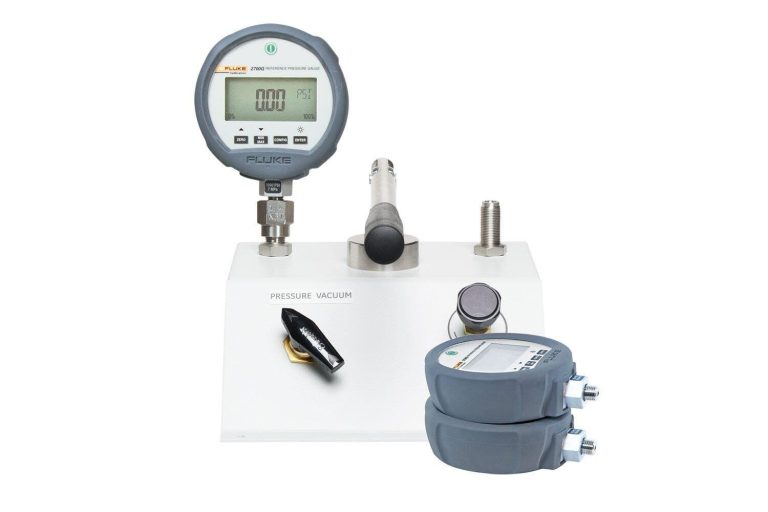

The Fluke P5510-2700G and P5513-2700G Pneumatic Pressure Calibrators are designed to provide accurate and reliable measurements for pressure and vacuum ranges in industrial applications. With their wide range of media compatibility, these calibrators are perfect for calibration of pressure instruments.

Available from mme-ae, these calibrators are built to last with a compact and durable design that makes them easy to use and maintain.

Fluke P5510-2700G Key Features

The Fluke P5510-2700G Pneumatic Pressure Calibrator offers a range of key features, including:

Range: -12 to 300 psi (-80 kPa to 2 MPa)
Pressure: ±0.02 psi (±0.14 kPa)
Vacuum: ±0.05 psi (±0.35 kPa)
Media compatibility: Any clean, dry non-corrosive gas
Test Port Adapters: (2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP
Instrument Size: 9.5x 13 x 7 in (240 x 330 x 180 mm)
Instrument Weight: 7.5 lb (3.5 kg)

Who Needs the Fluke P5510-2700G?

The Fluke P5510-2700G Pneumatic Pressure Calibrator is designed for use in a variety of industrial applications, including:

Calibration of pressure instruments

Measurement of pressure and vacuum ranges

Testing and validation of pressure instruments

Fluke P5510-2700G Applications

Calibration of pressure instruments in industrial settings
Measurement of pressure and vacuum ranges in laboratory settings
Testing and validation of pressure instruments in manufacturing settings
Calibration of pressure instruments in aerospace settings
Measurement of pressure and vacuum ranges in medical settings

Why Buy Fluke P5510-2700G from MME?

The Fluke P5510-2700G Pneumatic Pressure Calibrator is available from MME, a leading supplier of industrial calibration equipment. With their wide range of products and excellent customer service, MME is the perfect choice for all your calibration needs.

Fluke P5510-2700G Specifications

Calibrator Model	Range	1 Year Specification
P5510-2700G-1	-12 to 300 psi (-80 kPa to 2 MPa)	Pressure: ±0.06 psi (±0.4 kPa) Vacuum: ±0.15 psi (±1 kPa)
P5510-2700G-3	-12 to 300 psi (-80 kPa to 2 MPa)	Pressure: ±0.06 psi (±0.4 kPa) Vacuum: ±0.15 psi (±1 kPa)
	-12 to 100 psi (-80 kPa to 700 kPa)	Pressure: ±0.02 psi (±0.14 kPa) Vacuum: ±0.05 psi (±0.35 kPa)
	-15 to 15 psi (-100 kPa to 100 kPa)	Pressure: ±0.003 psi (±0.02 kPa) Vacuum: ±0.0075 psi (±0.05 kPa)
P5513-2700G-1	0 to 3 000 psi (0 to 20 MPa)	Pressure: ±0.6 psi (±0.004 MPa)
P5513-2700G-3	0 to 3 000 psi (0 to 20 MPa)	Pressure: ±0.6 psi (±0.004 MPa)
	-12 to 1 000 psi (-80 Kpa to 7 MPa)	Pressure: ±0.2 psi (±0.0014 MPa) Vacuum: ±0.5 psi (±3.5 kPa)
	-12 to 1000 psi (-80 kPa to 7 MPa)	Pressure: ±0.02 psi (±0.14 kPa) Vacuum: ±0.05 psi (±0.35 kPa)
Media compatibility: Note 1: Any clean, dry non-corrosive gas Note 2: Any liquids or gases compatible with 316 stainless steel Note 3: Any non-flamable, non-toxic, non-explosive, non-oxidizing liquid or gas compatiable with 316 stainless steel
Specifications for P5510-2700G
Pressure Range	0 to 300 psi (20 bar)
Test Port Adapters	(2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP
Instrument Size (W x D x H)	9.5x 13 x 7 in (240 x 330 x 180 mm)
Instrument Weight	7.5 lb (3.5 kg)
Vacuum Range	0 to 24 inHg (800 mbar)
Specifications for P5513-2700G
Pressure Range	0 to 3000 psi (210 bar)
Test Port Adapters	(2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP
Instrument Size (W x D x H)	17.5 x 12 x 8.5 in (440 x 300 x 215 mm)
Instrument weight	17 lb (8 kg)
Gas Supply Connection	1/4 NPT female
