Description

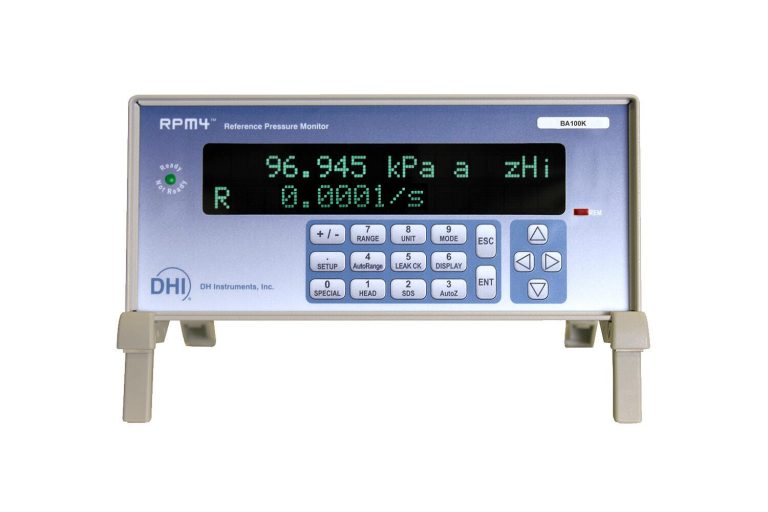

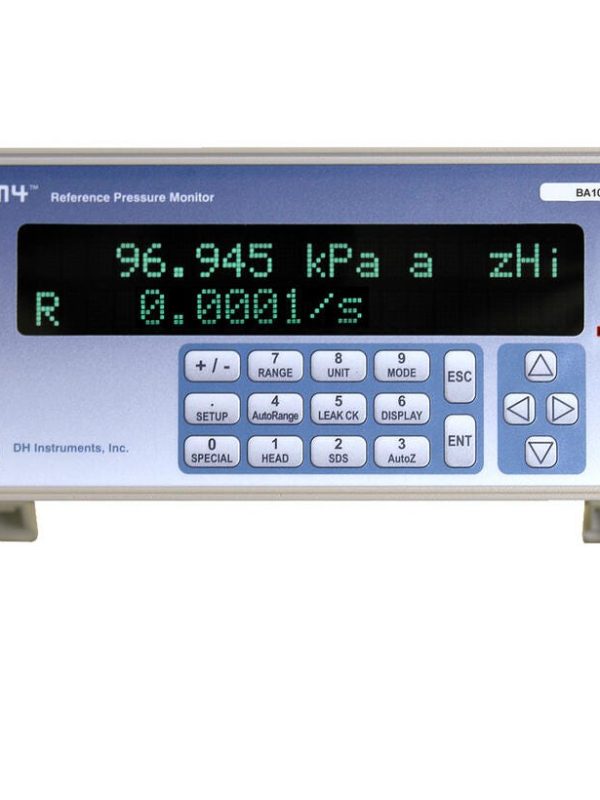

The Fluke RPM4 BA100K Reference Pressure Barometer is designed for industrial applications where high precision is required. This barometer measures pressure range of 70 kPa to 110 kPa, making it ideal for various industries such as oil and gas, chemical processing, and power generation.

With its robust design and user-friendly interface, the RPM4 BA100K is easy to operate and maintain. It features a range of specifications, including a resolution of to 1 ppm, user adjustable, and an operating temperature of 15 °C to 35 °C.

Fluke Key Features

The RPM4 BA100K Reference Pressure Barometer offers a range of key features, including:

Range: 70 kPa to 110 kPa (10 psia to 16 psia)
Power requirements: 85 V ac to 264 V ac, 50/60 Hz; 12 V dc, 1.2 A (battery)
Weight: 5 kg (11 lb)
Dimensions: 10 cm x 22.7 cm x 24 cm
Test port connections: 1/8 in NPT F
Communications ports: RS232 (COM1, COM2), IEEE-488.2
Resolution: To 1 ppm, user adjustable
Operating temperature: 15 °C to 35 °C (59 °F to 95 °F)

Who Needs the Fluke RPM4 BA100K?

The RPM4 BA100K Reference Pressure Barometer is designed for technicians, engineers, and buyers who require high-precision pressure measurement in industrial applications. Its robust design and user-friendly interface make it ideal for use in various industries, including oil and gas, chemical processing, and power generation.

Fluke Applications

Use in oil and gas industry for pressure measurement in pipelines and tanks
Use in chemical processing industry for pressure measurement in reactors and vessels
Use in power generation industry for pressure measurement in turbines and compressors
Use in research and development for pressure measurement in laboratory settings
Use in calibration laboratories for pressure measurement calibration

Why Buy Fluke RPM4 BA100K from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the RPM4 BA100K Reference Pressure Barometer from Fluke, a leading manufacturer of high-precision measurement instruments. Our team of experts is dedicated to providing exceptional customer service and support to ensure that you receive the best possible experience with your purchase.

Fluke Specifications

	RPM4 BA100K (Single Channel)	RPM4 BA100K/BA100K (Dual Channel)
Range	70 kPa to 110 kPa (10 psia to 16 psia)
Power requirements	85 V ac to 264 V ac, 50/60 Hz; 12 V dc, 1.2 A (battery)
Weight	5 kg (11 lb)
Dimensions (H x W x D)	10 cm x 22.7 cm x 24 cm (3.9 in. x 8.9 in. x 9.5 in.)
Test port connections	1/8 in NPT F
Communications ports	RS232 (COM1, COM2), IEEE-488.2 Resolution To 1 ppm, user adjustable To 1 ppm, user
Resolution	To 1 ppm, user adjustable
Operating temperature	15 °C to 35 °C (59 °F to 95 °F)
Warm up time	30 minute temperature stabilization recommended from cold power up
Vibration	Meets MIL-T-28800D
Predicted Stability1	± 0.005 % of reading	± 0.0032 % of reading
Precision2	± 0.008 % of reading	± 0.006 % of reading
Measurement Uncertainty3	± 0.01 % of reading	± 0.008 % of reading
¹Predicted Q-RPT measurement stability limit (k=2) over one year assuming regular use of AutoZero function. AutoZero is performed by the operator by comparison with a barometric reference in absol mode. Absolute mode predicted one year stability without AutoZ is: Single Channel ± (5 Pa + 0.005 % of reading), D Channel ± (4 Pa + 0.0032 % of reading). ²Combined linearity, hysteresis, repeatability. ³Maximum deviation of the Q-RPT indication from the true value of applied spressure including precision, predicted one year stability limit, temperature effect and calibration uncertainty, combined and expanded (k=2) following the ISO “Guide to the Expression of Uncertainty in Measurement.”

Datasheet

Datasheet (PDF)PDF
