Fluke T6-1000 PRO Electrical Tester

Key Features

  • Save time by seeing voltage and current measurements at the same time
  • Visual Continuity™ – the screen automatically turns green for continuity, perfect when it’s too loud to hear the beeper
  • FieldSense™ technology for ac voltage, current, and frequency, all without making electrical contact to live voltage
(1 customer review)
SKU: 312

Call for Price

We are not Supporting COD Payments Terms Outside UAE

11 People watching this product now!

Fluke T6-1000 PRO Electrical Tester

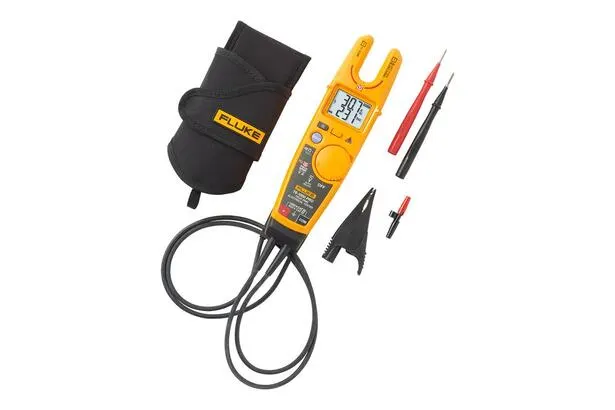

The Fluke T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to the ground with the included heavy-duty alligator clip, slide the wire into the open fork, and see both voltage and current at the same time.

To buy Fluke T6-1000 pro and get more specs about the price of it you can contact us through MME.At MMElectronics, we strive to provide exceptional customer service. Our expert team is ready to assist you in selecting the right voltage detector for your application.

Comparing Fluke T6-1000 pro with Fluke T6-1000

  • Measurement Functions: Both the Fluke T6-1000 and T6-1000 Pro offer non-contact voltage measurements, allowing users to detect live AC voltage without making direct contact with the electrical conductors. However, the T6-1000 Pro also provides non-contact current measurements, enabling users to measure AC current flowing through conductors without the need for direct contact or breaking the circuit.
  • The Fluke T6-1000 Pro offers a unique feature called Workload Selection that allows users to select the type of load they are working with, such as resistive, inductive, or motor.
  • Both the Fluke T6-1000 and T6-1000 Pro are designed to be rugged and durable, suitable for use in various working conditions. They typically have safety ratings, such as CAT III or CAT IV, indicating their ability to withstand higher voltages and provide a certain level of protection for the user.

Key Features

  • Simultaneous voltage and current display–save time by seeing voltage and current measurements at the same time when troubleshooting motors, pumps, or other equipment.
  • Visual Continuity™–When checking continuity, the screen automatically turns green while the beeper is on. Perfect for those times when it’s too loud to hear the beeper, when you’re wearing ear protection, or when it’s too dark to easily read the screen. Visual Continuity takes the guesswork out of checking continuity.
  • True-rms – Accurate voltage and current measurements, even when measuring complex signals.
  • FieldSense™ technology for ac voltage, current, and frequency measurement without making electrical contact to live voltage.

Fluke T6-1000 PRO Specifications :

  • Range FieldSense ac voltage : 1000 V
  • Range FieldSense ac current: 200.0 A
  • Range FieldSense frequency (Hz): 45 Hz – 66 Hz
  • Volts ac / dc: 1000 V
  • Range Resistance: 2000 Ω
  • Dimensions : 61 mm x 259 mm x 43 mm
  • Weight: 0.35 kg (0.78 lb)
  • Temperature Operating: -10 °C to +50 °C (14 °F to 122 °F)
  • Battery : 2x AA (IEC LR6)
  • Safety General Measurement: IEC 61010-1: Pollution Degree 2
