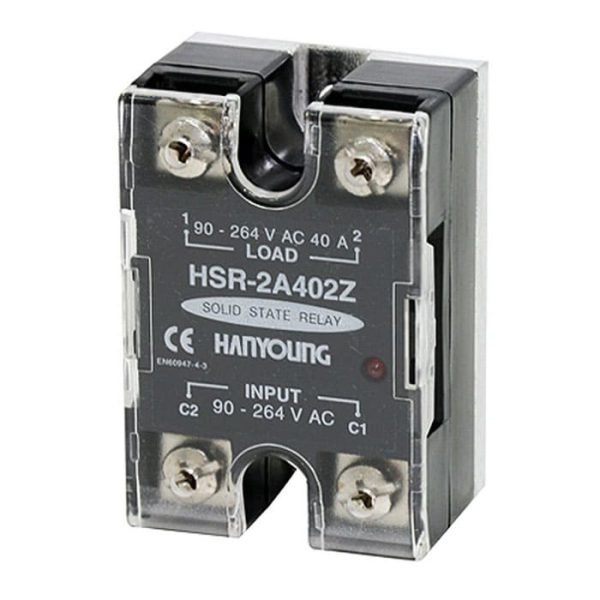

Hanyoung HSR-2A (low) single phase solid state relay

– C-R Snubber, Zero cross
– Load Voltage 100-240 V a.c
– High reliability as non contact
– High insulation between input and output
– Large capacity as compact size and light weight

Hanyoung HSR-2A (low) single phase solid state relay Specification:

• weight: Approx 150 g (included the weight of box)
• Ambient humidity: 45 ~ 85 % RH
• Ambient temperature: -20 ℃ ~ 80 ℃
• Storage temperature: -30 ℃ ~ 90 ℃
• Vibration resistance: 10 – 55 ㎐ Double amplitude : 1.5 ㎜, each X, Y and Z direction for 2 hour
• Dielectric strength: 2,500 V AC (for 1 min at 60㎐)
• Insulation resistance 500 V DC, 100 ㏁
